| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF5A-3A |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Epoxy Coated Ntc Temp Sensor,Refrigerator Ntc Temp Sensor,Epoxy Coated Ntc Thermistor |
||

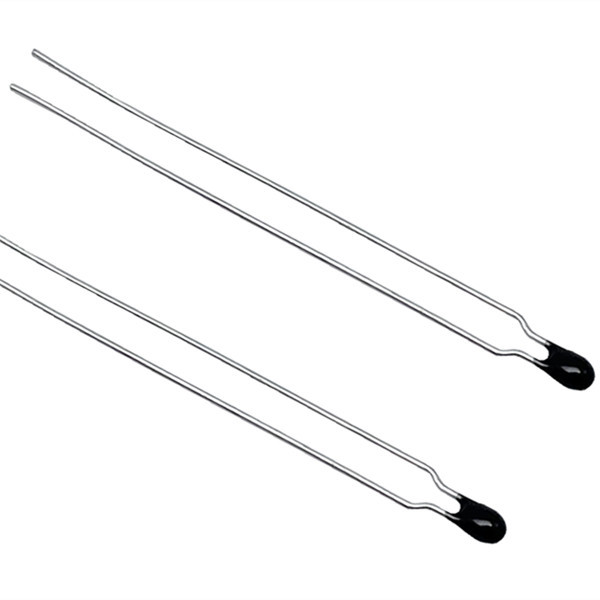

Epoxy Coated Ntc Thermistor Temp Sensor For Refrigerator And Hvac 30kohm 3964
Brief Instruction:
MF5A-3 A,R25℃=30KΩ,B25/100=3964 is composed of Copper clad steel lead wire, soldered NTC chip and epoxy resin. The sensor features: simple, functional, high accuracy. The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K.
Features:
•Comply for RoHS standard
•Miniature designed
•Good interchangeable
•Operating temperature range: -40℃~125℃
•Low cost, solid state temperature sensor
•High sensitivity to changes in temperature
•Suitable for temperature measurement, control and compensation
Application:
• Home appliance such as refrigerator, dryer, HVAC etc
• Automotive parts
Part Number Code:
Structure and Dimensions:(unit:mm)
Electrical specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) | Electrical Specification: |
| 1 | B25/85=3435 | Approx.60 | Max.2.5 | Max.20 | -40℃~125℃ | 8~36 | |
| 1.5 | B25/50=3850 | ||||||
| 1.5 | B25/50=3935 | ||||||
| 2 | B25/85=3550 | ||||||
| 2 | B25/85=3935 | ||||||
| 2.08 | B25/85=3580 | ||||||
| 2.2 | B25/50=3935 | ||||||
| 3 | B25/50=3950 | ||||||
| 5 | B25/50=3470 | ||||||
| 5 | B25/50=3950 | ||||||
| 8 | B25/100=3988 | ||||||
| 10 | B25/85=3435 | ||||||
| 10 | B25/50=3470 | ||||||
| 10 | B25/50=3935 | ||||||
| 10 | B25/50=3950 | ||||||
| 20 | B25/50=3950 | ||||||
| 47 | B25/50=3950 | ||||||
| 50 | B25/50=3950 | ||||||
| 50 | B25/50=4200 | ||||||
| 100 | B25/50=4200 | ||||||
| 200 | B25/50=4200 | ||||||
| 500 | B25/50=4450 | ||||||
| 1000 | B25/85=4600 |

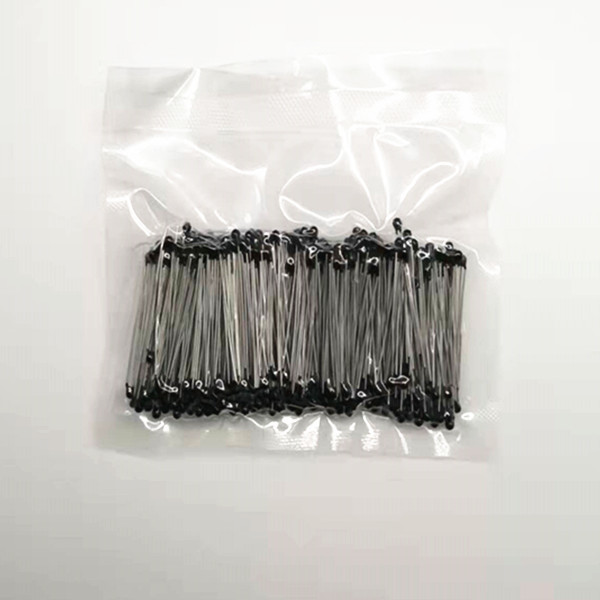

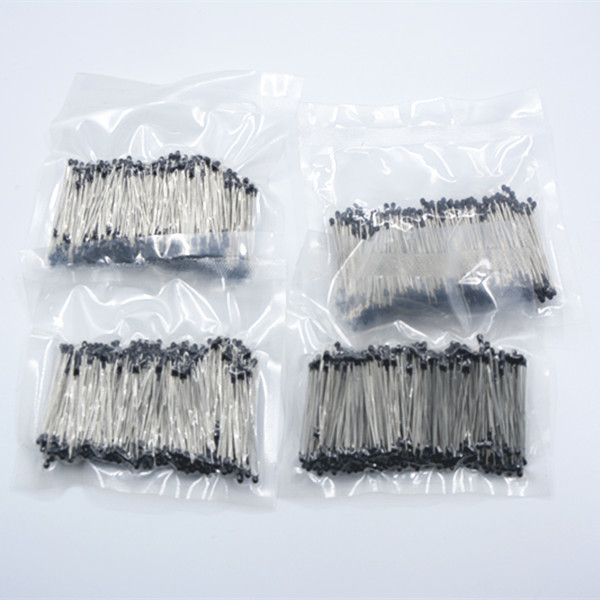

product picture:Standard packing (inner packing): 500pcs/polybag
Our product material specifications are basically customized according to customer requirements, plus the price of raw materials will fluctuate, so the price of finished products will be different. The products on display are just a list of some samples, please be sure to consult us before ordering Wangwang customer service to modify the price, or call us directly!
