| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP Sensor |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MF5A-4 |
| Minimum Order Quantity: | 10000PCS |
| Price: | 0.1-0.5USD |

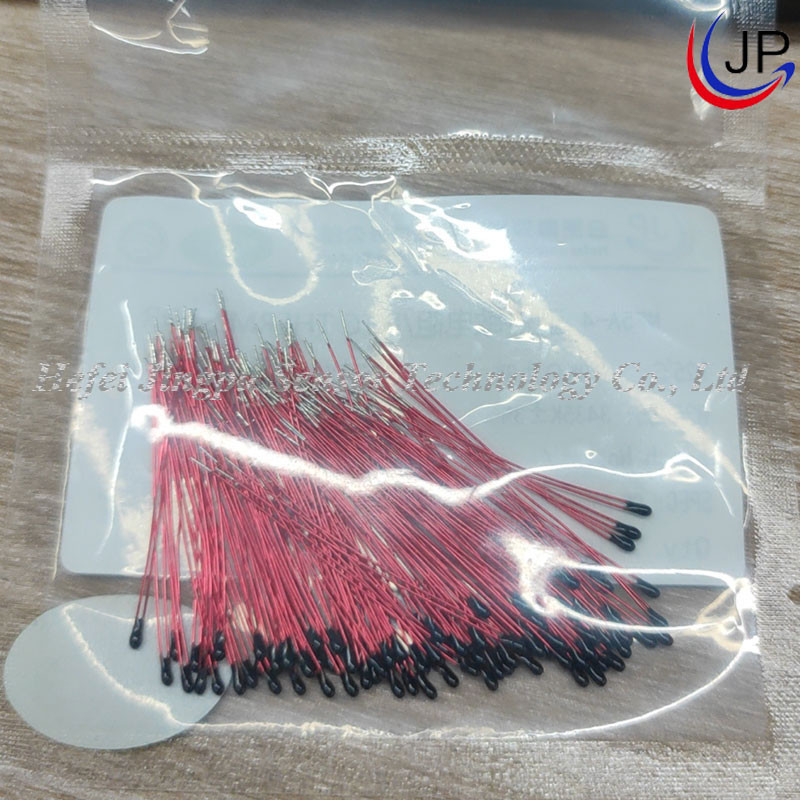

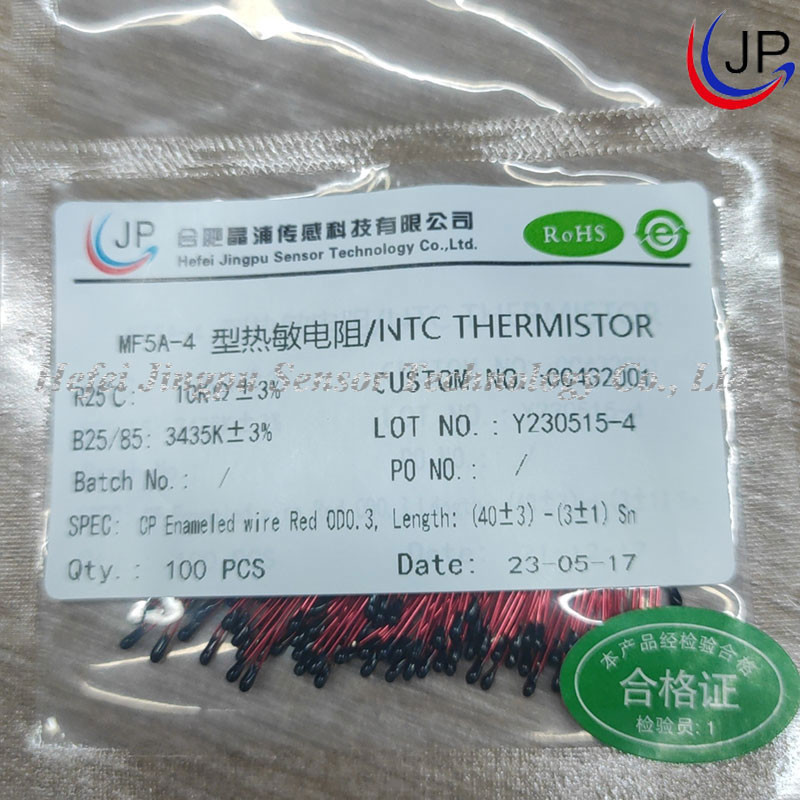

| Packaging Details: | Carton Package |
| Delivery Time: | 2-4weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000k per month |
| Resistance: | R25℃=10KΩ±3% | Beta Value: | B25/85=3435K±3% |
|---|---|---|---|
| Encapsulation: | Epoxy Resin | Operating Temperature Range: | ~20-100℃ |
| Response Time: | ≤20s （in Still Air） | Wire: | CP Enameled Wire OD0.3 |
| High Light: | Beauty Equipment NTC Thermistor,Enameled Wire NTC Thermistor,Epoxy Thermistor 3435K |
||

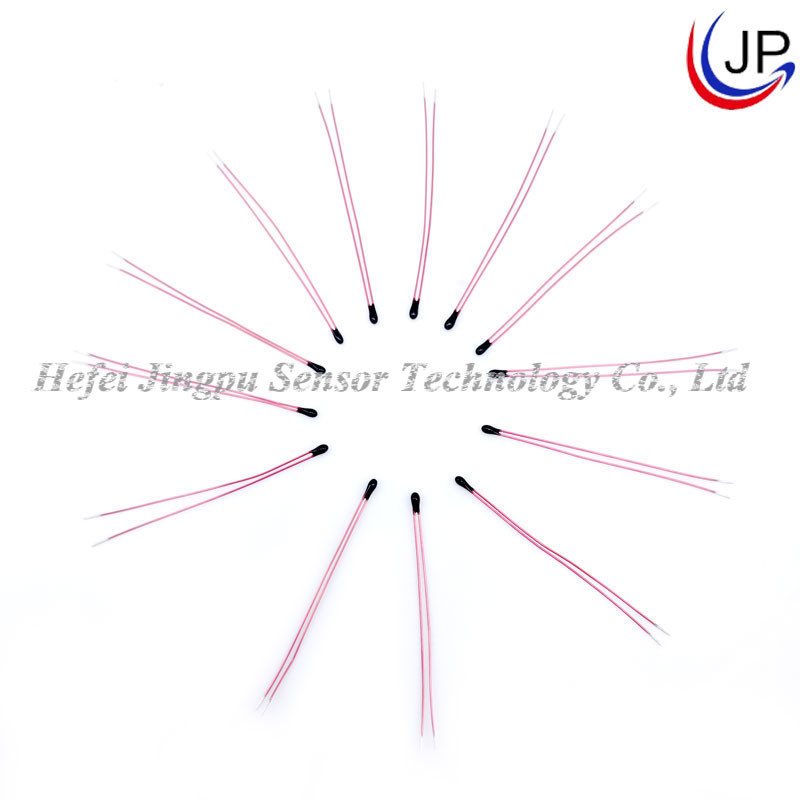

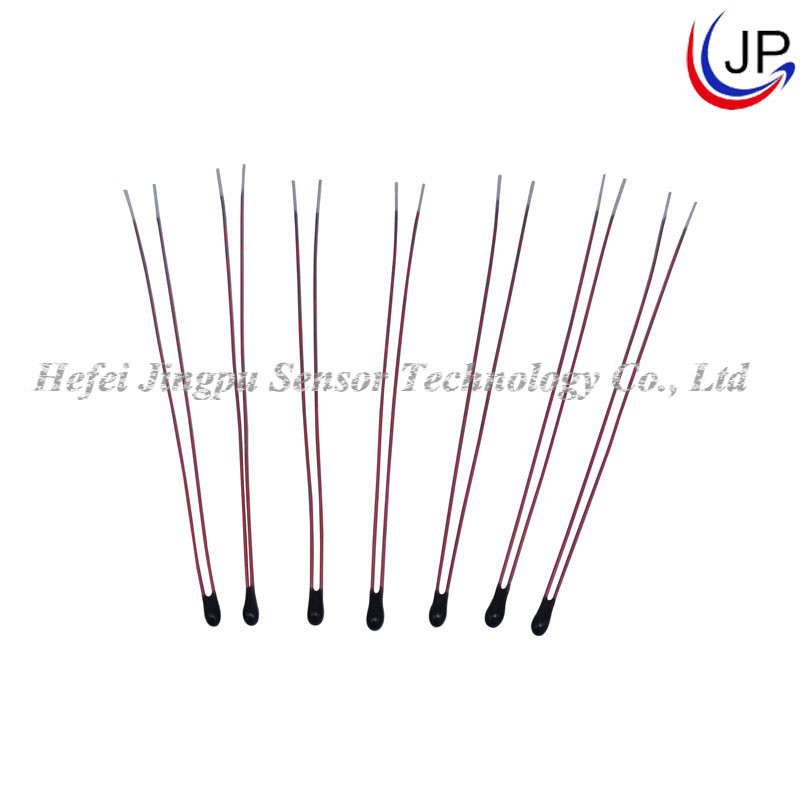

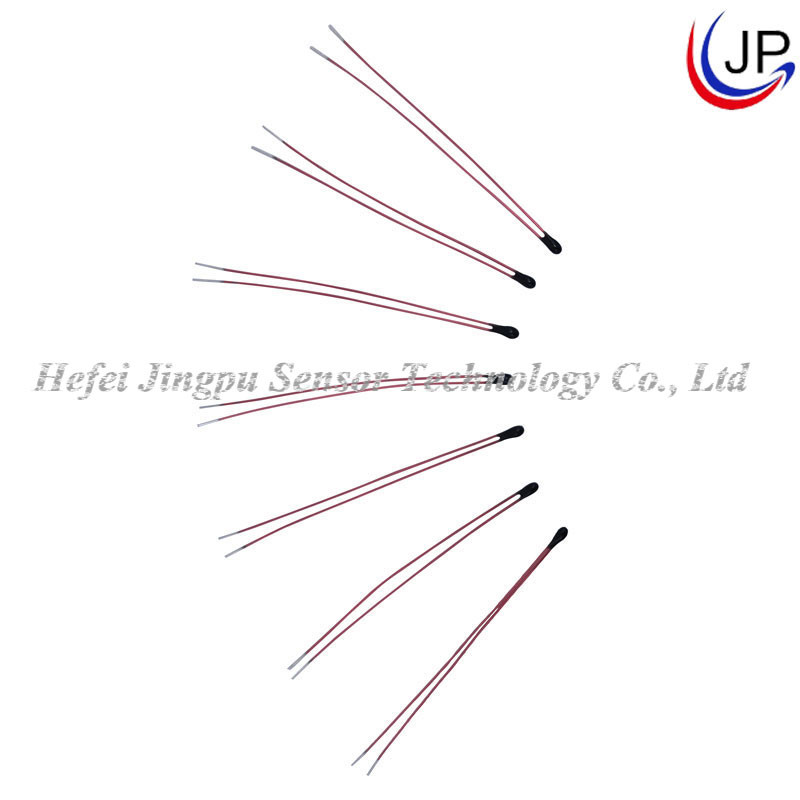

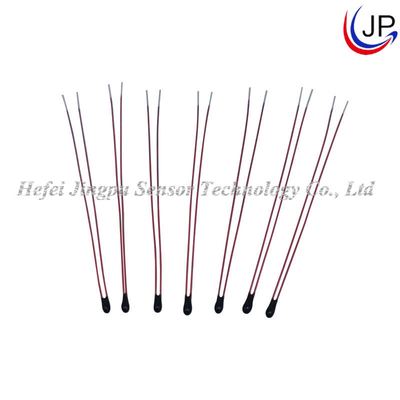

10K 3435K Enameled Wire NTC Thermistor For Beauty Equipment
Product Description:
An enameled NTC (Negative Temperature Coefficient) thermistor is a type of temperature sensor that is coated with enamel insulation. It is commonly used for temperature measurement and control in various electronic devices and systems.
The NTC thermistor is made of a semiconductor material that exhibits a decrease in electrical resistance as the temperature increases. This characteristic allows it to accurately measure and respond to changes in temperature.
The enamel coating serves as electrical insulation, protecting the thermistor from external influences and providing mechanical stability. It also helps in maintaining the accuracy and reliability of temperature measurements.
Enameled NTC thermistors are available in various sizes and shapes, and they can be easily integrated into electronic circuits. They are commonly used in applications such as temperature sensors in automotive systems, household appliances, industrial equipment, and medical devices.
Overall, enameled NTC thermistors provide a compact, reliable, and cost-effective solution for temperature sensing and control in a wide range of electronic applications.
Features:
In accordance with RoHS standard
R25℃=10KΩ±3%
B25/85=3435K±3%
Response time: ≤20s (in still air)
Dissipation factor: Approx 2.0mW/℃
Max Power: Approx 60mW
Withstand voltage: AC300V 1mA 1s in still air-no break down
Operating temperature range: -20~100℃
Encapsulation: Epoxy resin
Lead wire: CP enameled wire OD0.3
Application:
automotive systems, household appliances, industrial equipment, and medical devices
Structure and Dimensions:
Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Approx.2.5 | Approx.20 | -40-125 | 8-36 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
