| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MF5A-1 |
| Minimum Order Quantity: | 1000PCS |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-6Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000K/M |
| Resistance Value: | R25℃=10KΩ±1% | Beta Value: | B25/85=3435K±1% |
|---|---|---|---|
| Probe: | Drop≤φ2.6 Black | Wie: | Fe/Sn+MF57 |
| Length: | (11±1)-（3±1）Sn | ||
| High Light: | 3435 Firefighting NTC Thermistor,10K Firefighting NTC Thermistor,10K 3435 Firefighting NTC Thermistor |
||

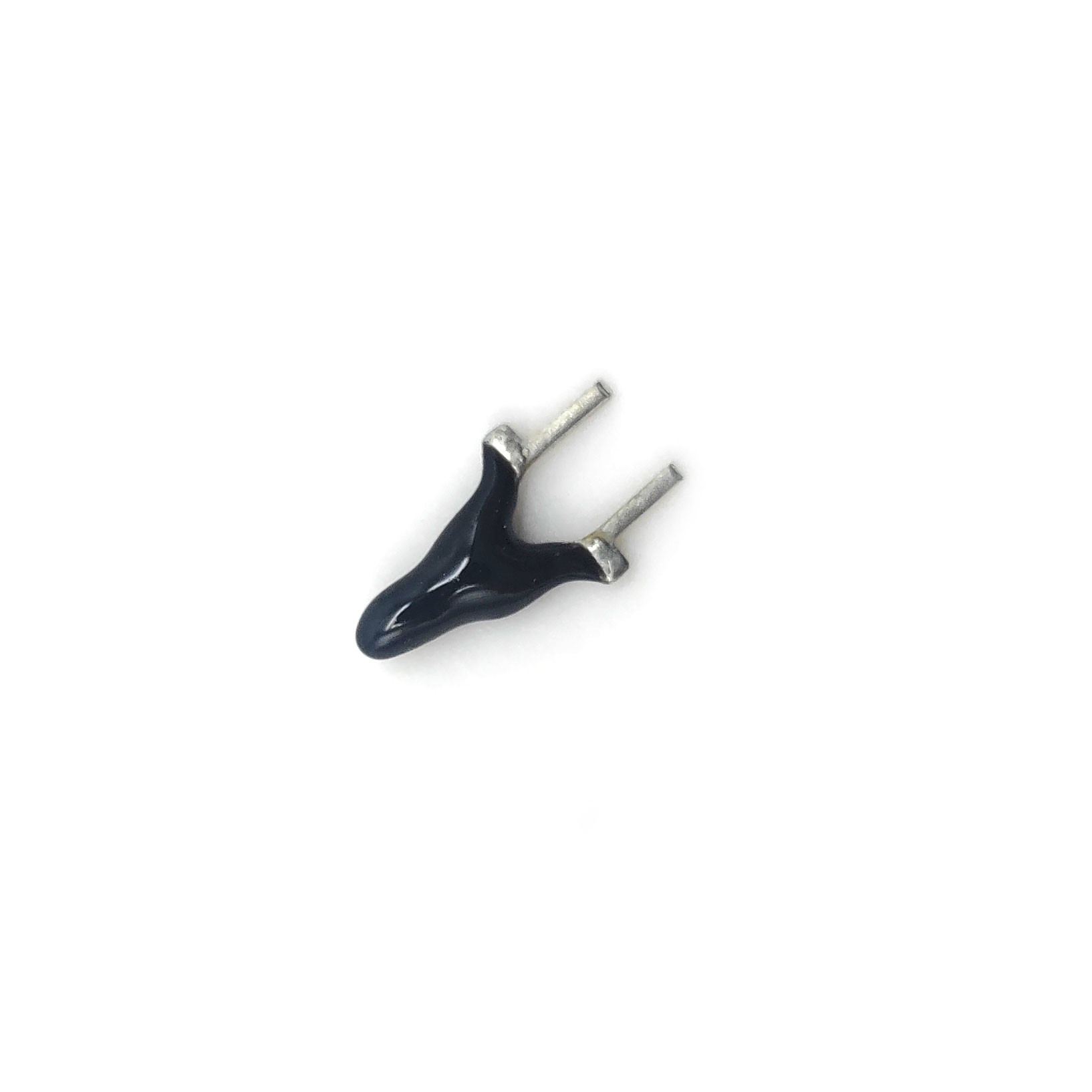

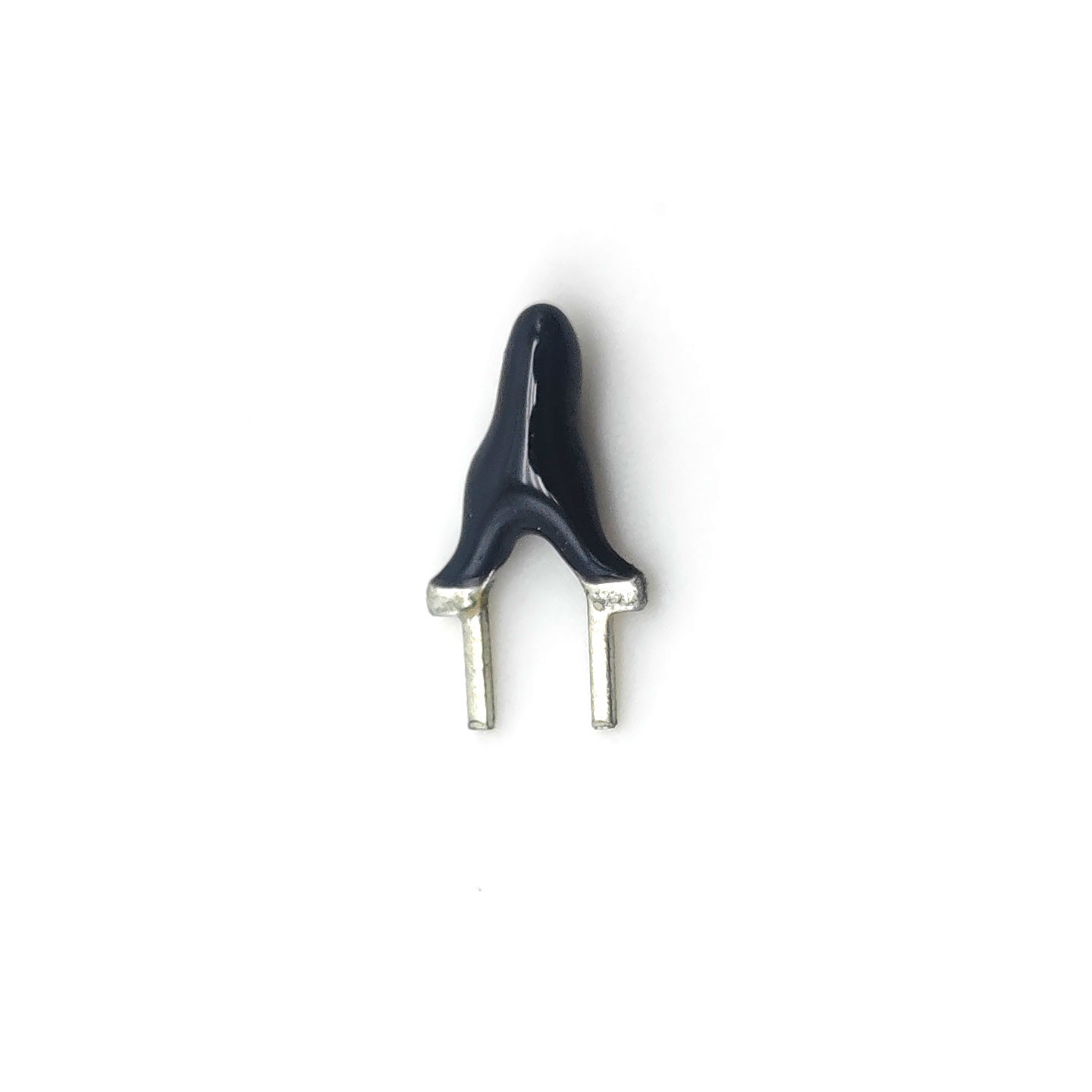

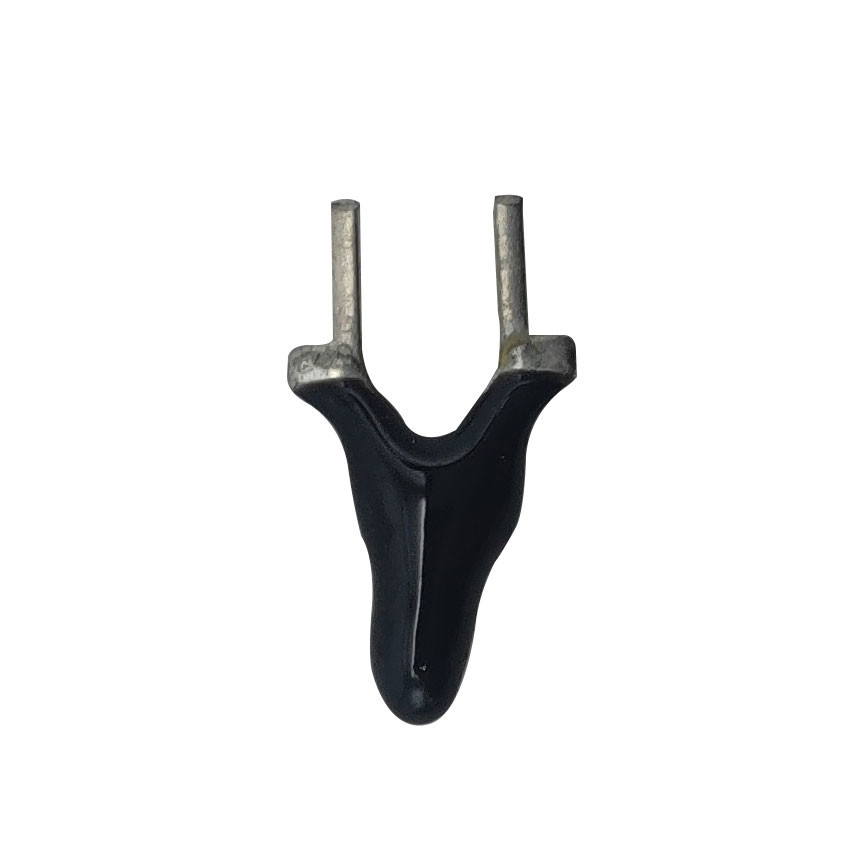

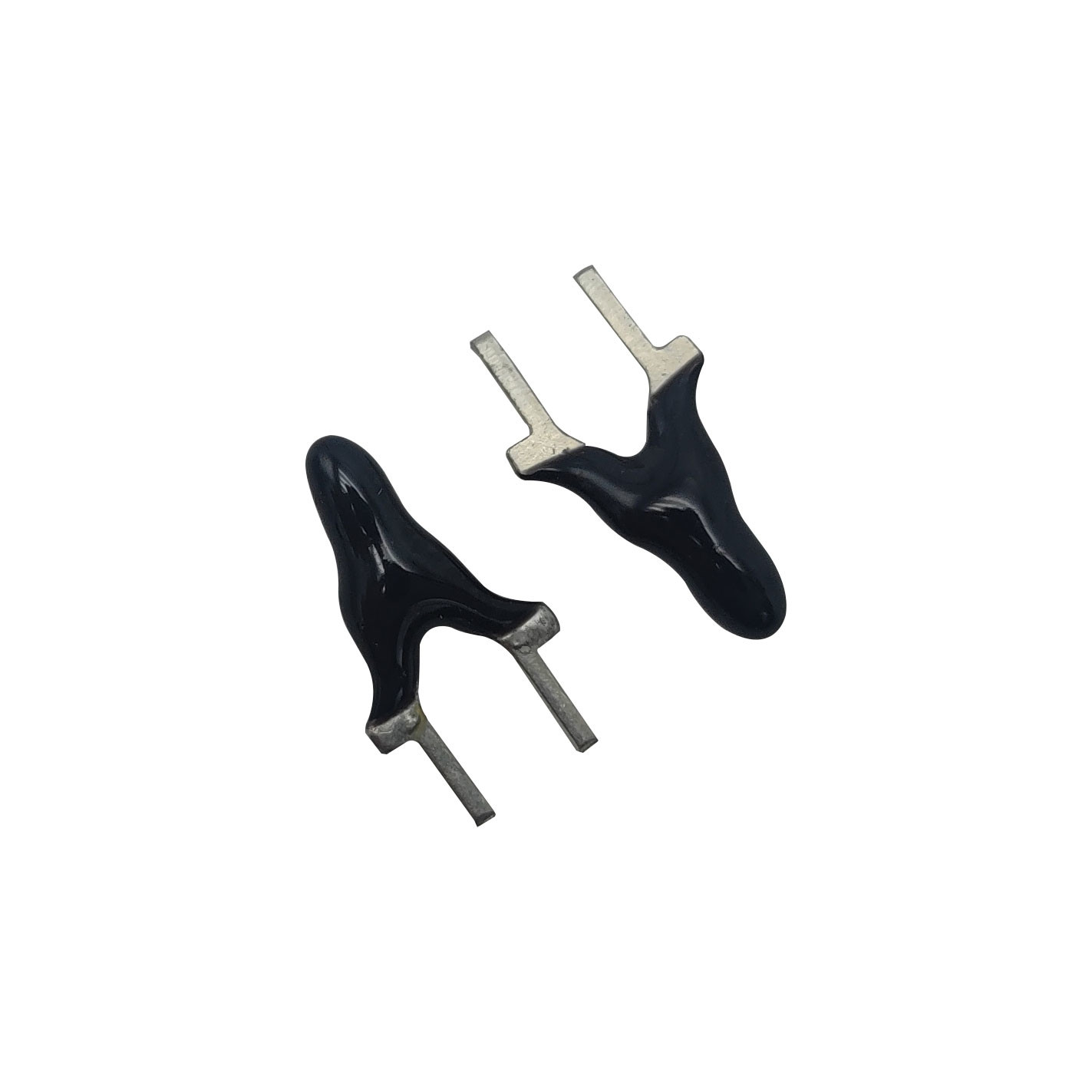

10K 3435 Firefighting NTC Thermistor
Product Description:
This ntc thermistor is a specific type of temperature sensor designed for temperature monitoring of firefighting equipment or systems. Here's what each part typically signifies:
10K: This indicates the nominal resistance of the thermistor at a standard temperature, usually 25°C (77°F). In this case, it signifies that the resistance of the thermistor at 25°C is approximately 10,000 ohms.
3435: This number refers to the Beta (β) value of the thermistor. The Beta value is a parameter that describes the characteristic curve of the thermistor, specifically how its resistance changes with temperature. A Beta value of 3435 means that the resistance of the thermistor changes by a factor of 3435 over a specific temperature range.
In the context of firefighting equipment, such a thermistor could be used for temperature monitoring purposes. For example, it might be incorporated into fire suppression systems, fire alarms, or firefighting gear to detect elevated temperatures. This information could then trigger appropriate responses, such as activating sprinkler systems, sounding alarms, or providing warnings to firefighters about hazardous conditions.
Parameter:
R25℃=10KΩ±1%
B25/85=3435K±1%
Probe: Drop≤φ2.6 black
Wire: Fe/Sn wire+MF57 element
Length: (11±1)-(3±1)Sn
Drawing:
