| Place of Origin: | China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MF5A-4 |
| Minimum Order Quantity: | 1000PCS |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-5 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000K/M |
| Resistance Value: | R25℃=20KΩ±0.1℃ | Beta Value: | B25/50=3950k |
|---|---|---|---|
| Probe: | Max φ1.4*3.5， Black | Wire: | Enamelled Wire φ0.3mm, Red |
| Length: | (31.5±2)-（3±1）Sn |

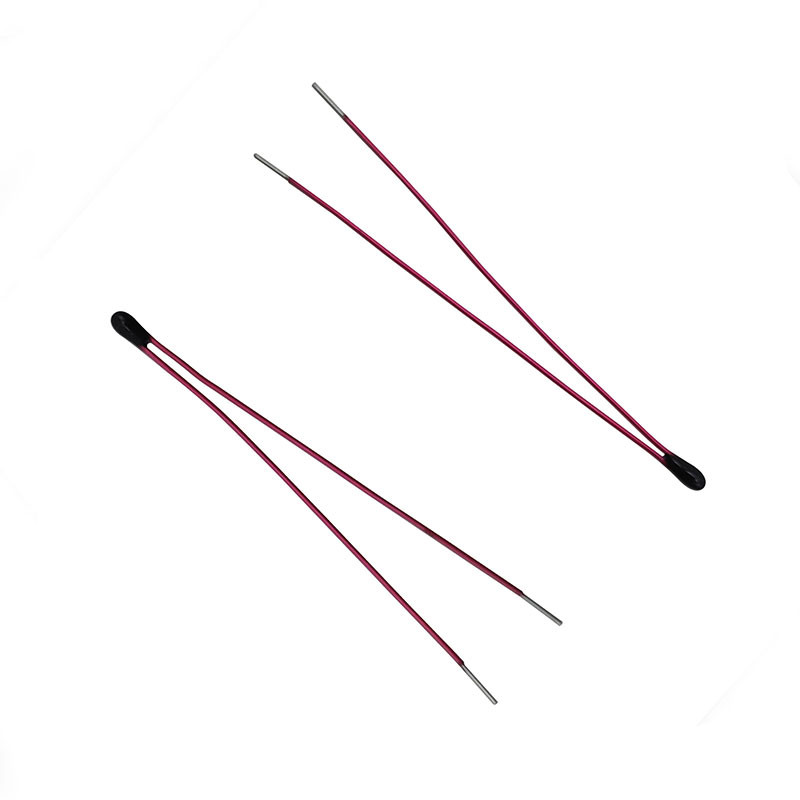

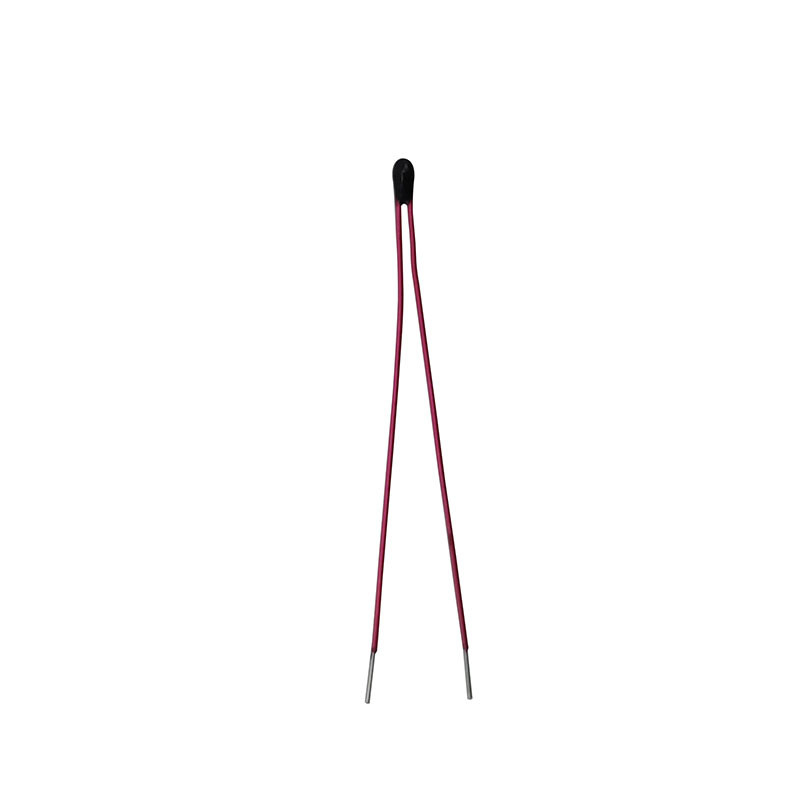

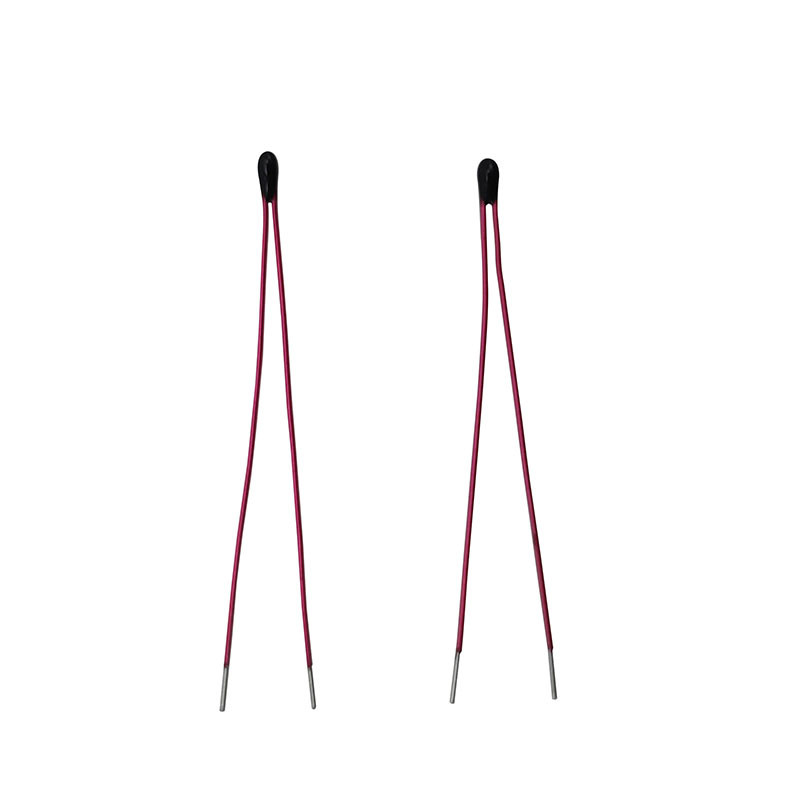

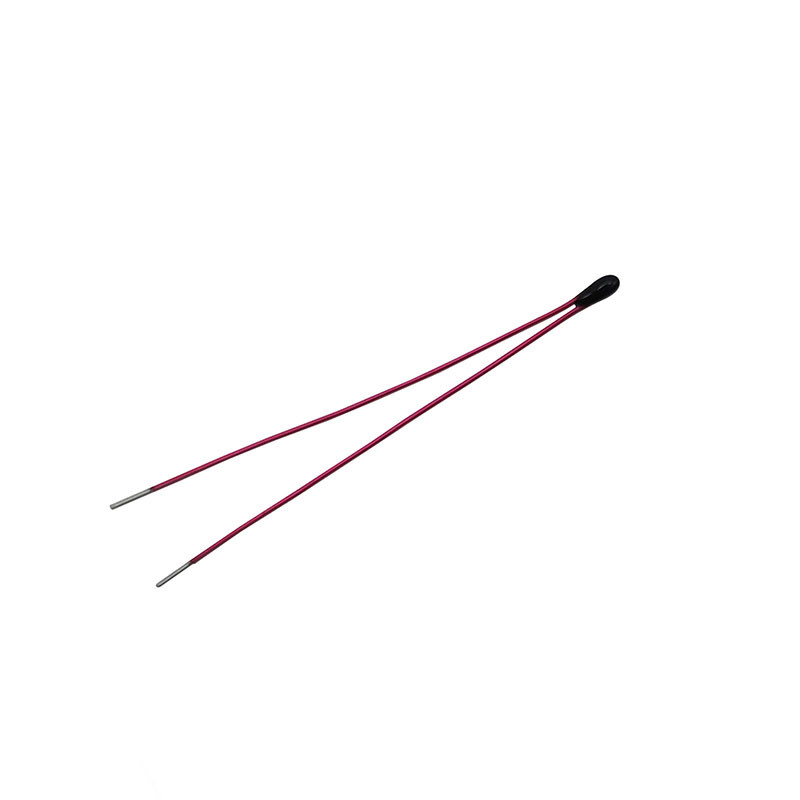

R25℃=20kΩ±0.1℃ B25/50= 3950k NTC Temperature Sensor
Product Description:
R25℃ = 20kΩ ± 0.1℃: This indicates the resistance of the thermistor at 25°C (room temperature), which is 20,000 ohms, with a tolerance of ±0.1°C. The tolerance refers to how much the actual resistance may deviate from the specified value of 20kΩ.
B25/50 = 3950K: This represents the B-parameter or B-value of the thermistor. The B-value is a constant that characterizes the relationship between resistance and temperature. Specifically, B25/50 indicates the B-value at 25°C, which is 3950K. This value is used to calculate the temperature coefficient of the thermistor over a certain temperature range, typically from 25°C to 50°C.
Wide Application Range: From industrial automation to consumer electronics, this NTC temperature sensor finds versatile applications in various industries and sectors. Whether it's monitoring environmental conditions, controlling heating or cooling systems, or ensuring product quality during manufacturing processes, this sensor delivers consistent and accurate temperature data.
Features:
R25℃=20KΩ±0.1℃
B25/50=3950K
Probe: Max φ1.4*3.5mm,black
Wire: Enamelled steel wire φ0.3mm
Length: (31.5±2)-(3±1)Sn
Applications:
HVAC (Heating, Ventilation, and Air Conditioning) Systems
Automotive Electronics
Industrial Automation
Medical Devices
Consumer Electronics
Environmental Monitoring
Food Processing
and more.
