| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=2.252kΩ | B Value: | B25/50=3935k |
|---|---|---|---|
| DisposableTolerance: | （25~45）℃±0.1℃ | Operating Temperature Range: | 0℃~50℃ |
| Length: | 1.5m | Cable: | PVC Cable |
| Plug: | PVC Plug | Chip: | NTC Chip |
| Highlight: | jingpu NTC Medical Temperature Sensor,jingpu NTC Medical Temperature Sensors,jingpu 2.252kohm ntc thermistor temperature sensor |
||

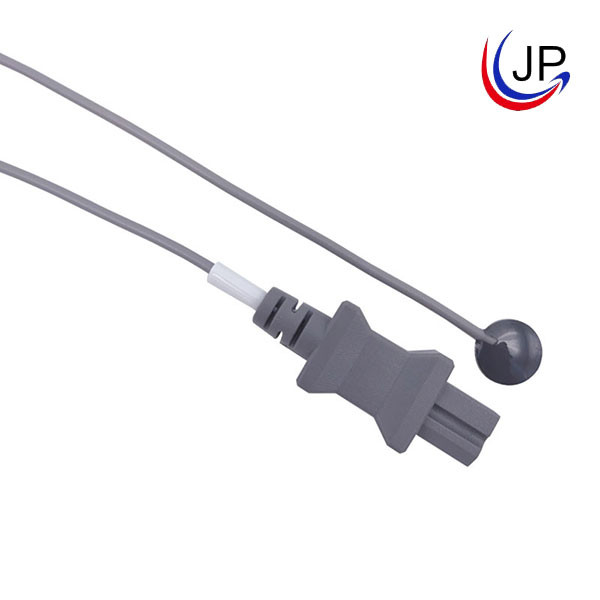

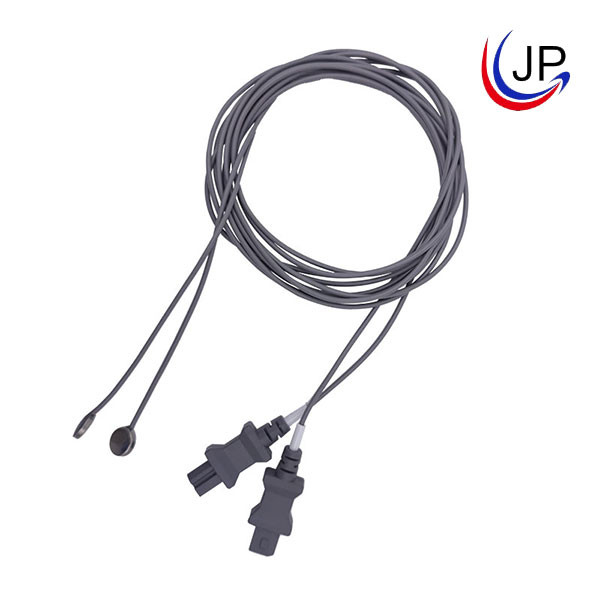

2.252kΩ Disposable Skin NTC Medical Temperature Probe
Product Description:
Skin disposable temperature probe medical temperature sensor is widely used for measuring the skin temperature of the human body. The sensor probe is epoxy and metal disk. The rated resistance value is 2.252KΩ. The total length is 1.5 Meters and the sensor measurement tolerance is within ±0.1℃. Used for monitors, suitable for YSI400 series products replacement.
Features:
DisposableTolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
R25℃=2.252kΩ
B25/50=3935k
Application:
Applicable to Medical monitors
Structure and Dimensions:(Unit: mm)
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max. Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
Standard packing (inner packing): 1 pcs/polybag
