| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | JP405 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 2.252KΩ | Tolerance: | ±0.1℃(25℃~45℃) |
|---|---|---|---|
| Feature: | Disposable, PVC Sleeve, 9Fr（OD3.0） | ODM/OEM: | Yes |
| Temperature Range: | 0℃~50℃ | Chip: | NTC Thermistor |
| Application: | Medical Monitor | Customization: | Available |
| High Light: | 3.0mm Medical Temperature Sensor,9FR Medical Temperature Sensor,Adults Disposable Temperature Probe |
||

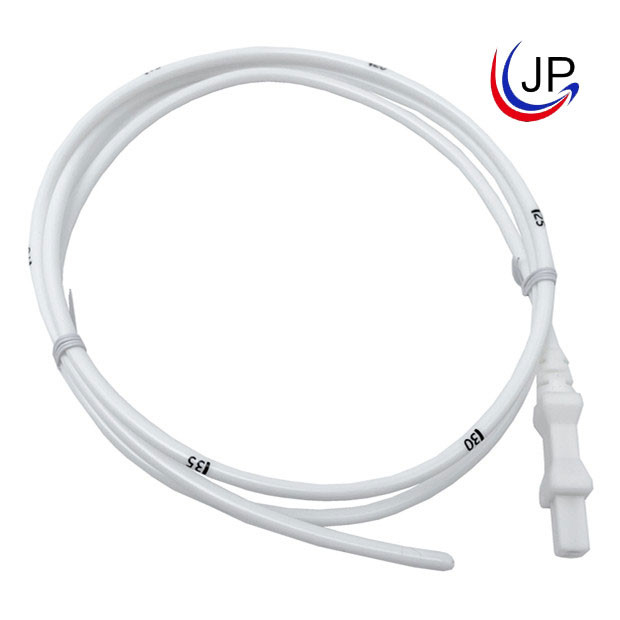

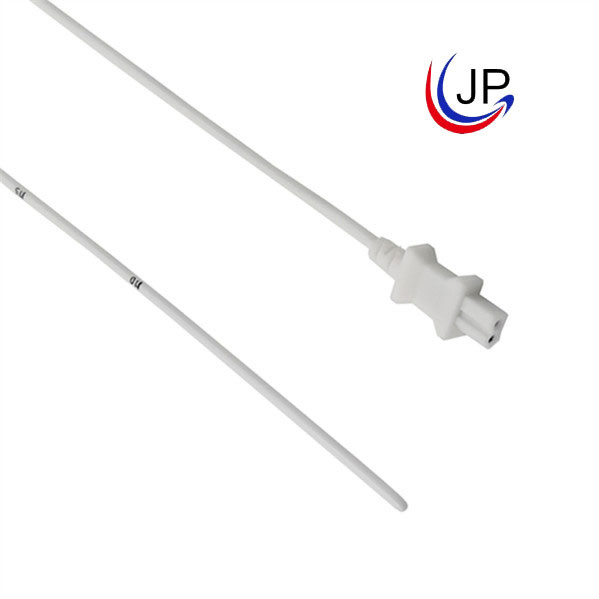

9FR 3.0mm Disposable Medical Temperature Sensor Temperature Probe For Adults
Brief Introduction:
This product is a disposable medical temperature sensor, which is body cavity temperature probe for an adult human. Its resistance value is 2.252KΩ. Its measurement temperature tolerance is within ±0.1℃(25℃~45℃). It is compatible with the YSI400 series product instead.
Features:
9Fr(OD3.0)
Disposable
Operating temperature range: 0℃~50℃
PVC sleeve
Disposable Tolerance:±0.1℃ (25~45)℃
Application:
Medical monitor
Hospital operating room
Body monitor for ICU room
Emergency room
Continuous temperature monitoring for the patients
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ3.0 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤150 | S |
| (Max. Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
