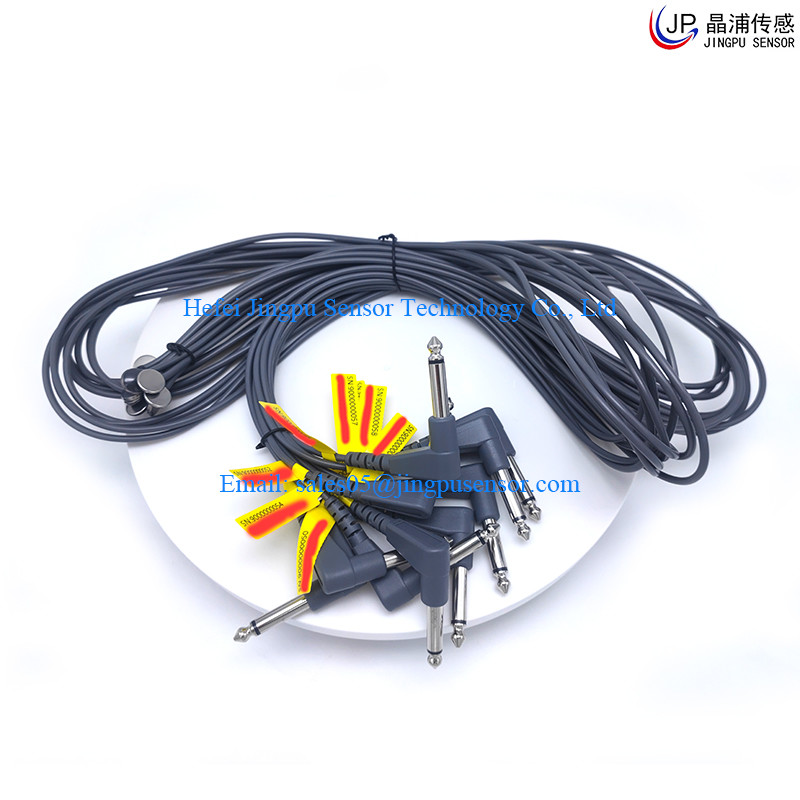

10KΩ 3935K Skin Temperature Probe For Infant Incubator Infant Warmer Neonatal Warmer Patient Monitor

Basic Information
Place of Origin: Anhui, China
Brand Name: Jingpu Sensor
Certification: CE, ISO13485, ISO9001, RoHS
Model Number: JP400
Minimum Order Quantity: 1000PCS
Price: USD 3-5 Per Piece
Packaging Details: Carton
Delivery Time: 2-5Weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20K per month
Detail Information
Resistance: R25℃=10KΩ Beta Value: B(25/50)=3935K
Tolerance: ±0.1℃ Temperature Range: 0~60℃
Certification: CE Length: 1500±20mm

Product Description

Skin Temperature Probe For Infant Incubator Infant Warmer Neonatal Warmer Patient Monitor



Product Description:

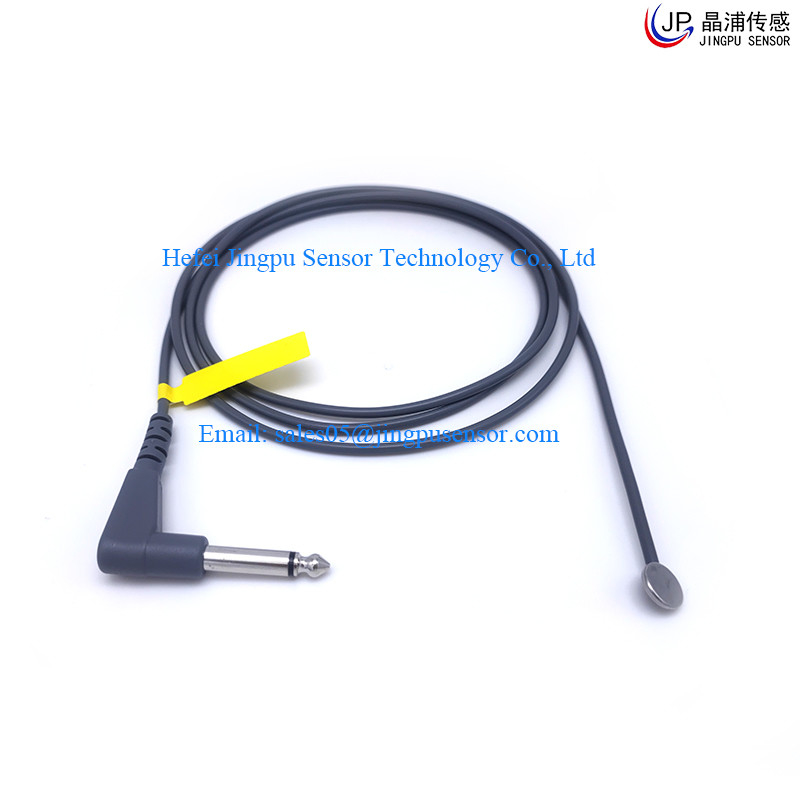

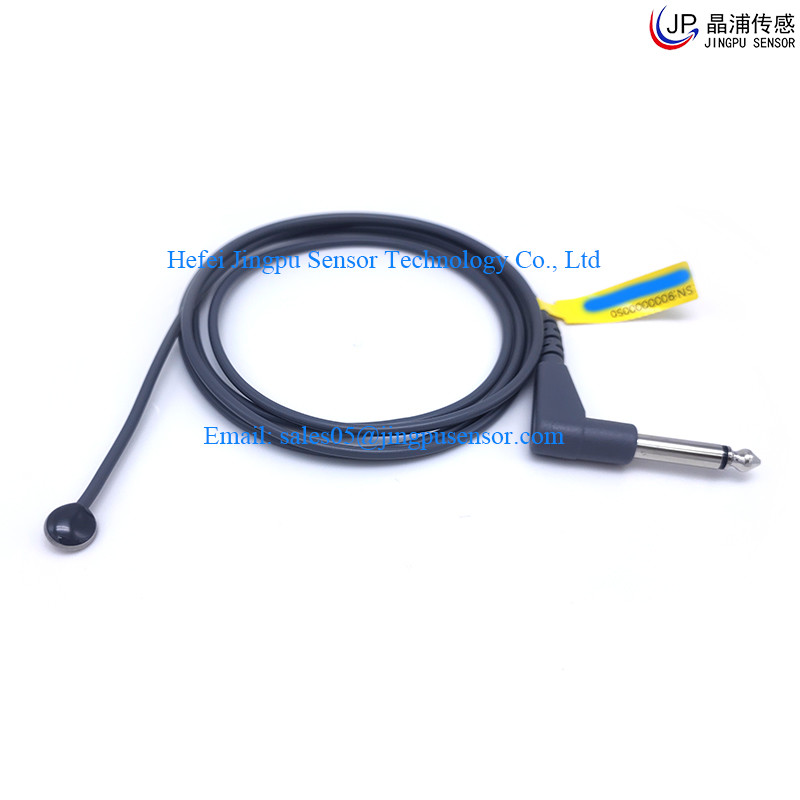

10KΩ 3935K Skin Temperature Probe is an MPF series NTC temperature sensor. The Resistance is R25℃= 10Kohm±0.1℃, the beta value is B25/50=3935K, the probe is SUS φ12*2mm. Cable is PVC theathed cable 24 AWG/1C OD 3.1. Total length is 1500+20 mm. The diameter of the phone jack is φ6.3mm. It is 6.3MP phone jack. The core element of this product is NTC thermistor. It is widely applied for the spare parts of infant incubator/ neonatal warmer/ infant warmer/ patient monitor.



Features:

R25℃=10KΩ

Tolerance:±0.1℃

B(25/50℃)=3935K

Cable: 24 AWG/1C OD 3.1

Operating Temperature Range: 0~60℃

Skin temperature probe disposable

For GE health care

For infant warmer system



Application:

This temperature sensor is called skin temperature probe, which is commonly used for infant incubator/infant warmer/neonatal warmer or patient monitor to measurement the skin temperature of a baby or patient.



Structures and Dimension:

10KΩ 3935K Skin Temperature Probe For Infant Incubator Infant Warmer Neonatal Warmer Patient Monitor 0



Technical Specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
