| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=2.252KΩ | Tolerance: | (25 ~ 45) ℃ ± 0.1 ℃ |
|---|---|---|---|
| Length: | 0.7 ~ 0.9 Meters | Operation Temperature Range: | 0℃~50℃ |
| Coating: | Epoxy Resin | Cable: | PVC Cable |
| Highlight: | JP402 2.252k Medical Temperature Sensor,JP402 Medical Temperature Sensor 2.252k,2.252k JP402 Medical Temperature Sensor |
||

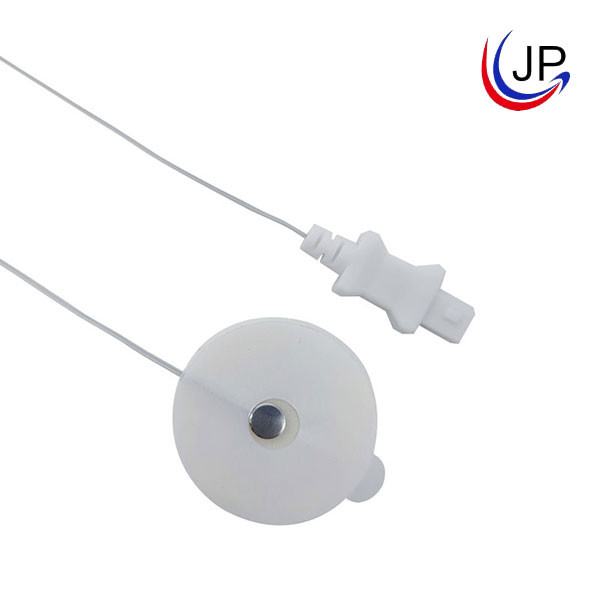

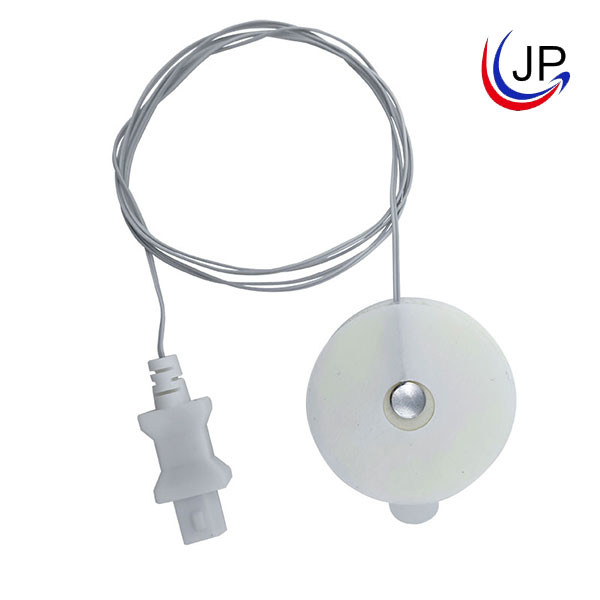

Disposable Medical 2.252kΩ Body Surface Temperature Sensor
Product Description:
JP402 disposable medical body surface temperature sensor is widely used in the measurement of human body surface temperature. The probe of the sensor is epoxy resin, round metal pad and plastic. The rated resistance value is 2.252KΩ. The total length of the product is generally 0.7 ~ 0.9 meters, and the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.
Features:
Disposable
Tolerance(25~45)℃±0.1℃
Operation Temperature Range: 0℃~50℃
Can be equipped with an extension connector
R25℃=2.252KΩ
with foam sticker
Application:
Compatible with monitors, suitable for the emergency clinic, ICU Operation Room, operation room, etc. Continuous monitoring of patient temperature.
Structure and Dimensions(mm):
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
