| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3KΩ~ 2000KΩ | Beta Value: | 2500K~4500K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~150℃() | Range Of Wire Lengths: | 1.97 Inches To 78.74 Inches (50mm To 2000mm) |
| Chip: | NTC Chip Thermistor | Encapsulation: | Epoxy Resin Encapsulated |
| High Light: | ISO9001 jingpu NTC Surface Mount Temperature Sensor,ISO9001 jingpu Epoxy Surface Mount Temperature Sensor,ISO9001 jingpu Ring Lug ntc thermistor probe |
||

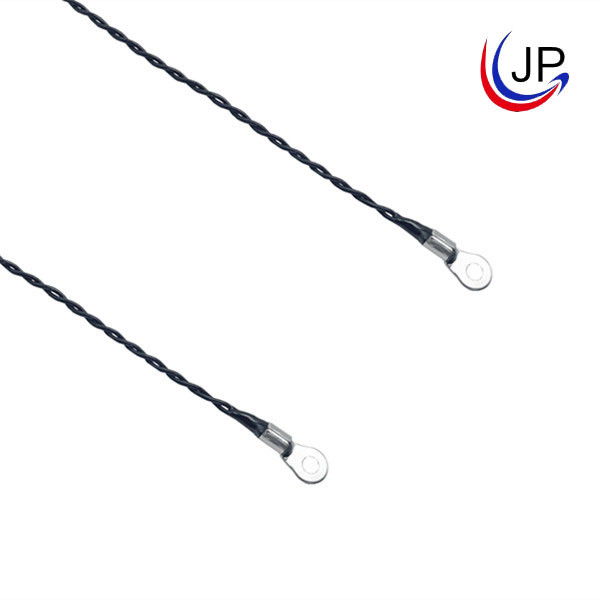

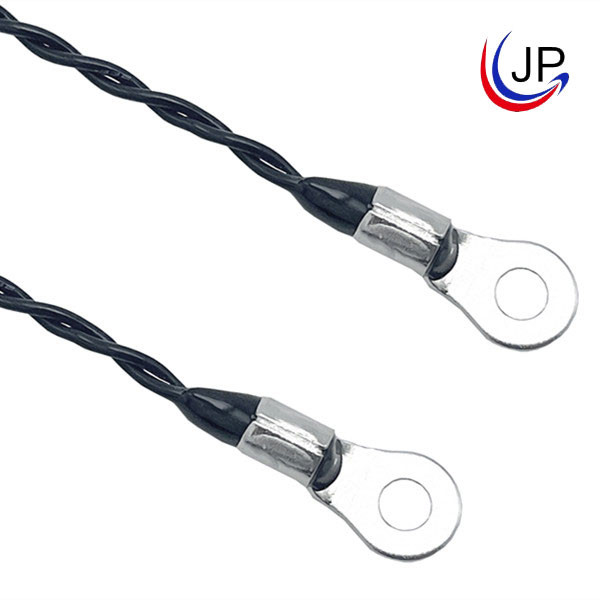

Epoxy NTC Surface Mount Temperature Sensor Ring Lug
Product Description:
The surface mount temperature sensor consists of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip and epoxy resin, and ring lug M2/M4/M5/M6. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K. These surface mount temperature sensors are widely used for the battery pack, solar inverter, YF, welding machine, control cabinet, etc.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
(PTFE) insulated lead wires series Operating temperature range: -40℃~150℃
Sensing element electrically isolated from tag
Eyelets to fit M3, M4&M5 screw sizes
The range of wire lengths is 1.97 inches to 78.74 inches (50mm to 2000mm)
miniature designed
Interchangeability
Surface mount temperature measurement
Application:
EV/HEV Bus Bars
Battery Covers
Panel Enclosures
Inverters
Welding machine
Control cabinet
Power Distribution
Thermal Management
Heat Sinks
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
