| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2F |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Operating Temperature Range: | -20℃~80℃ | Wire: | PVC Insulated Lead Wires |
|---|---|---|---|
| Probe: | ABS Probe | Cable: | PVC Cable |
| Custom: | Available | OEM/ODM: | Available |
| High Light: | ISO9001 jingpu High Voltage Resistant NTC Temperature Probe,ISO9001 jingpu PVC Cable ntc temperature probe,ISO9001 jingpu ABS high temperature thermistor probes |
||

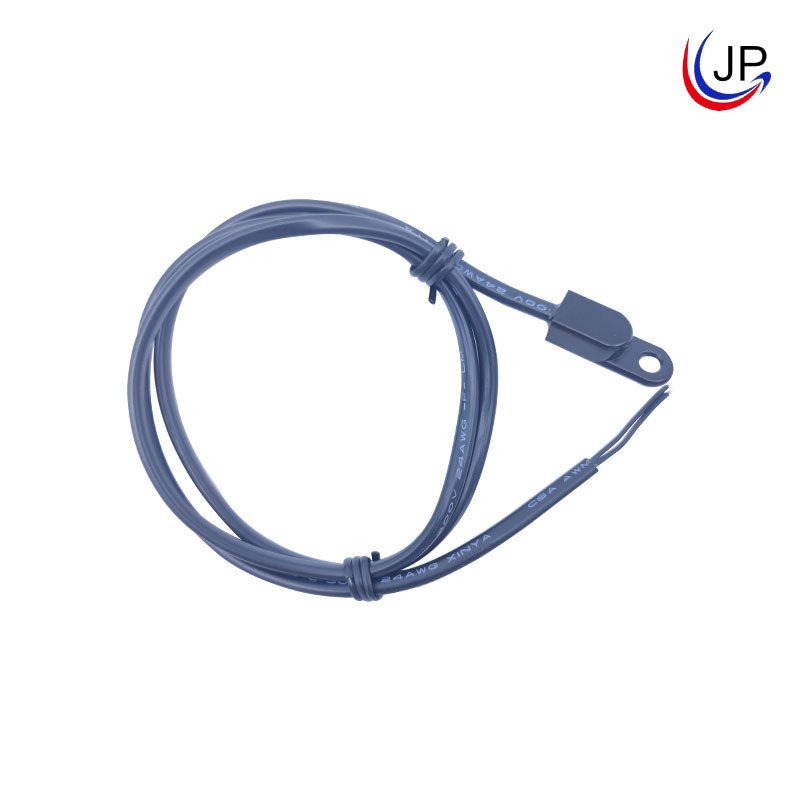

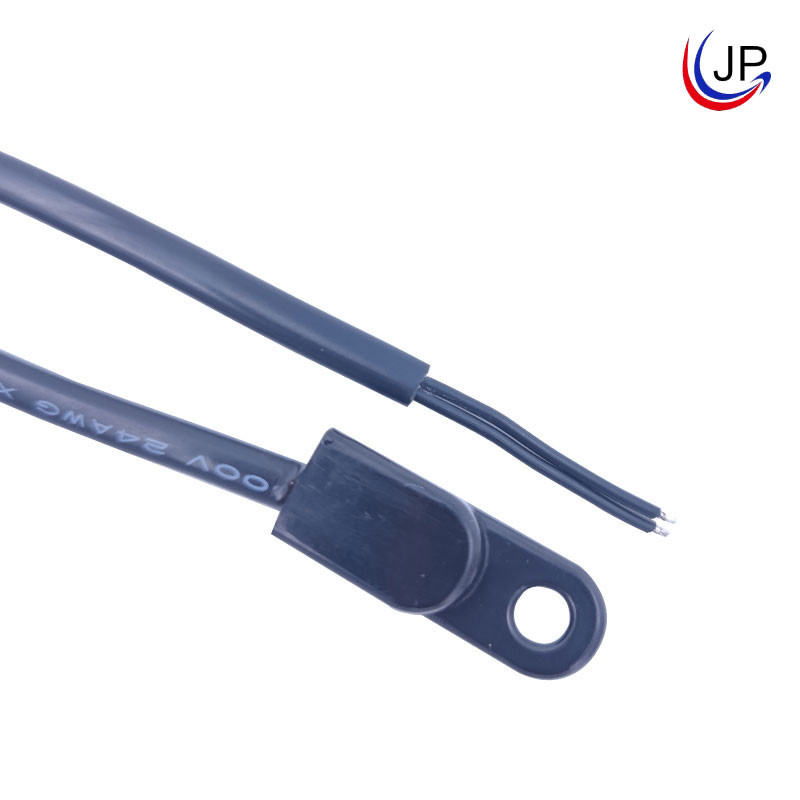

ABS PVC Cable High Voltage Resistant NTC Temperature Probe
Brief Instruction:
The MFP-2F surface measurement temperature sensor is widely used in electrical cabinets such as power distribution cabinets and high-voltage cabinets. Its advantage is that it can withstand AC5000V high-voltage insulation.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~80℃
Easy installation
Application:
Distribution cabinets
High voltage cabinets
Electric cabinets
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
