| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3kΩ To 2000kΩ | B Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Range: | -20℃~105℃ | Ring Lug: | Cu / Sn RNB8-5S |
| Chip: | NTC Chip | Wire: | UL2651 22AWG |
| High Light: | ISO9001 jingpu Probe Surface Mount Temperature Sensor,ISO9001 jingpu Surface Mount Temperature Sensor NTC,ISO9001 jingpu 4500K ntc body temperature sensor |
||

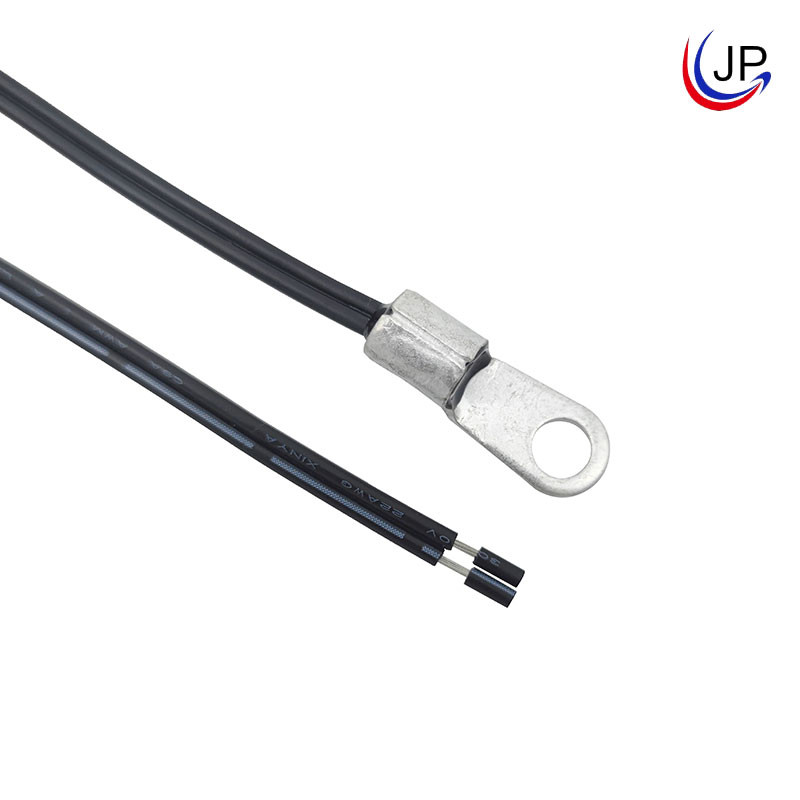

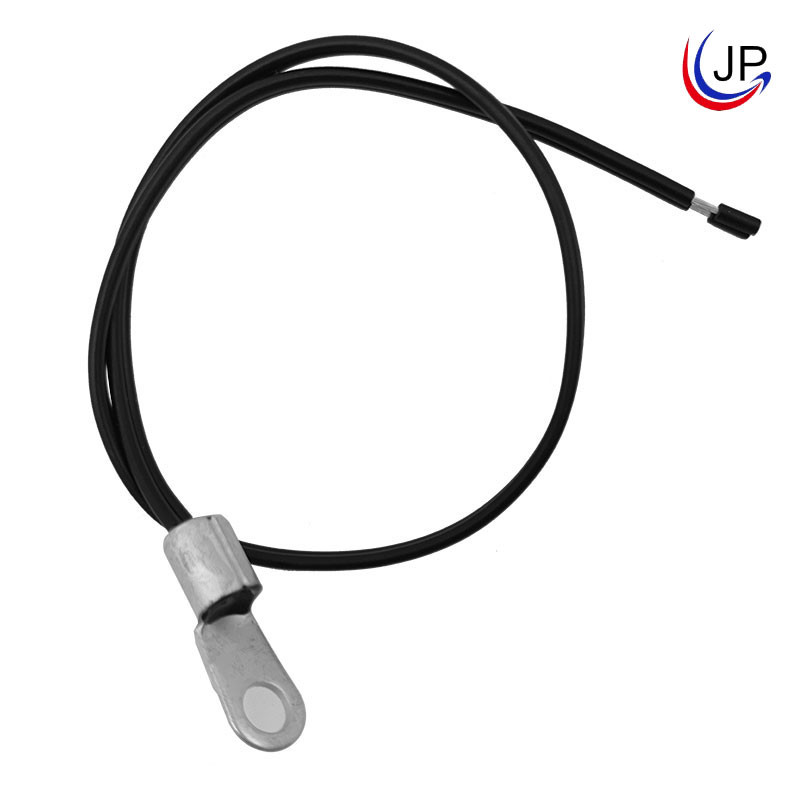

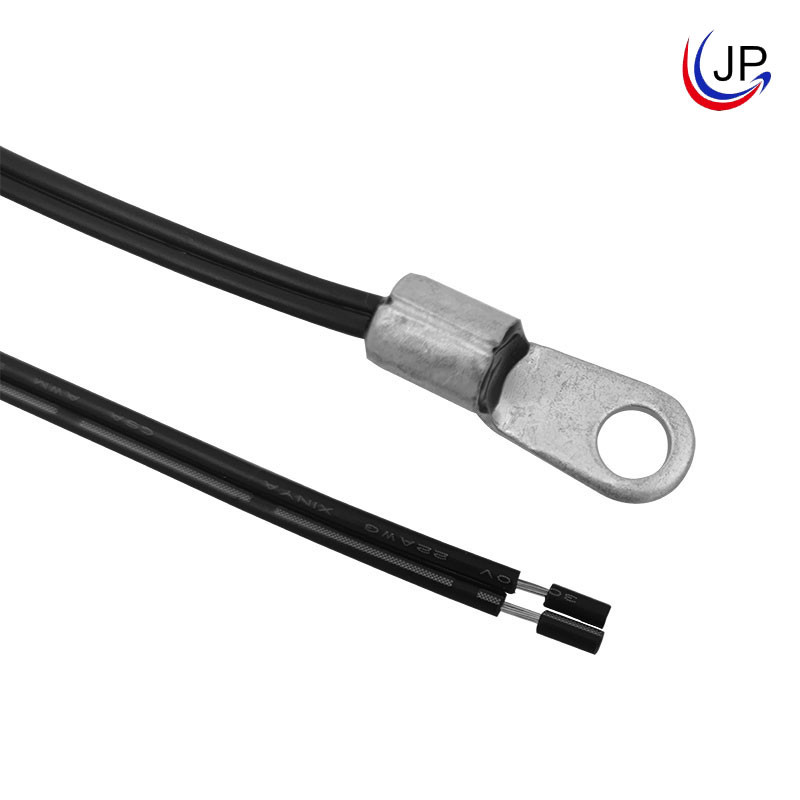

Probe Surface Mount Temperature Sensor NTC 2500K To 4500K
Product Description:
Ring lug M5, The optional resistance value range 0.3kΩ to 2000kΩ, and the beta value range 2500K to 4500K.
Features:
Comply with RoHS standard
Interchangeability
surface mount temperature measurement
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Sensing element electrically isolated from tag
Application:
Battery Covers
Power Distribution
Thermal Management
Heat Sinks
Control cabinet
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
