| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP405 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| Highlight: | Disposable Body Temperature Probe,Body Temperature Probe IP64,Medical Monitors Body Temperature Probe |
||
Brief Instruction:

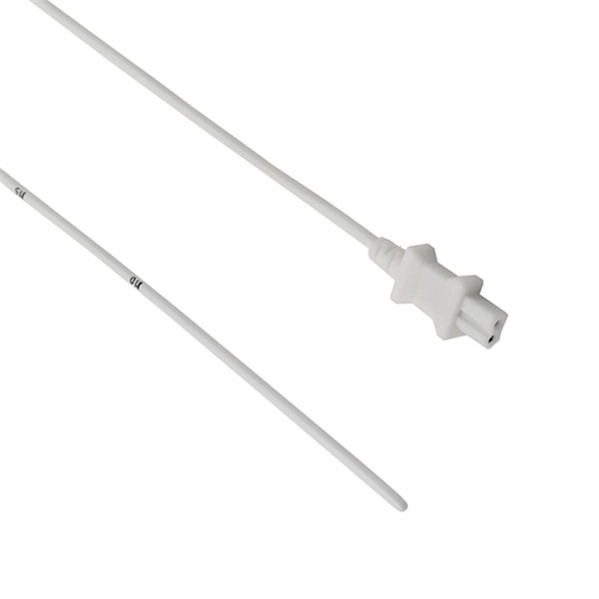

This project is a disposable medical temperature sensor. It is a body cavity temperature probe for adults, and the modified series also has a temperature sensor for children's body cavity. Resistance value 2.252 kΩ. The temperature tolerance is (25℃~45℃)±0.1℃. It can be replaced by YSI400 series products.
Features:
Disposable
PVC sleeve
Probe with calibration
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
9Fr(OD3.0)
Application:
It can be used in combination with the body monitor for continuous monitoring of the patient's body temperature in ICU, emergency room and operating room
Structure and Dimensions:(Unit:mm)
| NO | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ3.0 | 1 | white |

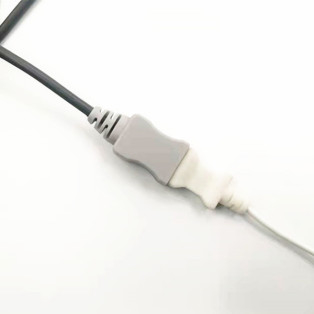

| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
