| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MFP-2C |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Ntc Car Refrigerator Temperature Sensor,Car Refrigerator Ntc Temp Sensor,Injection Probe Ntc Temp Sensor |
||

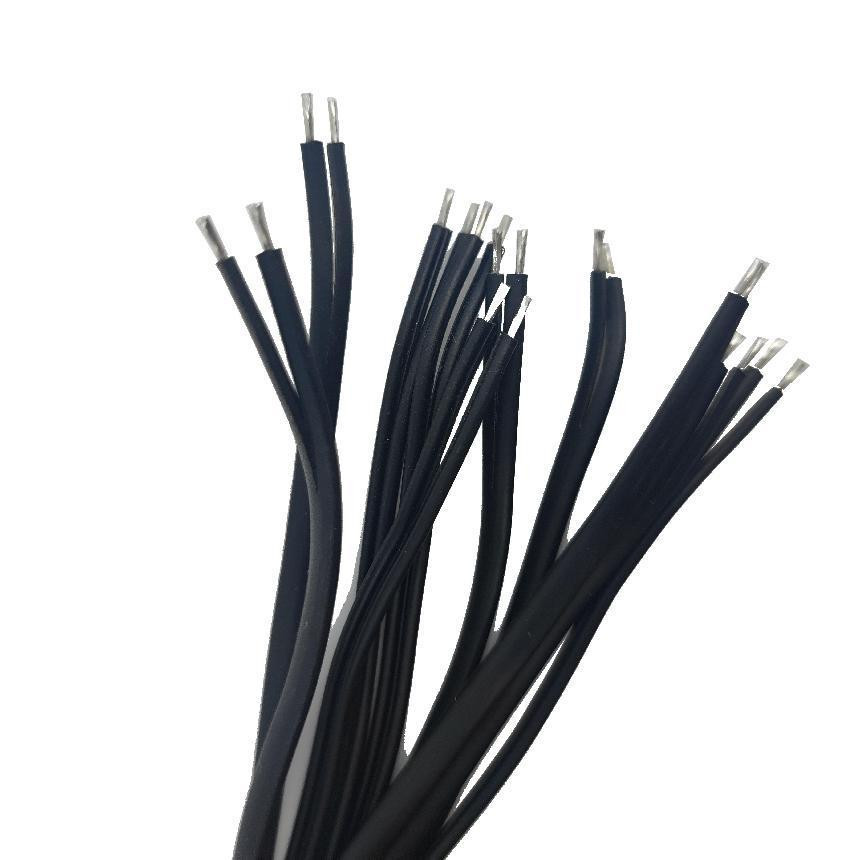

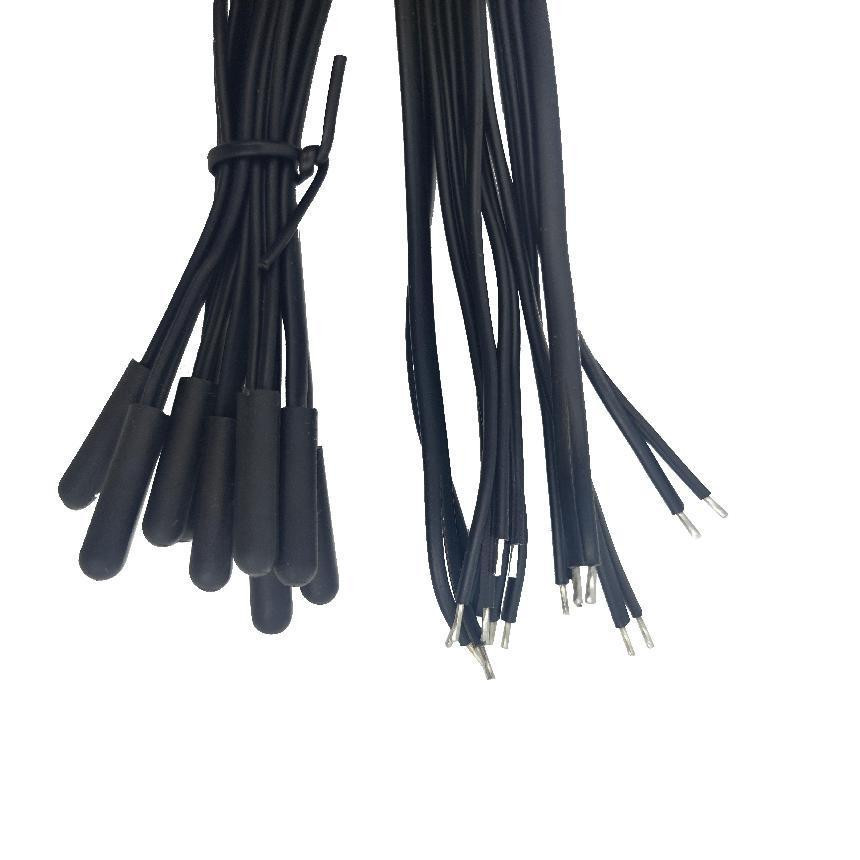

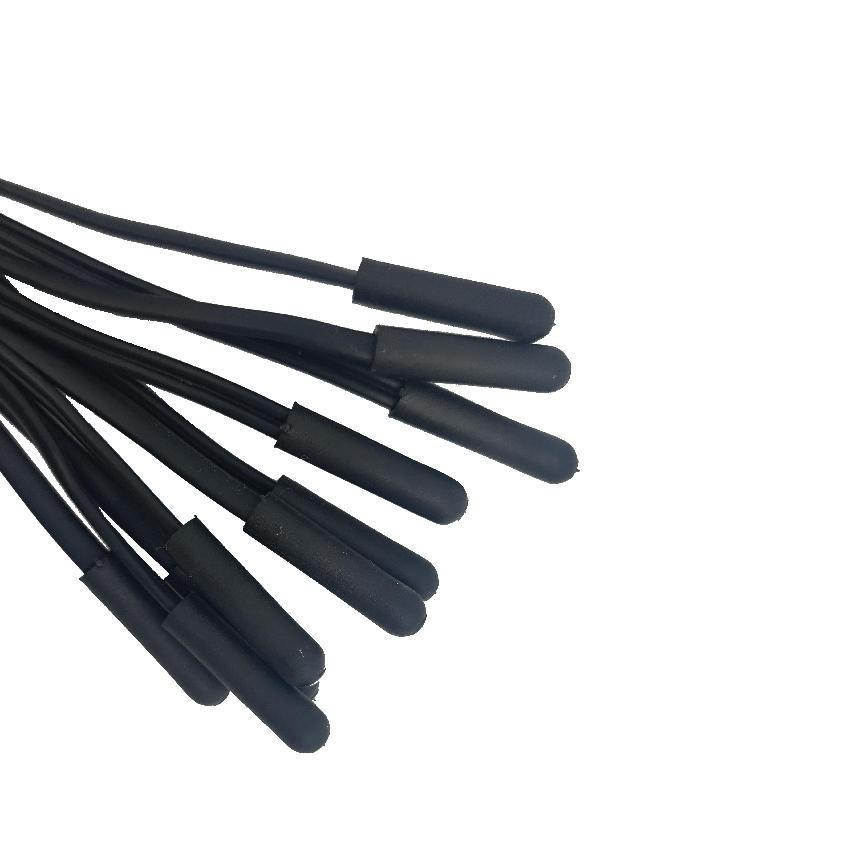

Ntc Car Refrigerator Temperature Sensor 10kω3950 Injection Probe
Brief Instruction (Product Description):
This product is mainly used for measuring the temperature of automobile refrigerator, the resistance value parameter is generally 10K ω, B25/50=3950K (also can be customized according to customer requirements), the probe is TPE injection molding, the end of the line can be matched with the corresponding connector according to customer requirements.
Features:
Comply for RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Good stability
Application:
Car refrigerator
Structure and Dimensions:(unit:mm)
