| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -20℃~125℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Ntc Thermistor High Temperature Sensors,IP64 High Temperature Sensors,Ntc Thermistor High Temp Sensors |
||

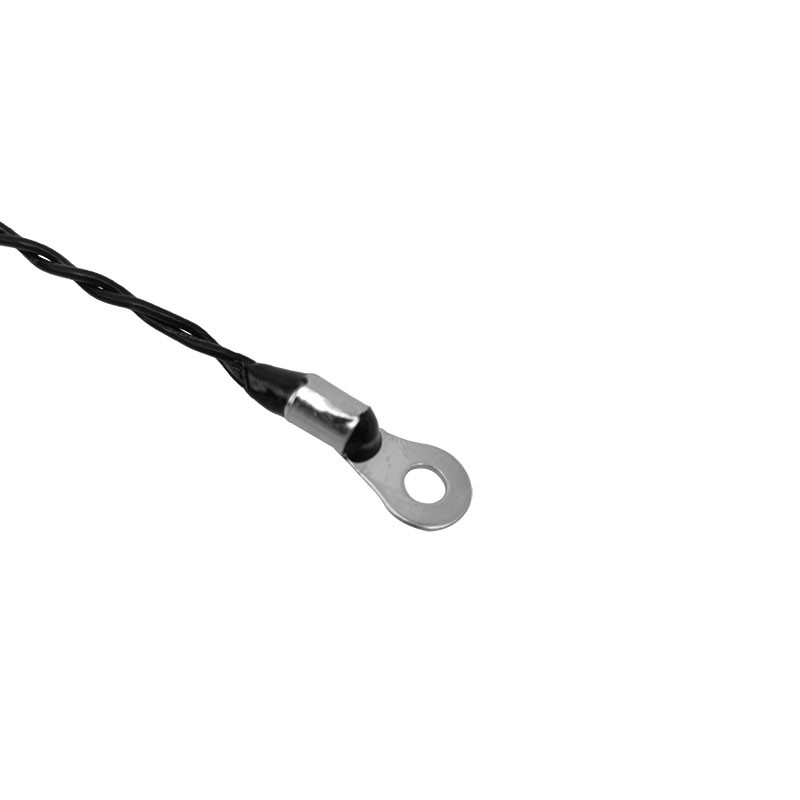

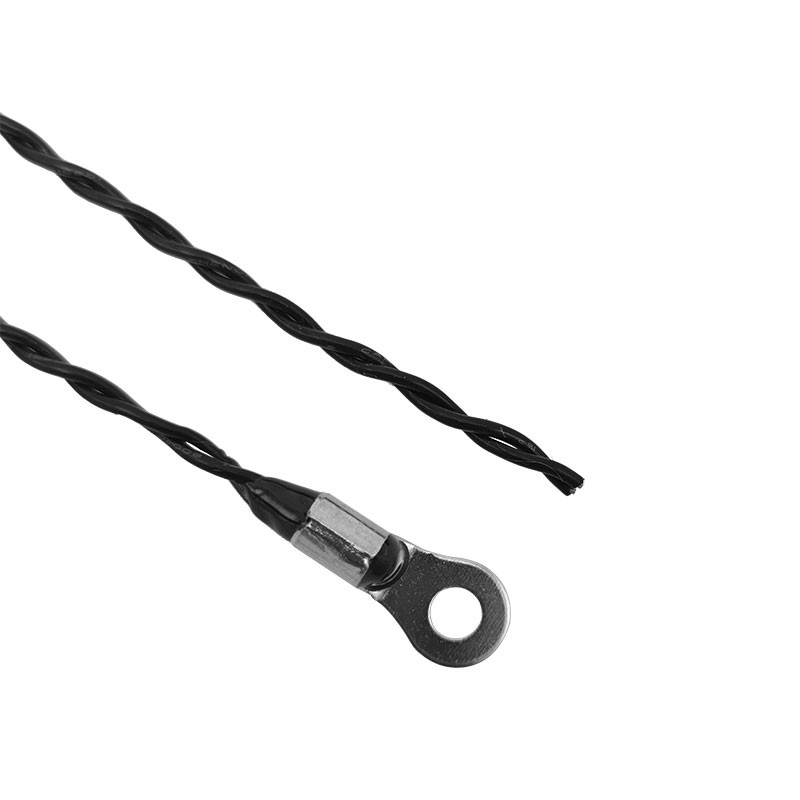

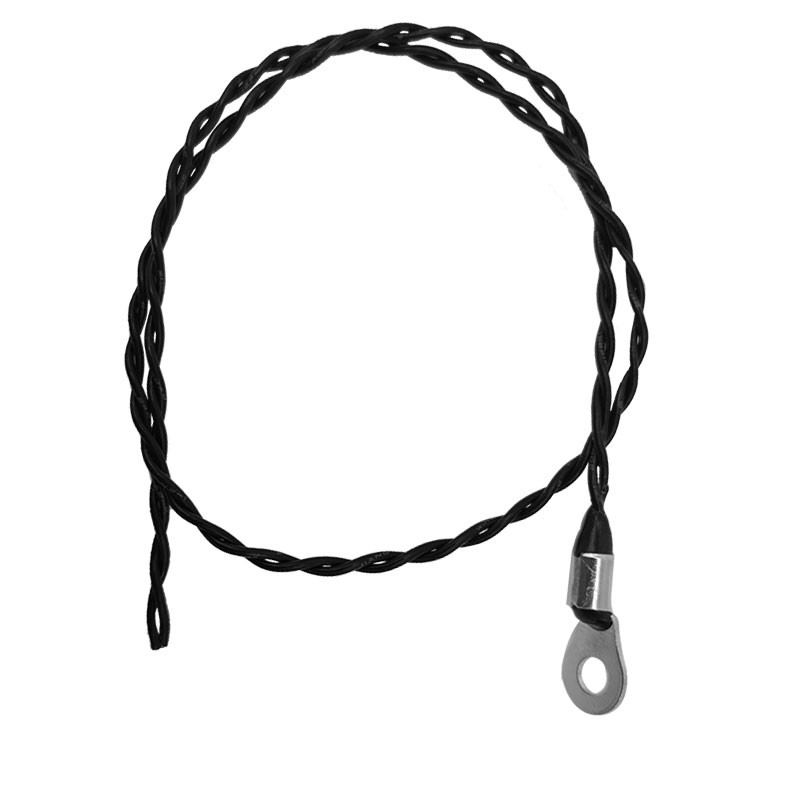

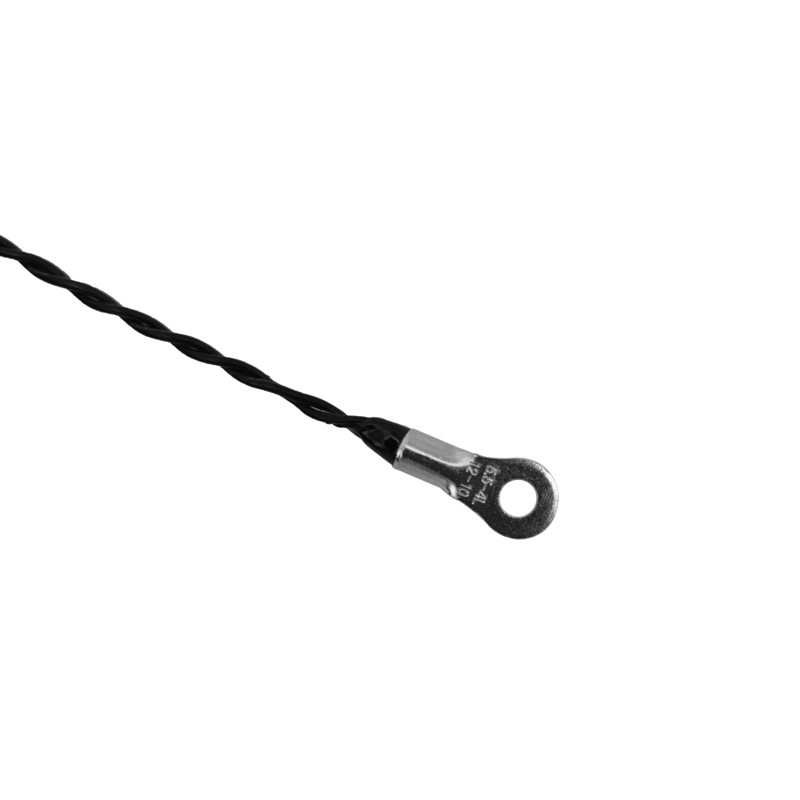

High-Temperature Sensors Ntc Thermistor Cwf Series For Welding Machine
Brief Instruction:
Ring lugM4,the optional resistance value range 0.3kΩ to 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply for ROHS standard
Interchangeability
surface mount temperature measurement
PVC insulated lead wires series
Operating temperature range: -40℃~125℃
Sensing element electrically isolated from tag
R25℃=10kΩ
B25/50=3950k
304 stainless steel fixed plate, easy installation, accurate temperature measurement
Main application: All kinds of surface temperature measurement
Common resistance value: 10K±1%3950 100K±1%3950 (available on demand)
Thermal time routine: about 3 seconds
Withstand voltage AC: 1600v 5s
Application:
Electric Welder
Structure and Dimensions:
