| Optical Resolution: | 15:1 | Storage Temperature: | -20~80℃ |
|---|---|---|---|
| R Tolerance: | 1%,2%,3%,5%,10% | Output Type: | Analog |
| Beta Value: | B25/85=3435±1% | Accuracy Class: | 2B、B、A、1/3BLevel Optional |
| Probe: | R2-3.2(T=0.6) | B Tolerance: | 0.5% , 1% , 2% , 3% |
| Ip Code: | IP64 | Free Sample: | Yes |
| Package Type: | Surface Mount | Rohs Compliant: | Yes |
| Type: | Surface Mount Thermocouple | Custom: | Available |
| Temperature Range: | -20-1200°C , Optional | ||
| High Light: | Surface Mount PT1000 Sensor,Ring lug Surface Mount PT1000 Sensor |
||

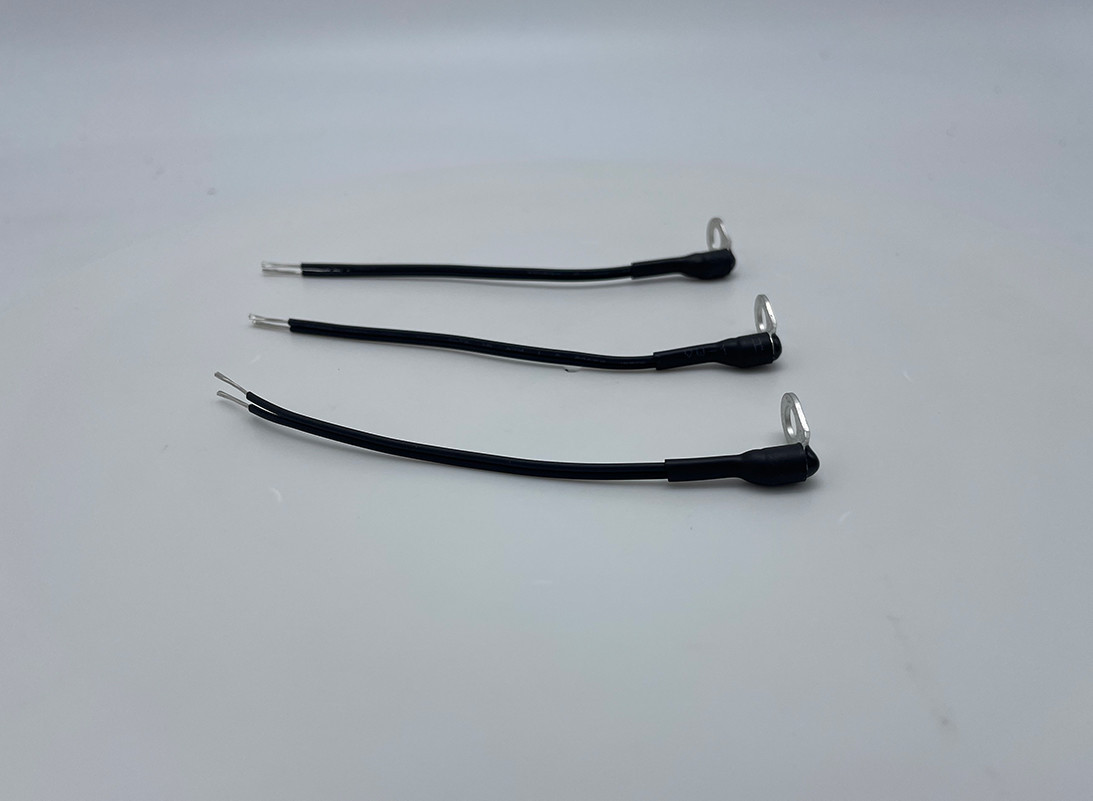

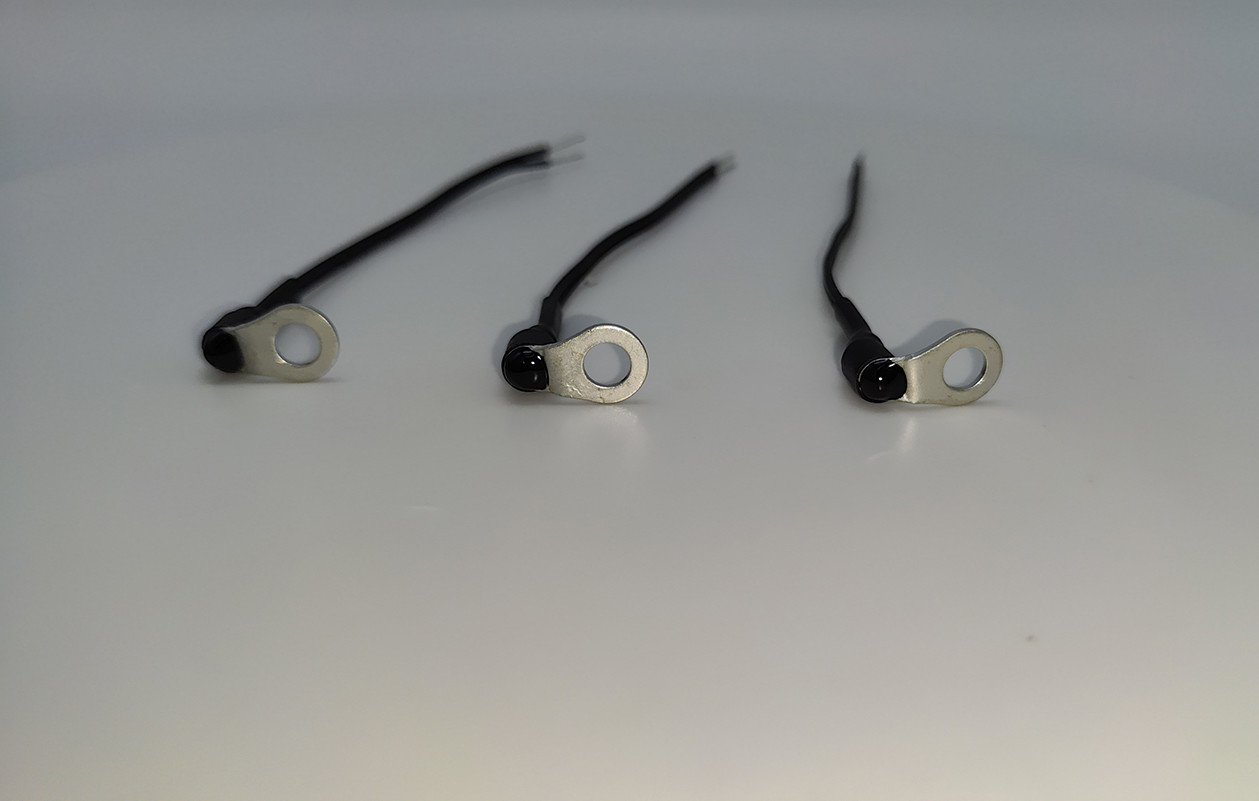

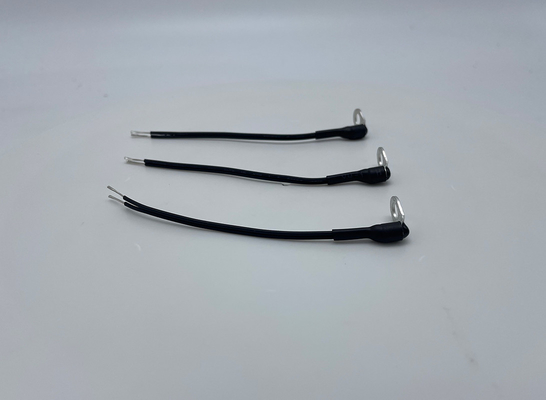

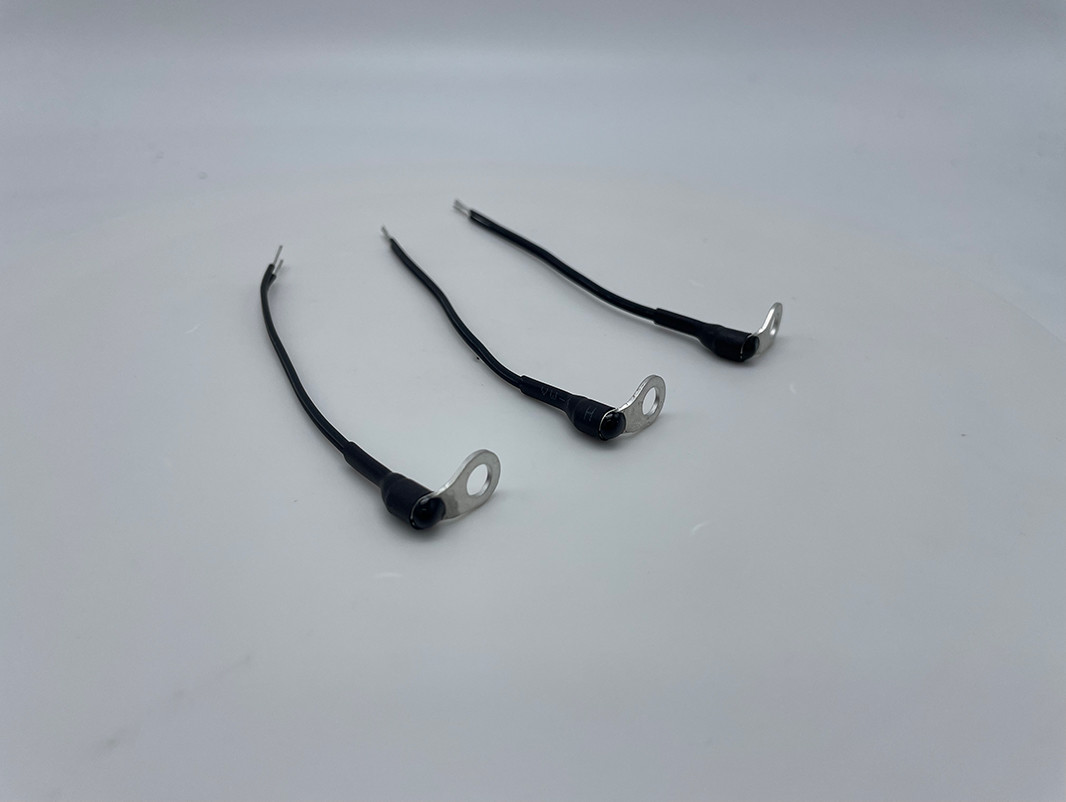

Surface Mount PT1000 Sensor Right angle type Ring lug
Product Description
The item is one surface mount PT1000 temperature sensor right angel type ring lug. It's used for temperature measurement and monitoring. It's manufactured from Hefei Jingpu Sensor Technology Co.,Ltd.
Electrical Characteristic
The item is one surface mount PT1000 temperature sensor right angel type ring lug.
| Item name | Code | Test condition | Performance requirement | Unit |
| Rate resistance | R0℃ | 0℃±0.05℃ | 1000 | Ω |
| Withstand voltage | Hi-pot |
In still air AC1500V 1mA 1s |
No break down | V |
| Operating temp. range | OTR | In still air | -40℃~105℃ | ℃ |
Size drawing for PT1000 temperatur sensor
| Item No. | Name | Material specification | Qty | remarks |
| 1 | NTC chip | PT1000 sensor | 1 | |
| 2 | Shell/housing | (right angel) RNB5-10 | 1 | |
| 3 | Encapsulation | Epoxy resin | 1 | black |
| 4 | Tube | shrinkable tubeФ5.0*(20±3)mm | 1 | black |
| 5 | Cable | XLPE insulated wire UL4411 24AWG 125℃ | 1 |
Operation Notice
1.1 Application: Temperature measurement and control
1.2 Avoid measure error caused by self-heat when over current pass through
1.3 Avoid excessive heat shock, the hot air blow should beat least 10mm to the probe in case heat shrink protection tube need to be attached
1.4 Storage temperature: 0℃~50℃, ≤75%RH; Avoid in a corrosive gas and sunlinght environment; after opening the package, it needs to be sealed again.
1.5 according to the structure of epoxy encapsulated ntc thermistor, when end user install, to avoid the epoxy head subjected too much tensile force and bending force from the lead wire. the lead wire shall be controlled at a bending point or a force point on a lead wire 6mm or less below the sealing head. So as not hurt the chip, resulting in resistance drifting and even open circuit, especially when the components is heated.
Product Images
Product Application
Temperature measurement and monitoring
Automotive battery
Battery charger
Industrial device
Home appliances
