| Place of Origin: | China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000PCS |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-5 Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100k Pieces per Month |
| Resistance Value: | R25℃=100KΩ±1% | Beta Value: | B25/50=3950K ±1% |
|---|---|---|---|
| Probe: | Stainless Steel | Wire: | Single Wire UL1332 26AWG 7/0.16 OD1.15 |
| Length: | 480±10mm |

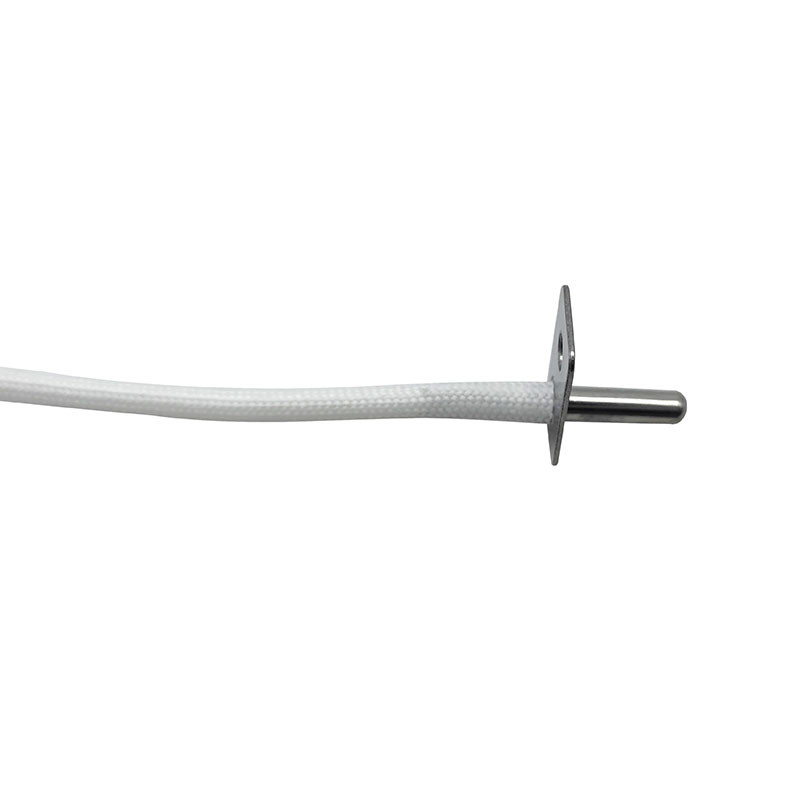

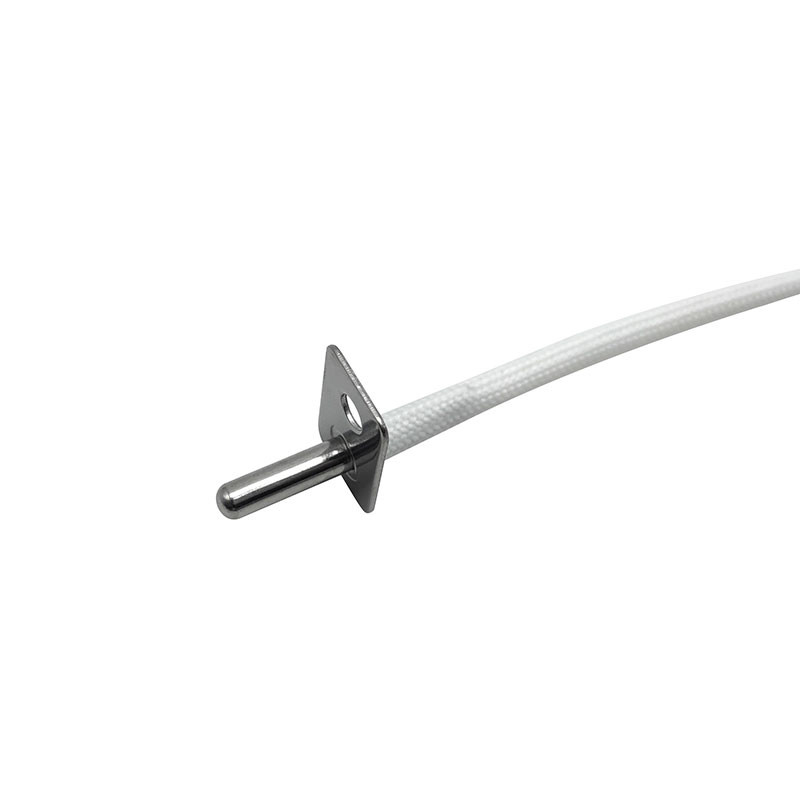

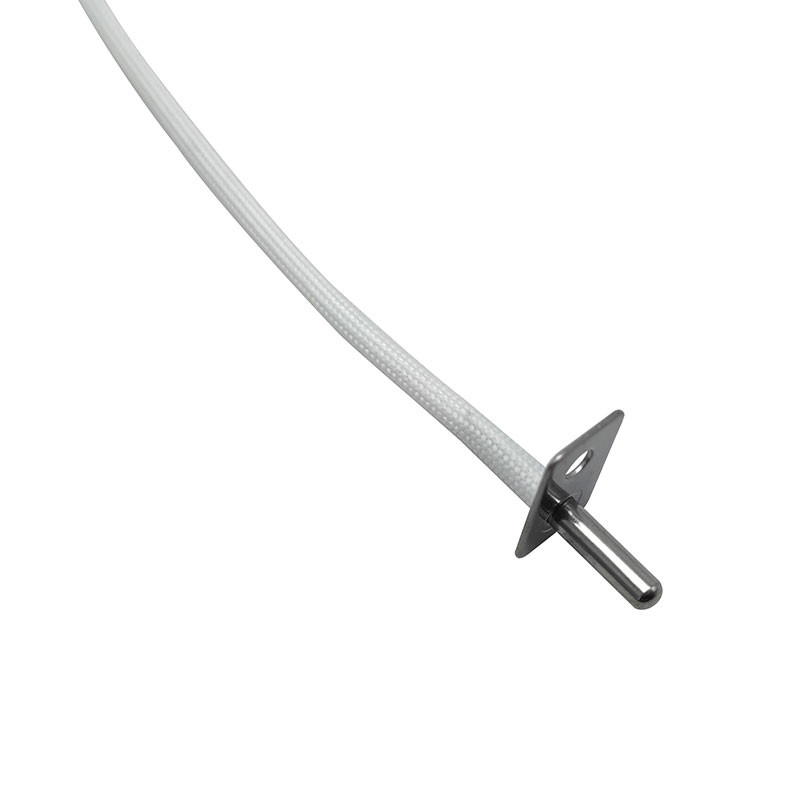

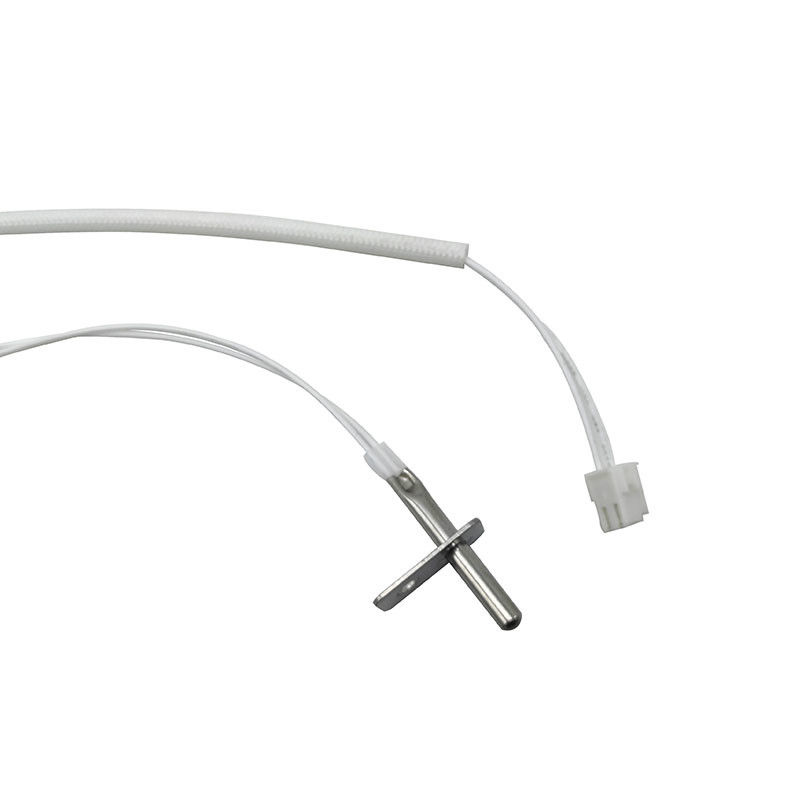

R25℃=100KΩ±1% B25/50=3950K±1% NTC Temperature Sensor
NTC Temperature Sensor, meticulously engineered to provide precise and reliable temperature measurements in a wide range of applications. With a resistance of R25℃=100KΩ±1% and a temperature coefficient of B25/50=3950K±1%, this sensor offers exceptional accuracy, ensuring that your temperature readings are consistently precise.
Crafted with premium materials and advanced technology, our NTC Temperature Sensor is built to withstand even the harshest environments while maintaining its performance integrity.
Features:
Resistance Value: R25℃=100KΩ±1%
Beta Value: B25/50=3950K±1%
Probe: SUS φ4*30F14*20
Wire: Single wire UL1332 26AWG 7/0.16 OD1.15 White 200℃, white
Length: 480±10mm
Application:
Temperature measurement or temperature monitoring.
