| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million Pieces per Year |
| Brand: | JP Sensor | Usage: | Human Body Surface Temperature Measurement |
|---|---|---|---|
| Charateristic: | Reusable | Operating Temperature Range: | 0℃~50℃ |
| Application: | Medical Monitoring Equipment In Hospital | NTC Thermistor: | R25=2.252KΩ |
| Coating: | Epoxy Resin | Warranty: | 2 Years |
| OEM/ODM: | Support | Customization: | Support |
| High Light: | Medical Temperature Sensor 2.252K jingpu,jingpu Medical Temperature Sensor 2.252K,jingpu R25 probe temperature |
||
2.252KΩ Skin Medical Temperature Sensor For Human Body Surface Temperature Measurement
Product Details:
Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, Mono jack connector 6.3mm or custom connector according to the customer’s requirement. The rated resistance value is 2.252KΩ. The total length is 3Meters, and the sensor measuring tolerance is within (25~45)℃ ±0.1℃. Used for monitors, suitable for YSI400 series products replacement.
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUSφ12*2 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |
| 5 | Plug | 6.3MP-φ6.3*31-50 Single Audio Plug | 1 | gray |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC1500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |

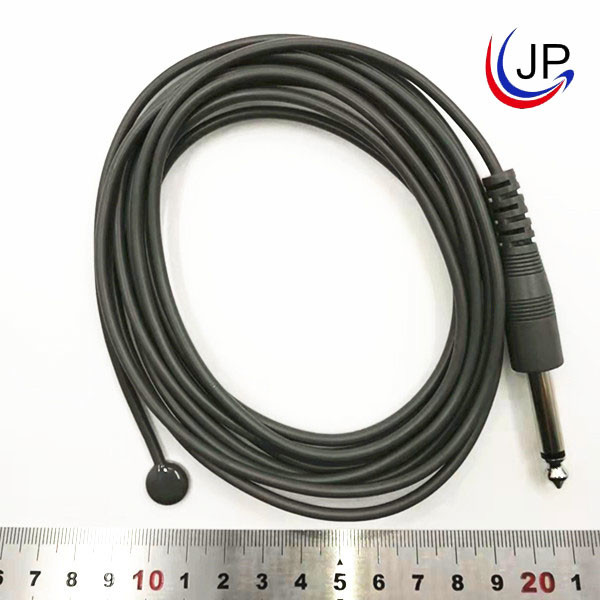

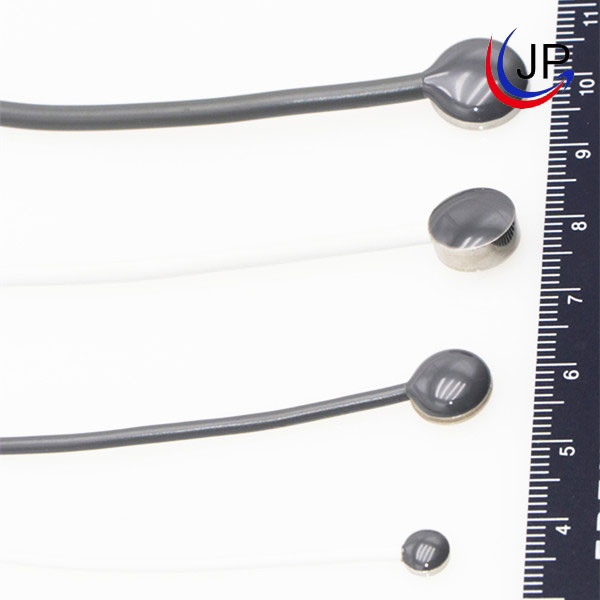

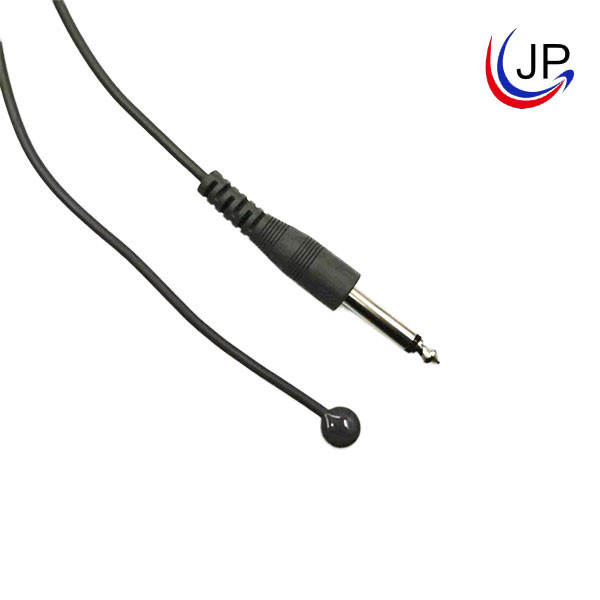

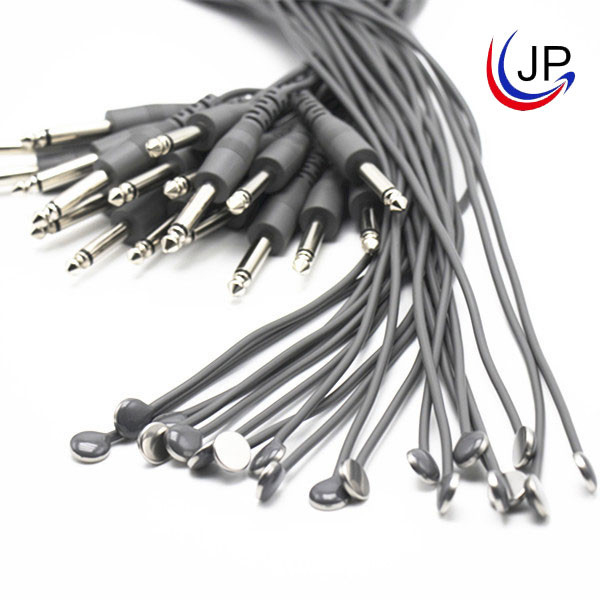

Product Images:
