| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | JP407 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Miniature Medical Temperature Sensor | Model Number: | JP407 |
|---|---|---|---|
| Certification: | CE, ISO13485, ISO9001 | Material: | Epoxy Resin, NTC Thermistor, Enamelled Wire |
| OEM/ODM: | Available | Shipping: | By Air, By Sea, Express |
| Customization: | Available | Warranty: | 2 Years |
| Package: | Standard Package | Operating Temperature Range: | 0℃~100℃ |
| High Light: | 3935 Medical ntc temperature probe,jingpu 3935 Miniature ntc temperature probe,jingpu 3935 Resin ntc thermistor sensors |
||

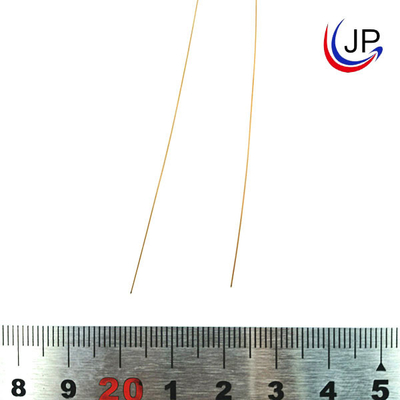

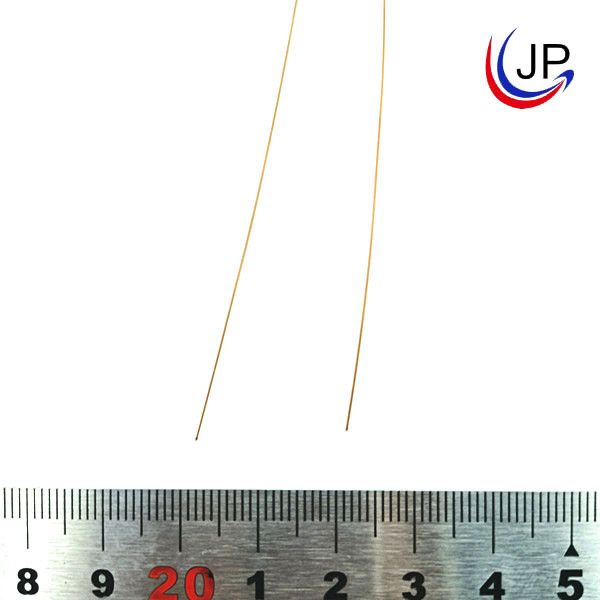

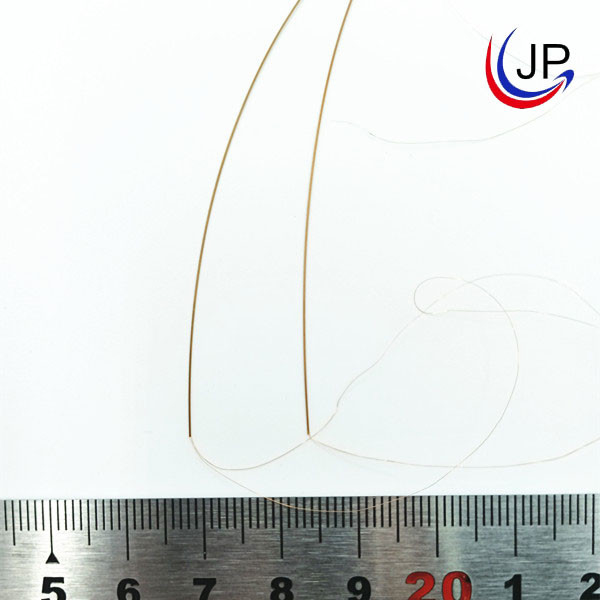

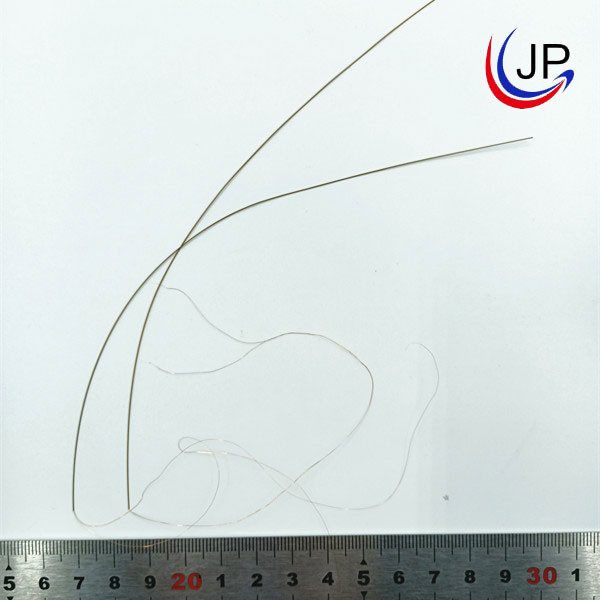

Epoxy Resin Miniature Medical NTC Temperature Probe For Temperature Monitoring
Brief Instruction:
The item is one NTC thermistor miniature medical temperature sensor. The miniature medical temperature sensors are encapsulated with epoxy in polyimide tubes with OD 0.3mm. It takes the enamelled wire with OD 0.05mm as the lead wire. The miniature thermistor sensor resistance value shall be calibrated one by one.
Features:
Miniature designed
Typical diameter: PIφ0.30mm,
Typical wire size OD0.05mm
Fast thermal response time, for example, several seconds
Operating temperature range: 0℃~100℃
Application:
Ablation temperature monitoring
Blood temperature monitoring
Incubators, patient warming, and endovascular cooling sensors
Structure and Dimensions:(Unit: mm)
Specification:
| NO. | Name | Specification | Remarks |
| 1 | Typical Diameter | PIφ0.30mm | / |
| 2 | Typical wire size | OD0.05mm | / |
| 3 | Operating temperature range | 0℃~100℃ | / |

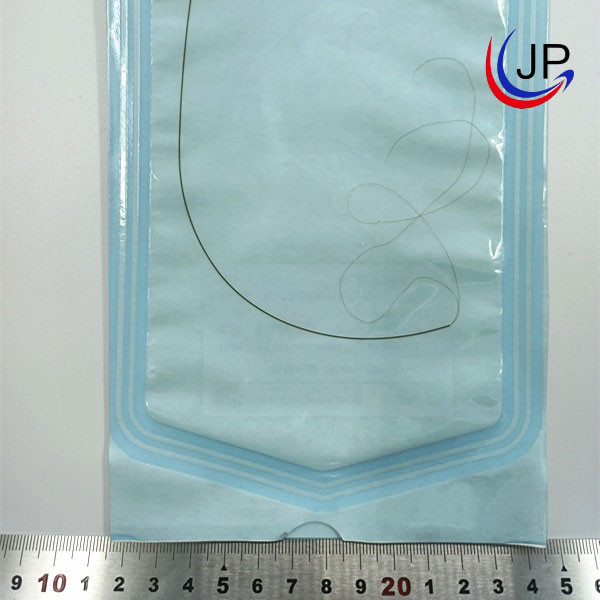

Standard packing (inner packing): 1 pcs/polybag
Operation Notice:
1. Application: Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Avoid excessive heat shock, The hot air blow should beat at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
