| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Micro NTC Thermistor Micro Temperature Sensor | Operating Temperature Rang: | 0℃~100℃ |
|---|---|---|---|
| Warranty: | 2 Years | OEM/ODM: | Available |
| Customization: | Available | Shipping: | By Air, By Sea, Express |
| Packing: | Standard Packing | Material: | Epoxy Resin, NTC Chip, Enamelled Wire |
Micro NTC Thermistor Medical Temperature Sensor For Temperature Measurement
Brief Introduction:
The item is one miniature medical temperature sensor NTC thermistor. The miniature medical temperature sensors are encapsulated with epoxy in polyimide tubes OD 0.3mm&OD0.6&OD1.0. It takes the enamelled wire OD 0.05*2mm&OD0.12*2&OD0.2*2 as the lead wire.
Features:
Miniature designed
Fast thermal response time, for example, several seconds
Operating temperature range: 0℃~100℃
Application:
Ablation temperature monitoring
Blood temperature monitoring
Incubators, patient warming, and endovascular cooling sensors
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Tube | PI φ1.0 | 1 | / |
| 4 | Wire | Enamelled wire OD0.12*2 | 1 | / |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice:
1. Application: Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Avoid excessive heat shock, The hot air blow should beat at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
4. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
5. According to the structure of the Glass coating NTC thermistor, when the end-user is installed, to avoid the epoxy head being subjected to too much tensile force and bending force from the lead wire, The lead wire shall be controlled at a bending point or a force point on a lead wire 6mm or less below the sealing head. So as not to hurt the chip, resistance drifting and even open circuit, especially when the component is heated.

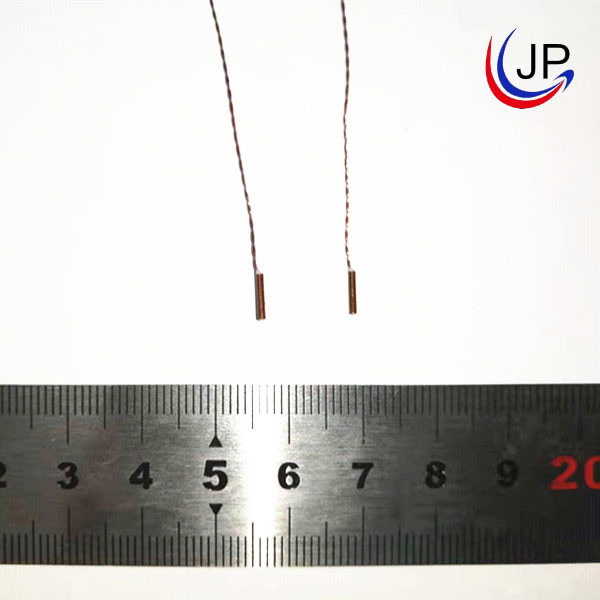

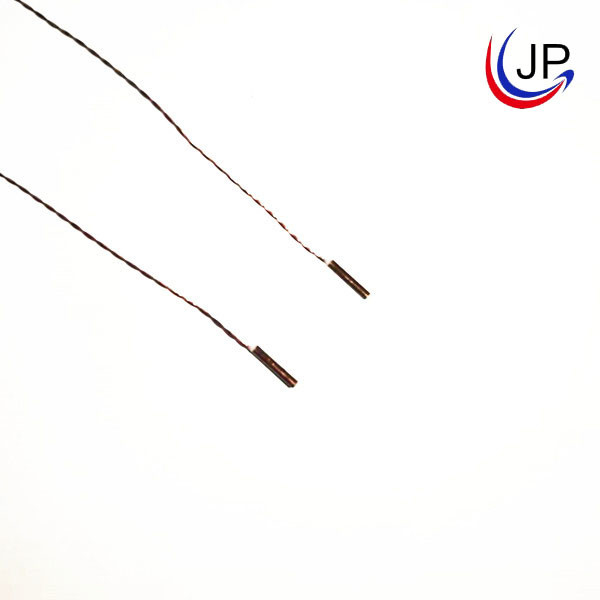

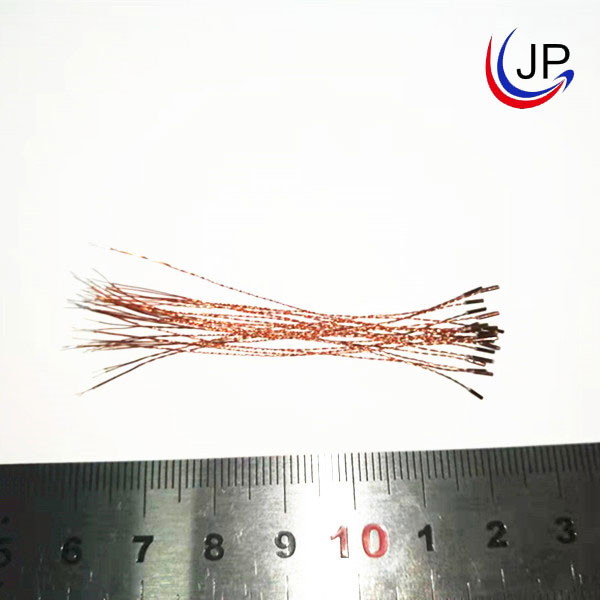

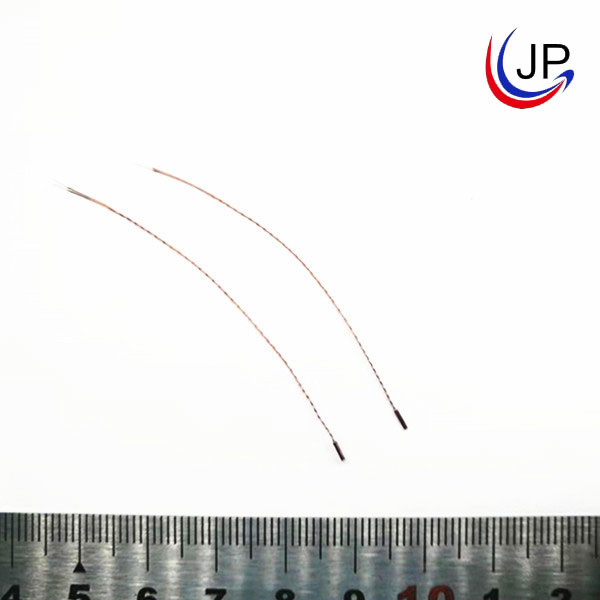

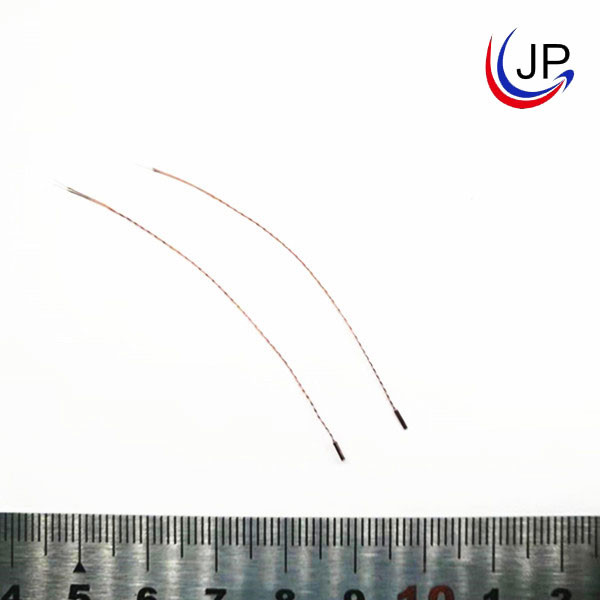

Product Images:
