| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ Or 10KΩ | Plug: | 2-pin Aviation Plug Or Custom Connector |
|---|---|---|---|
| Tolerance: | ±0.1℃ | Certification: | CE, ISO9001, ISO13485, RoHS |
| Operating Temperature Range: | 0℃~50℃ | OEM/ODM: | Yes |
| Shipping: | Air Freight, Sea Freight, Express | Usage: | Human Body Surface Temperature Measurement |
| High Light: | 10K temperature sensor medical device jingpu,jingpu 10K temperature sensor medical device,jingpu 2.252K 10k ohm ntc thermistor |
||
2.252K 10K Reusable Skin Temperature Sensor Medical Device For Mindray Series Aviation Plug
Product Description:

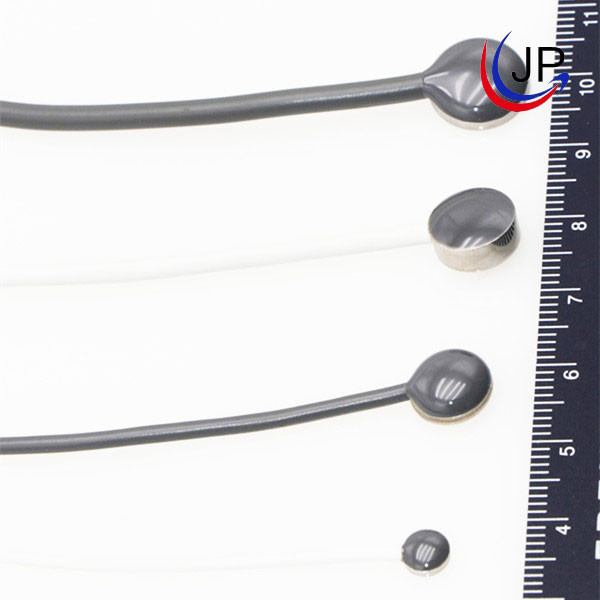

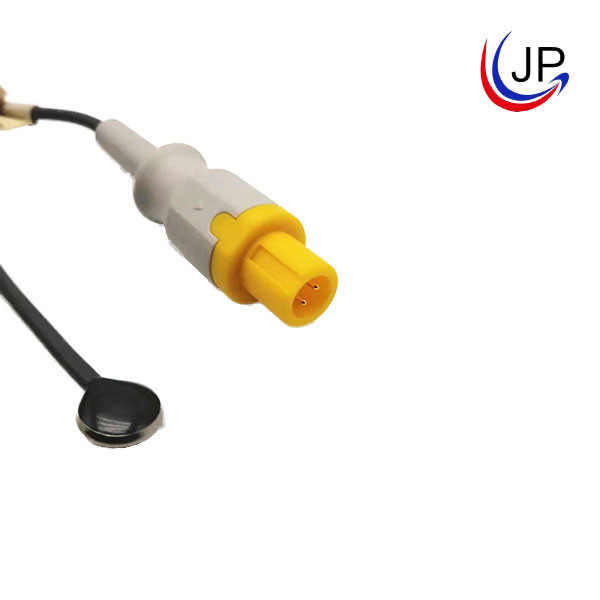

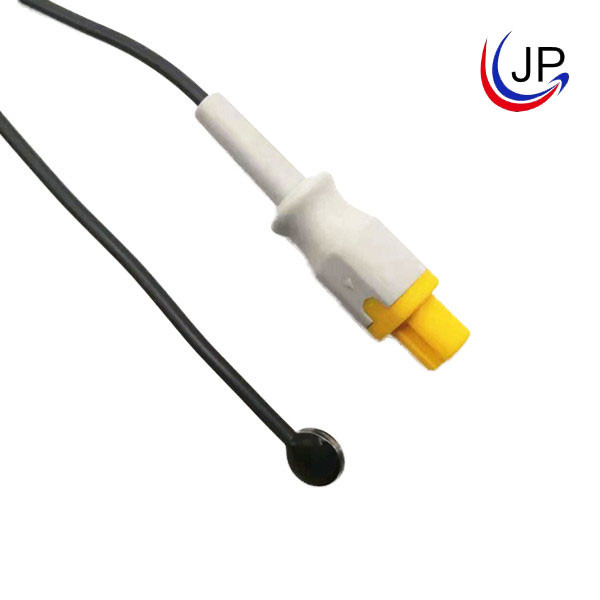

Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The probe is epoxy resin encapsulated and metal disk, 2 pin aviation plug, or customized connector according to the customer’s requirement. The nominal resistance value is 2.252KΩ or 10KΩ. The total length is 3Meters, and the sensor measurement tolerance is within ±0.1℃. Used for monitors, suitable for Mindray series products replacement.CE certification.
Features:
Human body surface temperature measurement
Reusable
Tolerance: (25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUSφ12*2 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |

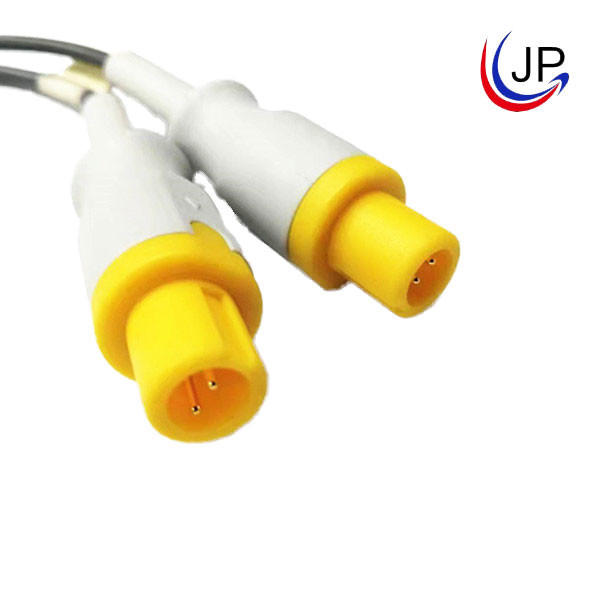

| 5 | Plug | 2-pin aviation plug | 1 | Gray+Yellow |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC1500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice:
1. Application: Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
