| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 Pieces |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 10KΩ Or 2.252KΩ | Toterance: | ±0.1℃ |
|---|---|---|---|
| Length: | 3 Meters | Operation Temperature Range: | 0℃~50℃ |
| Material: | Epoxy And Metal Disk | Plug: | 2 Pin Aviation Plug Or Customized Connector |
| ODM/OEM: | Available | Customization: | Available |
| Shipping: | Air Freight, Express, Sea Freight | Applied For: | Human Body Surface Temperature Measurement |
| High Light: | jingpu Skin thermistor temperature sensor,jingpu thermistor temperature sensor 2.252K,jingpu 10K temperature sensor sensor |
||

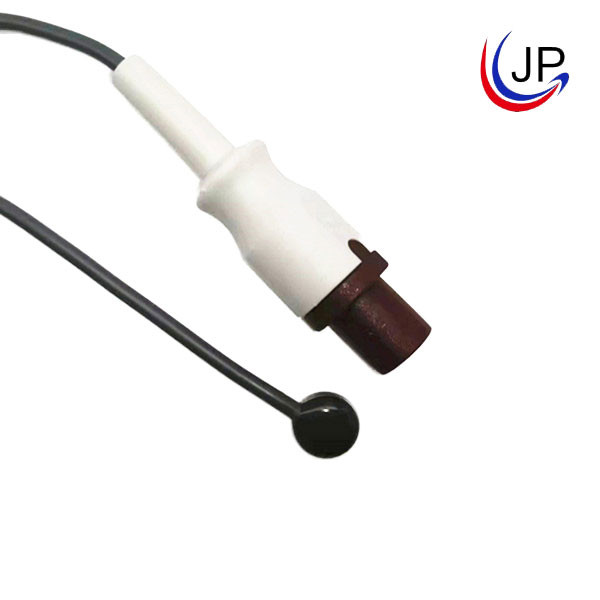

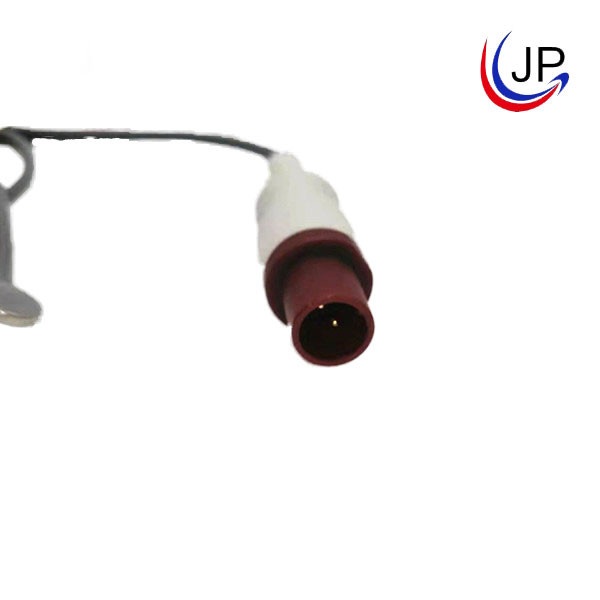

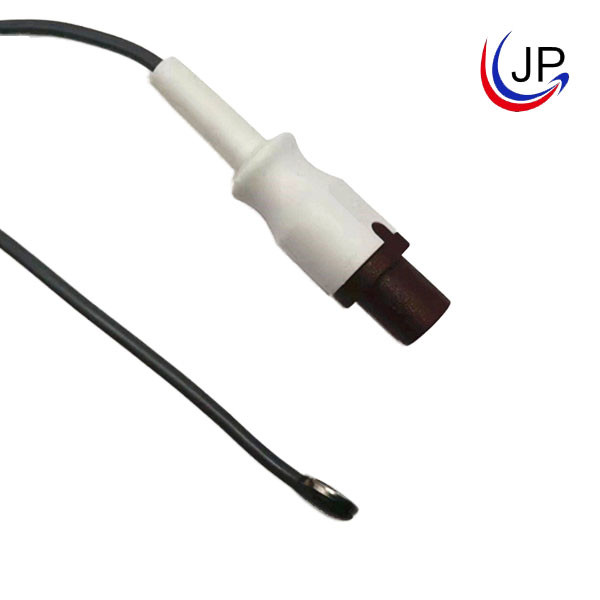

Skin Thermistor Temperature Sensor 2.252K 10K Philip Series Epoxy Coated NTC Chip
Brief Introduction:
This product is widely used for human body surface temperature measurement. Its probe is epoxy, metal disk, 2-pin aviation plug, or customized connector according to the customer’s requirement. The rated resistance value is 2.252KΩ or 10KΩ. The total length is 3 Meters, and the tolerance is within ±0.1℃. Used for monitors, suitable for Philip series products replacement. CE certification.
Features:
Human body surface temperature measurement
Operating temperature range: 0℃~50℃
Reusable
±0.1℃ (25~45℃)
Application:
Medical monitoring equipment

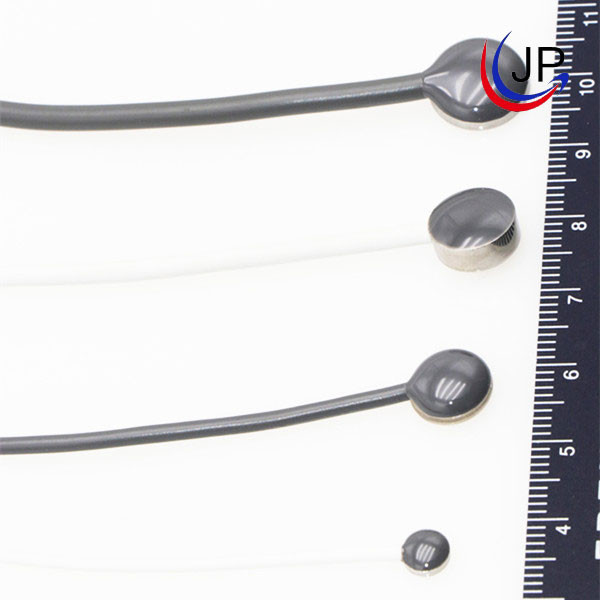

Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUSφ12*2 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |
| 5 | Plug | 2-pin aviation plug | 1 | Gray+Brown |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max. Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC1500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice:
1. Application: Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
