| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ Or 10KΩ | Tolerance: | ±0.1℃ |
|---|---|---|---|
| Composition: | Epoxy Coat And 2 Pin Aviation Plug | Temperature Tolerance: | （25~45）℃±0.1℃ |
| Operating Temperature Range: | 0℃~50℃ | OEM/ODM: | Available |
| Customization: | Available | Shipping: | Air Freight, Express, Sea Freight |
| Certification: | CE, ISO13485 | Plug: | 2-pin Aviation Plug |
| High Light: | jingpu CE Medical Temperature Sensor,jingpu Medical Temperature Sensor 2.252K,jingpu 10K thermal sensors in medical equipment |
||

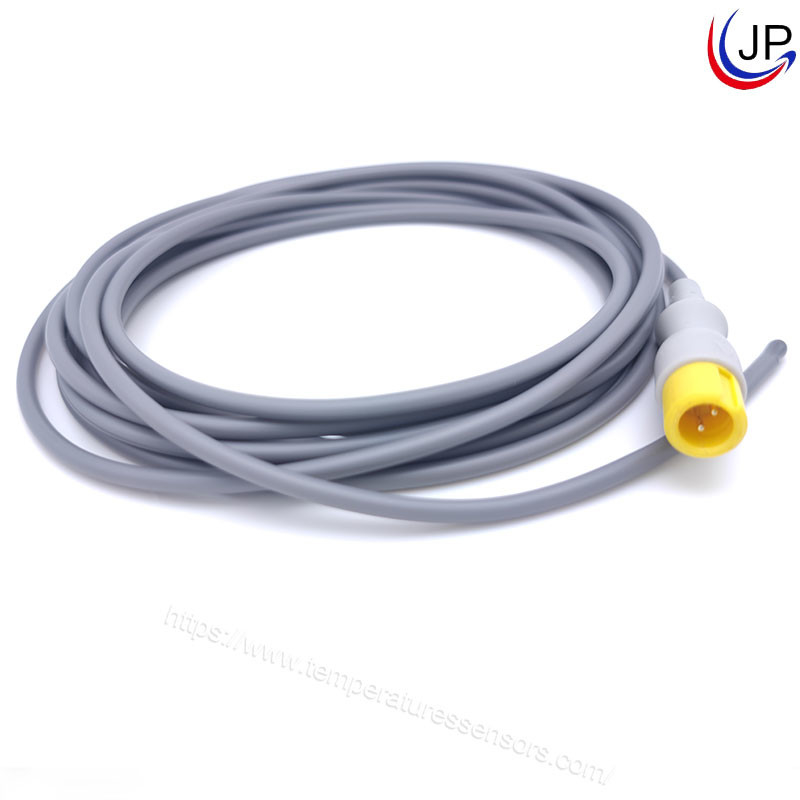

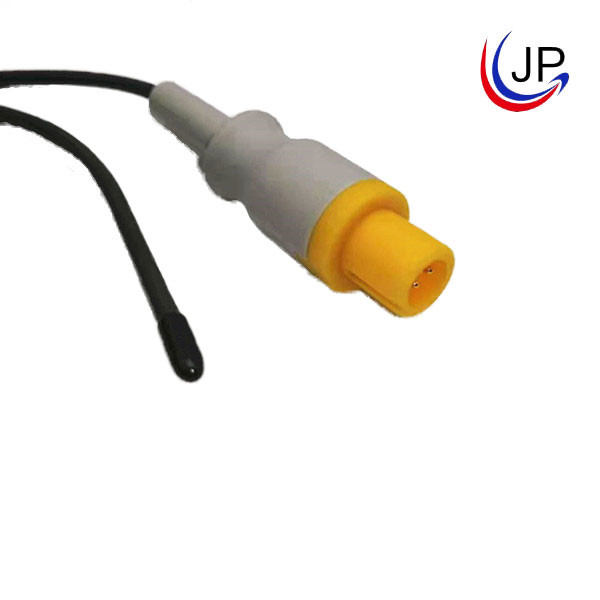

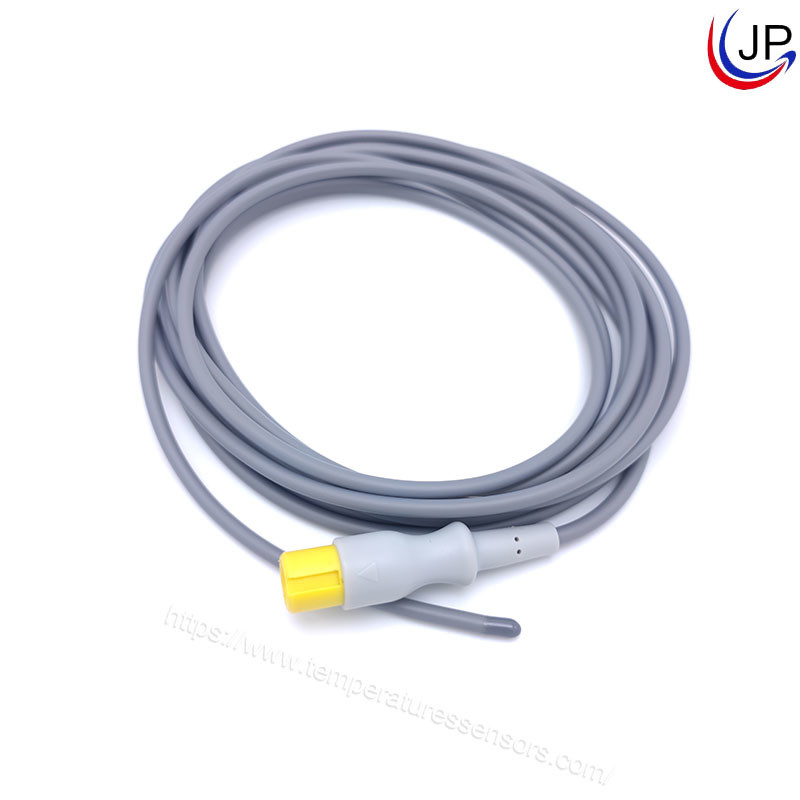

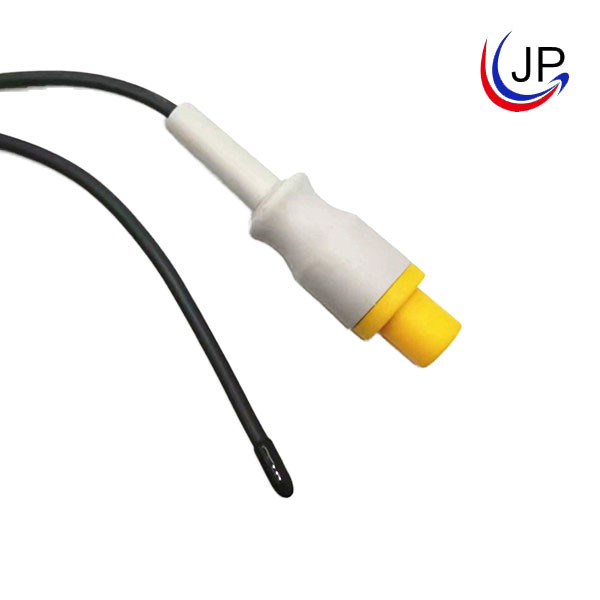

2.252K 10K Mindray Series Aviation Plug Epoxy Coated NTC Chip Medical Temperature Sensor For Human Body Cavity
Brief Introduction:
Medical human body cavity temperature sensor ( esophageal/ rectal temperature probe) be used for human body cavity temperature measurement, Used for the patient monitors. The sensor is composed of an epoxy bead and 2 pin aviation plug. Meanwhile, we also accept customized plugs or connectors. The rated resistance value is 2.252kΩ or 10kΩ. The measured temperature tolerance within ±0.1℃ is compatible with the replacement Mindray series sensor. CE certification
Features:
Epoxy encapsulation
Reusability
Temperature tolerance
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC chip | 1 | / |
| 2 | Probe | Epoxy Resin | 1 | gray |
| 3 | Wire | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |
| 4 | Plug | 2 pin aviation plug | 1 | Gray+Yellow |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC1500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
