| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485 |
| Model Number: | JP404 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 10KΩ Or 2.252KΩ | Tolerance: | （25~45）℃±0.1℃ |
|---|---|---|---|
| Length: | 0.7&0.9Meters | Operating Temperature Range: | 0℃~50℃ |
| Application: | Medical Monitors | ODM/OEM: | Supportive |
| Certificate: | CE | Customization: | Supportive |
| High Light: | jingpu Medical Monitors disposable temperature sensor,jingpu disposable temperature sensor 2.252K,jingpu 10K disposable temperature probes |
||

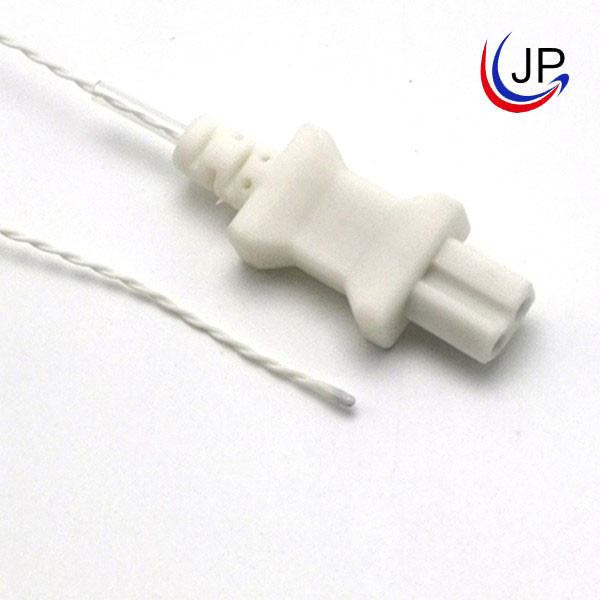

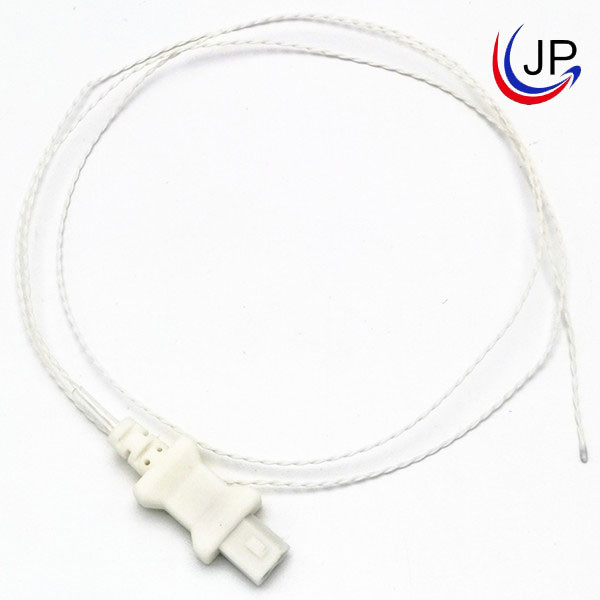

Medical Monitors Disposable Temperature Sensor 2.252K 10K
Brief Introduction:
The rated resistance value is from 2.252KΩ or 10KΩ. The total length is 0.7&0.9Meters, and the sensor measuring tolerance is within ±0.1℃. Used for monitors, suitable for YSI400 series products replacement.
Features:
DisposableTolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Applicable to Medical monitors
Structure and Dimensions:(Unit: mm)
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | 静止空气中 AC500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice:
1. Application: Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Storage Temperature -10℃～40℃,≤75%RH； Avoid a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
