| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP404 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R37℃=14.054KΩ±0.5% | B Value: | B0/50=3435±1% |
|---|---|---|---|
| Operating Temperature Range: | 0℃~60℃ | Application: | Cardiothoracic Surgery, Laboratory Animal Researchurinary CatheterS, Etc |
| Component: | Epoxy Resin, PI φ0.5， NTC Chip, Enamelled Wire OD 0.12*2 | ||
| High Light: | jingpu B0 50 Medical Temperature Sensor,jingpu Medical Temperature Sensor 3435,jingpu 0.5mm NTC Thermistor |
||
14.054Kohm B0 50 Medical Temperature Sensor 3435 PI Max 0.5mm Micro NTC Thermistor
Product Description:

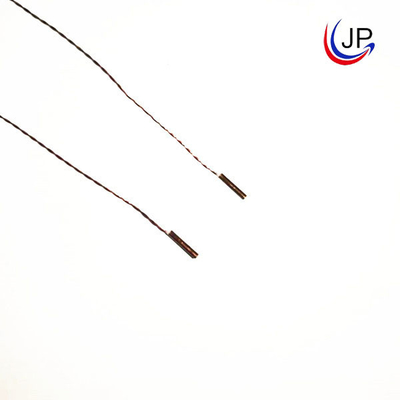

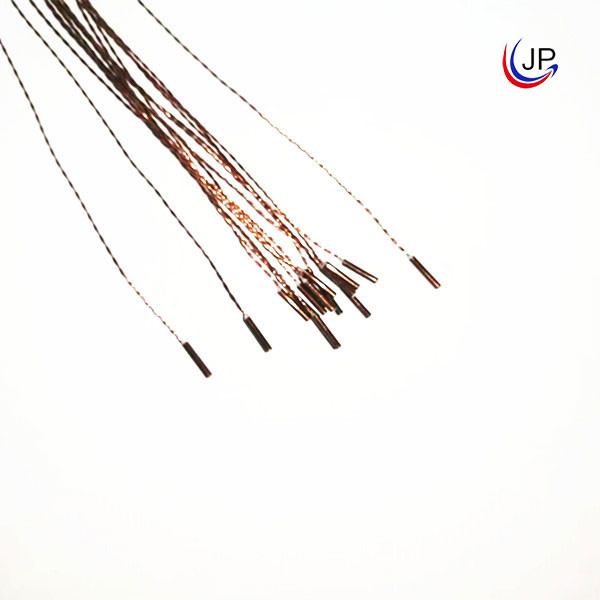

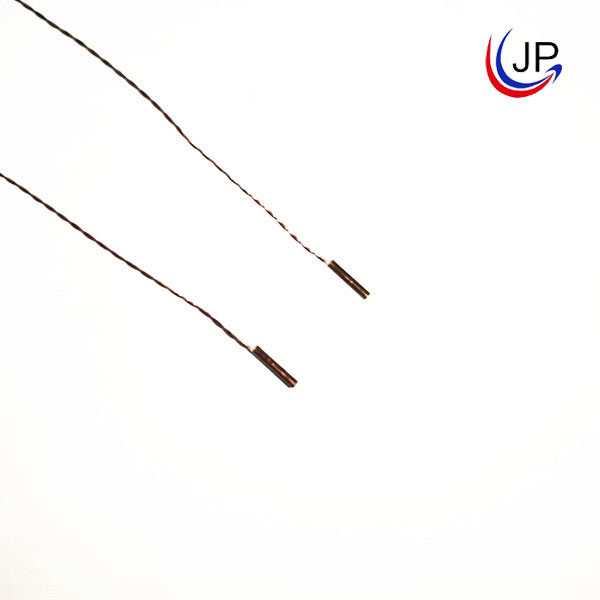

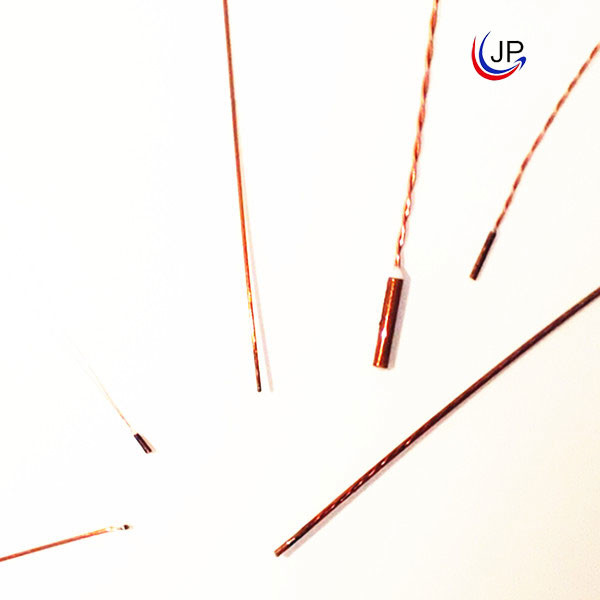

This product is a miniature medical temperature sensor NTC thermistor. Once the miniature chip is soldered, it is encapsulated with a polyimide tube with an outer diameter of Maxφ0.5. The inside of the sleeve is filled with epoxy resin, and the outer diameter of the lead is OD0.12*2. enamelled wire.
Features:
Comply with RoHS
Operating Temperature Range: 0℃~60℃
Measurement Tolerance: 25℃~45℃ ±0.1℃
R37℃=14.054KΩ±0.5%
B25/85=3435±1%
Miniature
Fast Response
Application:
Applied for urinary catheters, laboratory animal research, cardiothoracic surgery, etc.
Structure and Dimensions:(Unit: mm)
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 14.054 | kΩ |
| (B value) | B25/85 | +25℃±0.02℃, +85℃±0.02℃ | 3435 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤5 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC300V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
