| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP404 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ±0.1℃ | Operating Temperature Range: | 0℃~60℃ |
|---|---|---|---|
| Tolerance: | (25℃~45℃) ±0.1℃ | B25/85: | 3976±0.5% |
| Application: | Applied For Urinary Catheters, Cardiothoracic Surgery, Laboratory Animal Research, Etc | OEM/ODM: | Available |
| Feature: | Miniature/ Fast Response/ Comply With RoHS | Shipping: | Air Freight, Sea Freight, Express |

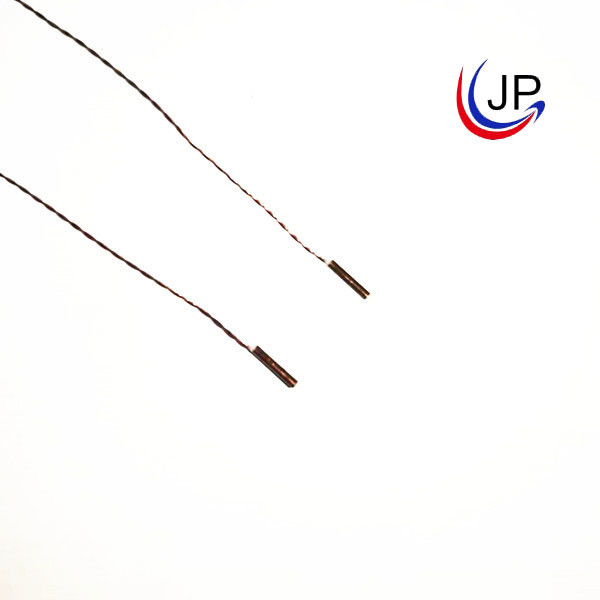

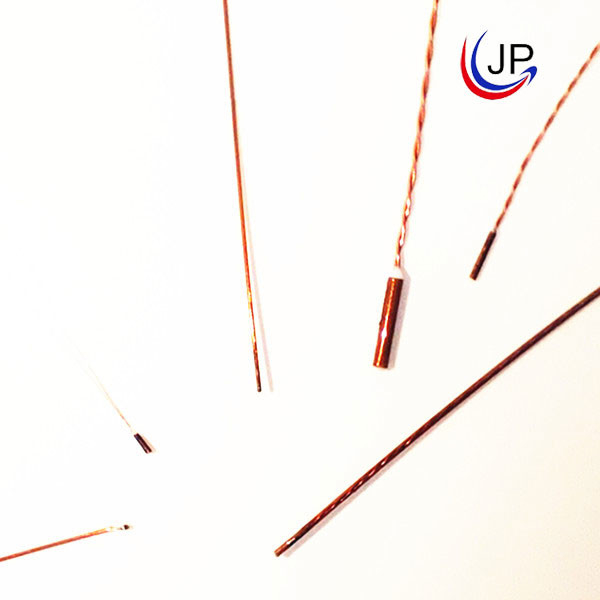

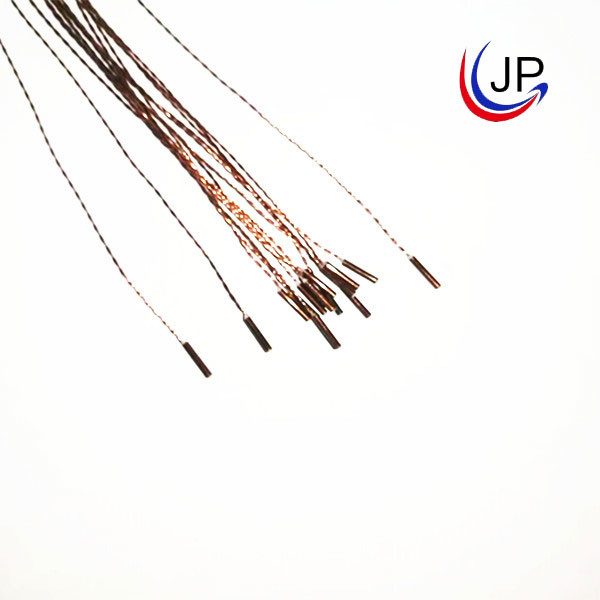

2.252KΩ 3976 Polyimide Max 1.0mm Epoxy Resin Encapsulated Micro NTC Chip Thermistor
Brief Introduction:
This product is a miniature medical temperature sensor NTC thermistor. Once the miniature chip is welded, it is encapsulated with a polyimide tube with an outer diameter of Maxφ1.0. The inside of the tube is filled with epoxy resin, and the lead is encapsulated by OD0.12*2. enamelled wire.
Features:
Comply with RoHS
Miniature
Fast Response
Operating Temperature Range: 0℃~60℃
Measurement Tolerance: 25℃~45℃ ±0.1℃
R25=2.252kΩ(±0.1℃)
B25/85=3976±0.5%
Application:
Applied for urinary catheters, cardiothoracic surgery, laboratory animal research, etc.
Structure and Dimensions:(Unit: mm)
