| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, RoHS, ISO9001 |
| Model Number: | JP401 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Material: | Epoxy Resin | Chip: | NTC Thermistor |
|---|---|---|---|
| Wire: | 24AWG/1C OD3.1 Sheathed Wire | Application: | Medical Temperature Measurement |
| Temperature Range:: | 0℃~50℃ | Temperature Tolerance: | （25~45）℃±0.1℃ |
| Certification: | CE, , ISO9001, ISO13485, RoHS | Resistance Value: | 10KΩ |
| OEM/ODM: | Available | Shipping: | Air Freight, Sea Freight, Express |
10kΩ NTC Chip Epoxy Medical Temperature Sensor For Human Body Cavity Temperature Measurement
Brief Introduction:
Medical Temperature Sensor for Human Body Cavity Temperature Measurement ( esophageal/ rectal temperature probe) is used for human body cavity temperature measurement, and for patient monitoring. The sensor is composed of epoxy beads and a Mono audio plug of 6.3mm. Plus, we also accept customized plugs or connectors. The rated resistance value is 10kΩ. The measured temperature tolerance is (25~45)℃±0.1℃ and it is compatible with the replacement YSI400 series sensor.
Feature:
Epoxy resin encapsulation
Reusable
Temperature tolerance: (25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit: mm)
| No. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | / |
| 2 | Probe | Epoxy Resin | 1 | Gray |
| 3 | Wire | 24AWG/1C OD3.1 sheathed wire | 1 | Gray |
| 4 | Plug | 6.3MP-φ6.3*31-50 | 1 | Gray |

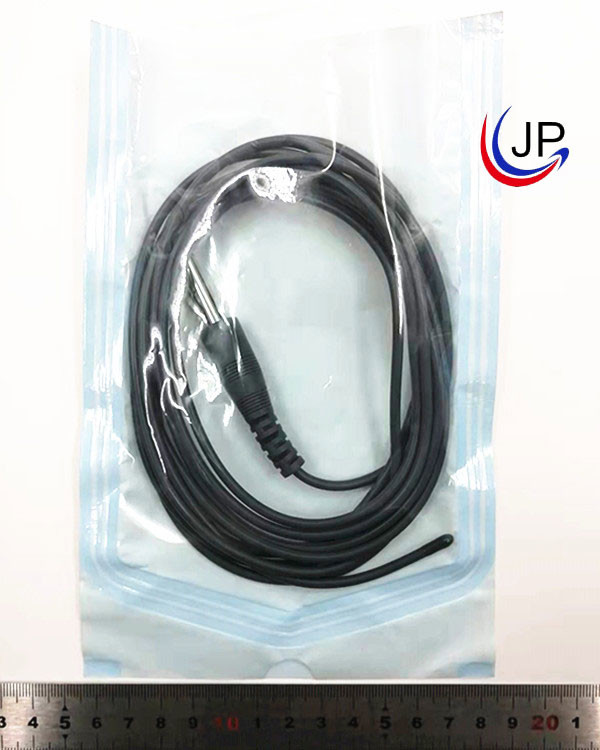

Standard packing (inner packing): 1 pcs/polybag

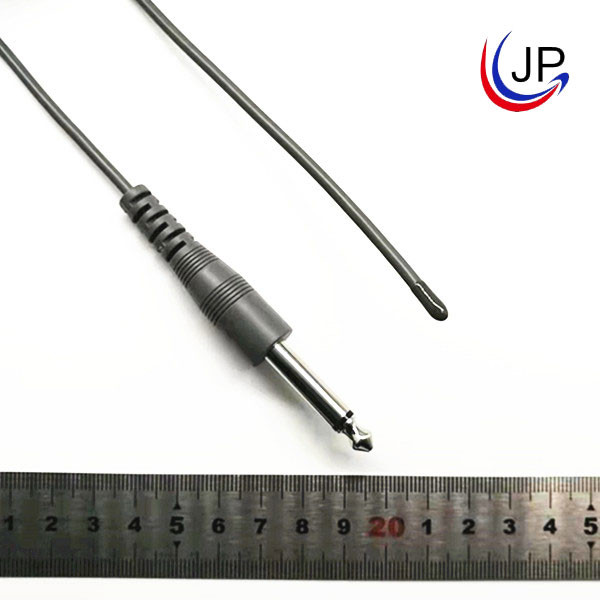

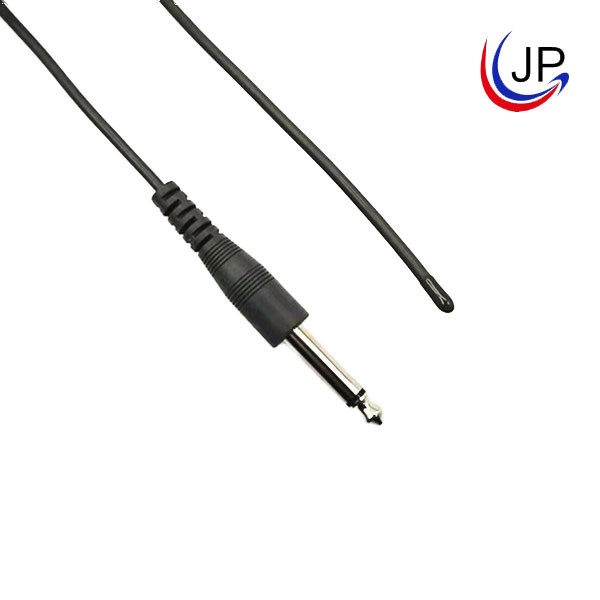

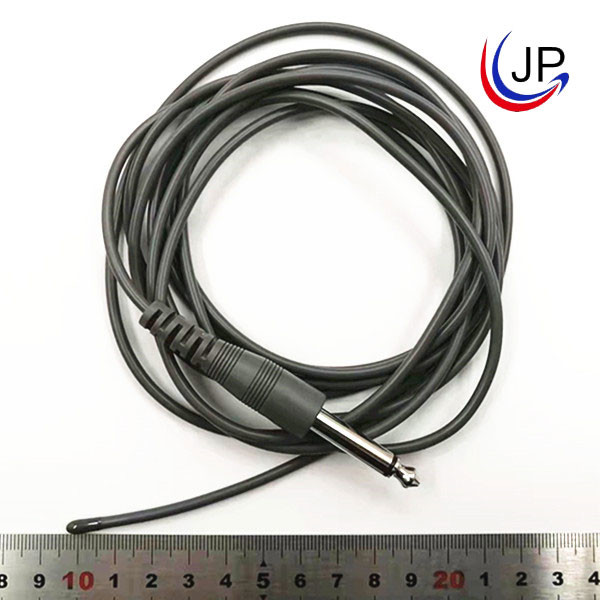

Product Image:
