| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, RoHS, ISO9001 |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Package |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million Pieces per Year |
| Feature: | Reusable | Usage: | Temperature Measurement |
|---|---|---|---|
| Operating Temperature Range: | 0℃~50℃ | Application: | Suitable For Medical Monitoring Equipment |
| NTC Thermistor: | R25=10KΩ | Encapsulation: | Epoxy Resin |
| Warranty: | 2 Years | OEM/ODM: | Available |
| Customization: | Available | Shipping: | Sea Freight, Express, Air Freight |
| High Light: | 10K Medical Temperature Sensor jingpu,jingpu 10K Medical Temperature Sensor,10K Medical Temperature Sensors jingpu |
||
10K Skin Medical Temperature Sensor For Human Body Surface Temperature Measurement
Product Details:

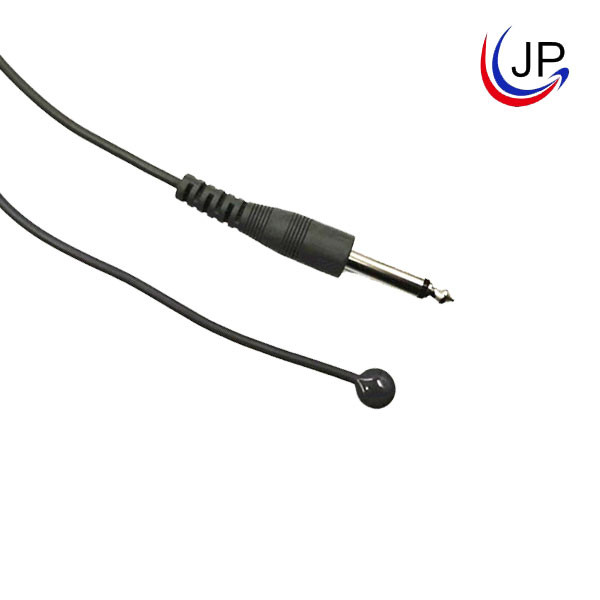

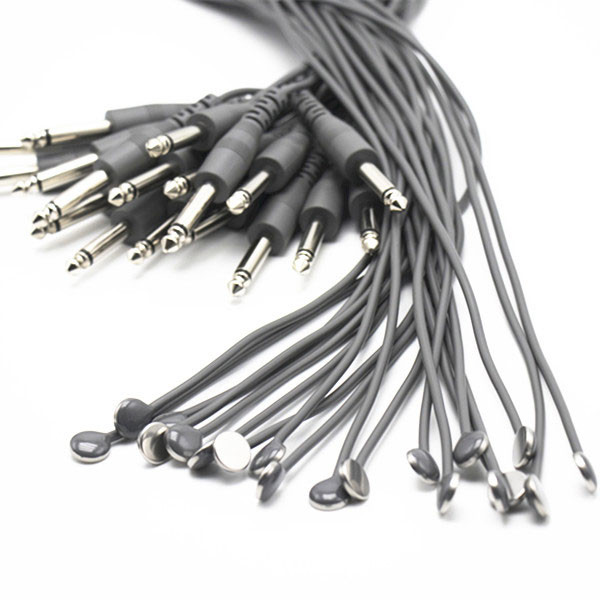

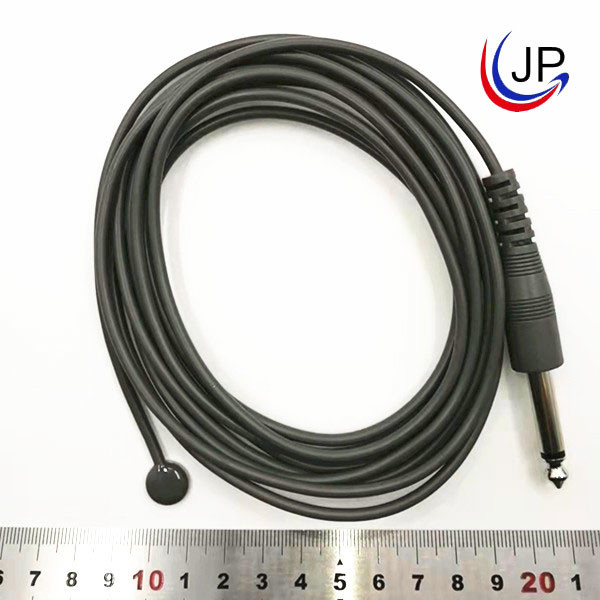

10KΩ Skin Medical Temperature Probe is widely used for body surface temperature measurement of humans. The probe is epoxy and metal, a Mono jack connector of 6.3mm, or a customized connector according to the customer’s requirement. The rated resistance value is 10KΩ. The total length is 3 Meters, and the sensor measurement tolerance is within ±0.1℃. It is used for monitors and is suitable for YSI400 series product replacement.
Features:
Human body surface temperature measurement
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Reusable
Application:
Suitable for medical monitoring equipment

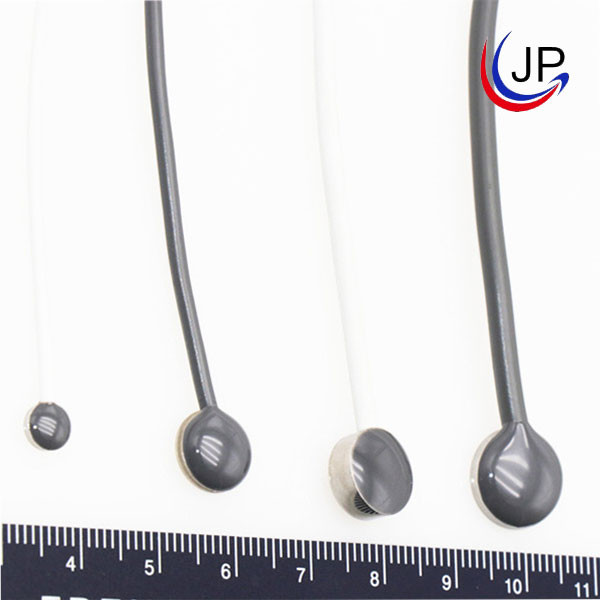

Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=10KΩ |
| 2 | Probe | SUSφ12*2 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | 24AWG/1C OD3.1 Shielded round sheathed wire | 1 | gray |
| 5 | Plug | 6.3MP-φ6.3*31-50 Single Audio Plug | 1 | gray |
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC1500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
