| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Tolerance: | （25~45）℃±0.1℃ | Resistance: | R25℃=2.252kΩ |
|---|---|---|---|
| B Value: | B25/50=3935k | Plug: | 3.5 Audio Plug |
| Chip: | NTC | Encapsulation: | Epoxy Resin |
| Cable: | PVC Cable | Length: | 0.8m |
| Highlight: | jingpu B25/50 Medical Temperature Sensor,jingpu B25/50 Medical Temperature Sensors,B25/50 Medical Temperature Sensor jingpu |
||

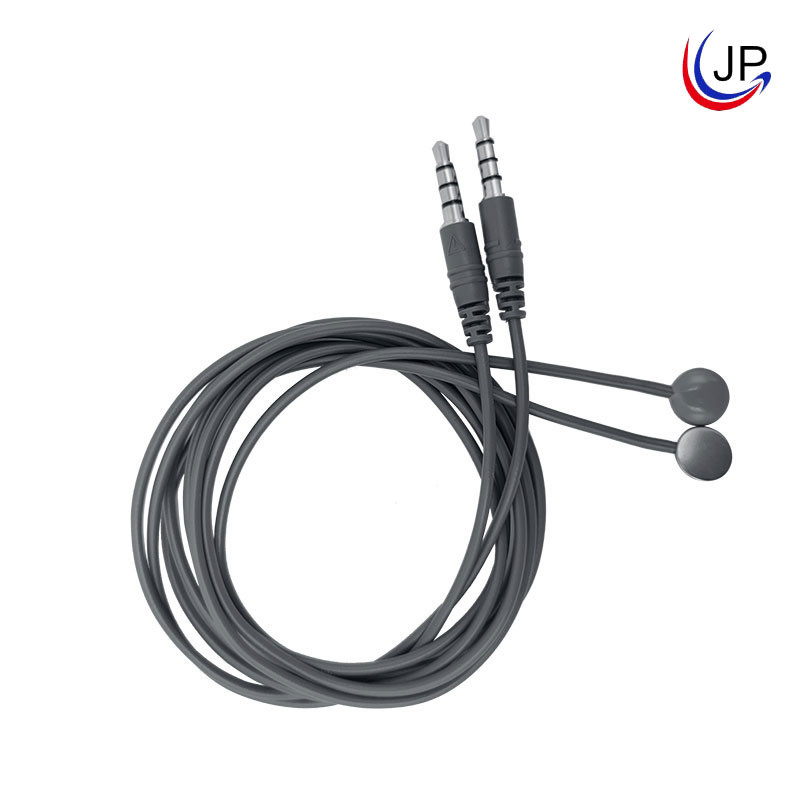

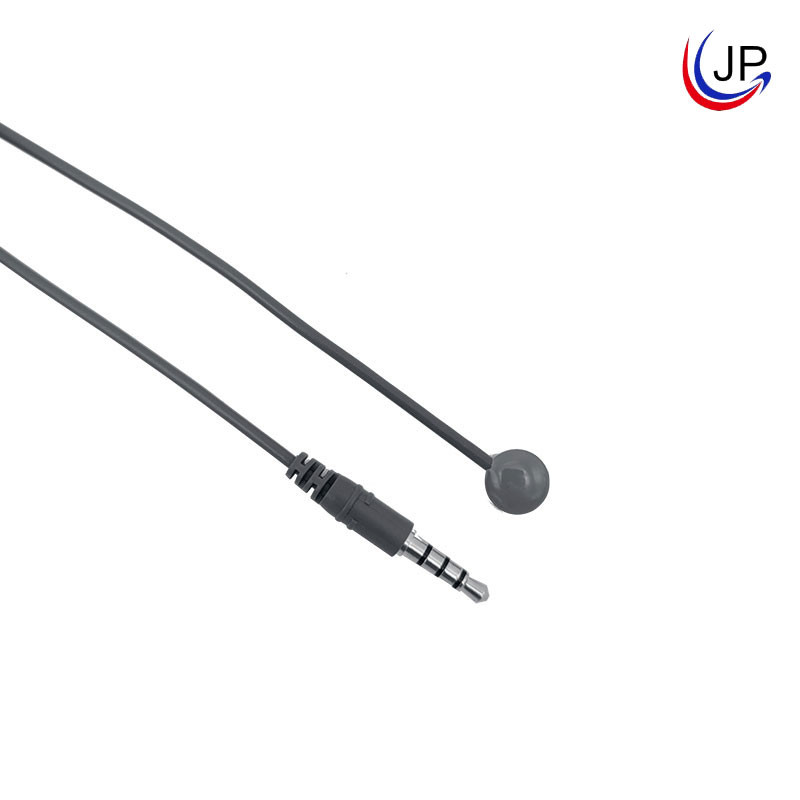

Disposable B25/50 3935k Medical Temperature Sensor 3.5 Audio Plug Skin Medical Temperature Probes
Product Description:
Disposable 3.5 Audio Plug Medical Temperature Probe For Skin is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk. The rated resistance value 2.252KΩ. The total length is 0.8Meters, and the sensor measuring tolerance is within ±0.1℃.
Features:
DisposableTolerance:(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
R25℃=2.252kΩ
B25/50=3935k
3.5 audio plug
Application:
Applicable to Medical monitors
Structure and Dimensions:(Unit: mm)
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(in air)→44℃(in water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
