| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP403 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistancce: | R25℃=2.252kΩ | B Value: | B25/50=3935k |
|---|---|---|---|
| Tolerance: | （25~45）℃±0.1℃ | Operation Temperature Range: | 0℃~50℃ |
| Plug: | PVC Plug | Cable: | PVC Cable |
| High Light: | jingpu 3935k Medical Temperature Sensor,jingpu NTC Medical Temperature Sensor,jingpu 2.252k ntc temperature sensor |
||

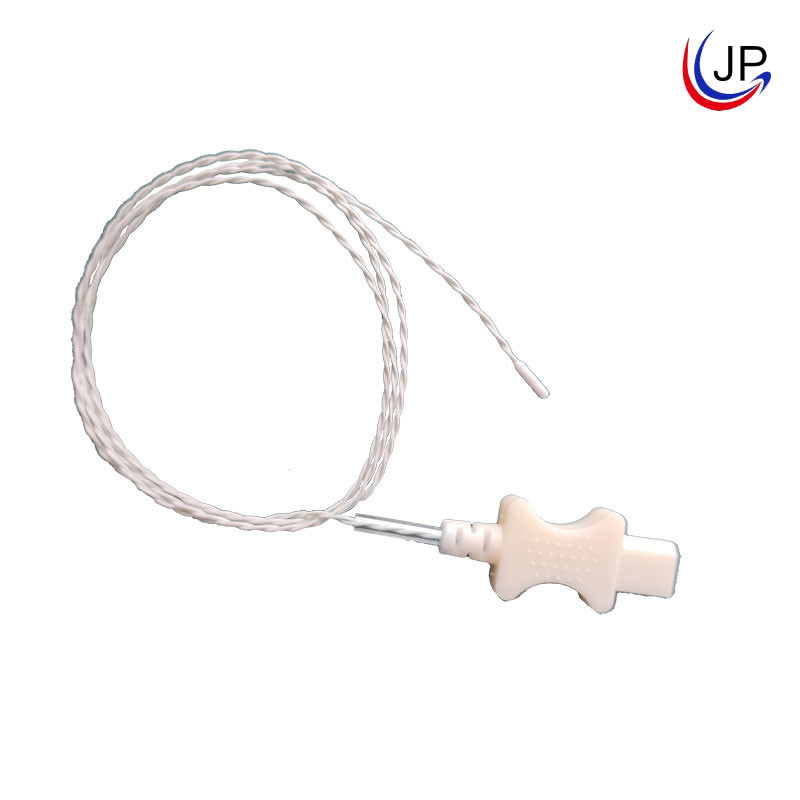

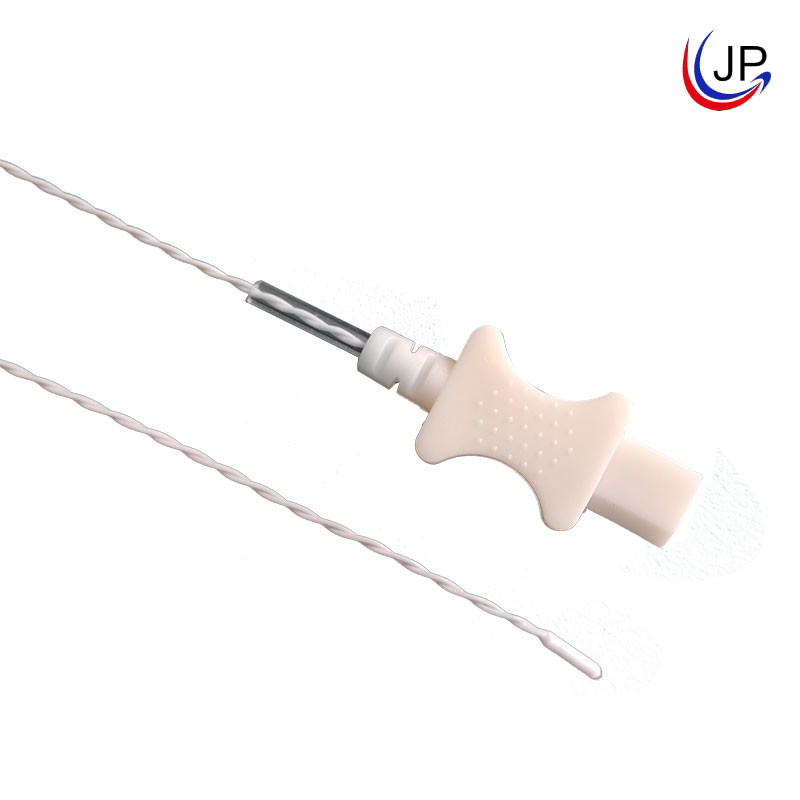

NTC 3935k Medical Temperature Sensor 2.252k Disposable
Product Description:
This product is widely used to measure the body cavity temperature of humans after adding a medical catheter. It can also be used to measure the temperature of the human body surface by adding medical foam stickers. The sensor probe is encapsulated in a plastic case, and the nominal resistance value of the product is 2.252KΩ. At 0.3 ~ 0.9 meters, the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.
Features:
Disposable
High measurement accuracy:(25~45)℃±0.1℃
Operation temperature range: 0℃~50℃
R25℃=2.252kΩ
B25/50=3935k
Application:
Compatible with monitors, applicable to the emergency clinic, intensive care unit, operation room, etc.
Continuous monitoring of patient temperature.
Product Structure and Dimension (Unit: mm):
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
