| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP410 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Color: | Yellow | Nominal Resistance: | R25℃=2.252KΩ |
|---|---|---|---|
| Measurement Tolerance: | (25 ~ 45) ℃ ± 0.1 ℃ | Operating Temperature Range: | 0℃~50℃ |
| Usage: | Ear Canal Temperature Measurement | Customization: | Available |
| After-sale Service: | Quality Assurance | Warranty: | 2 Years |
| High Light: | 2.252K 3935 CE Yellow temperature sensor,3935 2.252K temperature sensor Medical,3935 2.252K temperature sensors Medical |
||

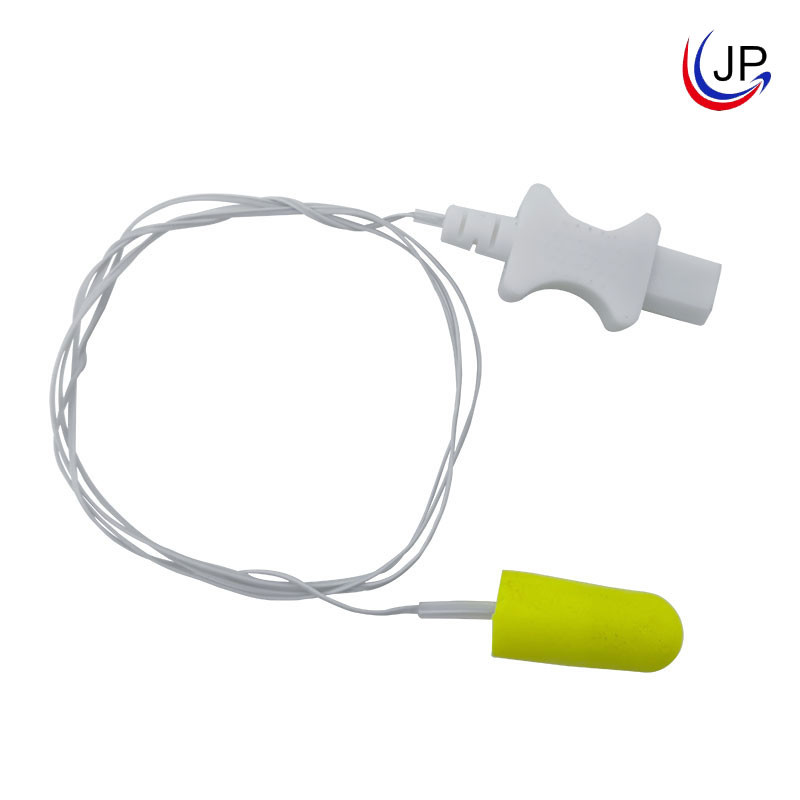

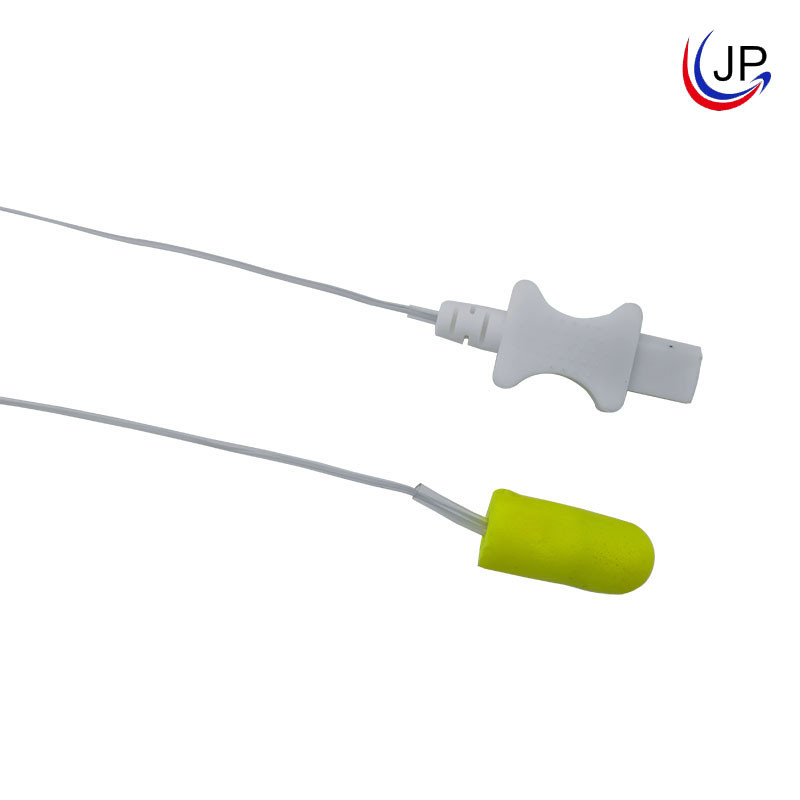

Yellow Temperature Sensor Medical 2.252k Ear Canal Disposable
Product Description:
This product is used to measure the ear canal temperature of the human body. The sensor probe is encapsulated in the memory foam, and the nominal resistance value of the product is 2.252KΩ. The total length of the product is generally 0.7 ~ 0.9 meters, and the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.
Features:
Disposable
High measurement precision:(25~45)℃±0.1℃
Operation temperature range: 0℃~50℃
Can be equipped with an extension connector
R25℃=2.252KΩ
Application:
Compatible with monitors, suitable for emergency, intensive care unit, operating room, etc.
Continuous monitoring of patient temperature.
Structure and Dimensions(mm):
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 or 10 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(水/water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
