| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, RoHS, ISO9001 |
| Model Number: | JP407 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Nominal Resistance Value: | R25℃=2.252KΩ | Tolerance: | (25 ~ 45) ℃ ± 0.1 ℃ |
|---|---|---|---|
| Operation Temperature Range: | 0℃~50℃ | B Value: | B25/50=3935 |
| Chip: | NTC Chip | Tube: | PI Tube |
| Cable: | PVC Cable | Plug: | PVC Plug |
| High Light: | 2.252k ntc thermistor sensors jingpu,jingpu 2.252k ntc thermistor sensors,jingpu Disposable ntc temperature |
||

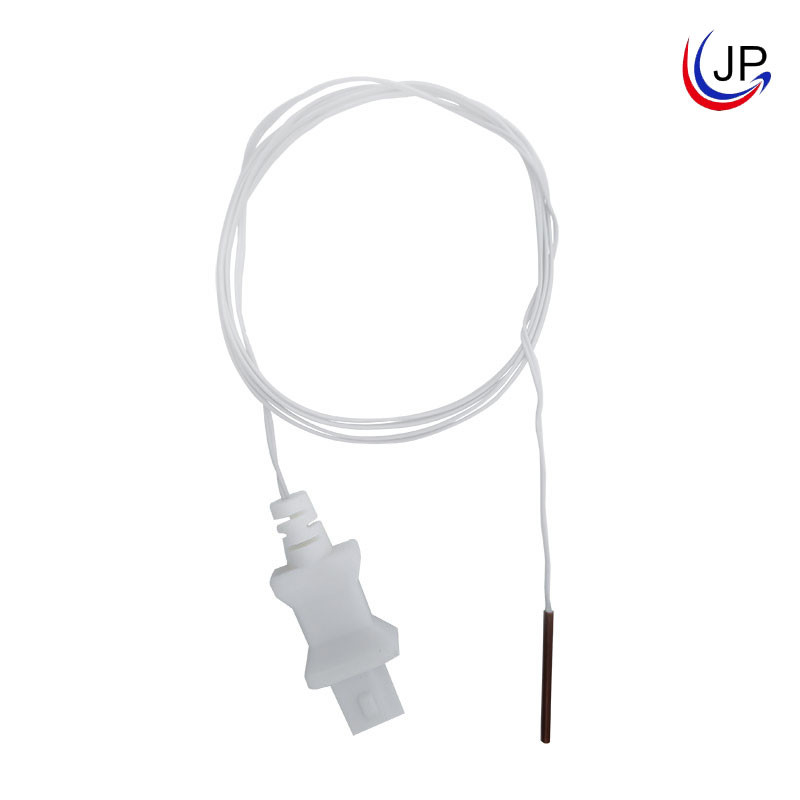

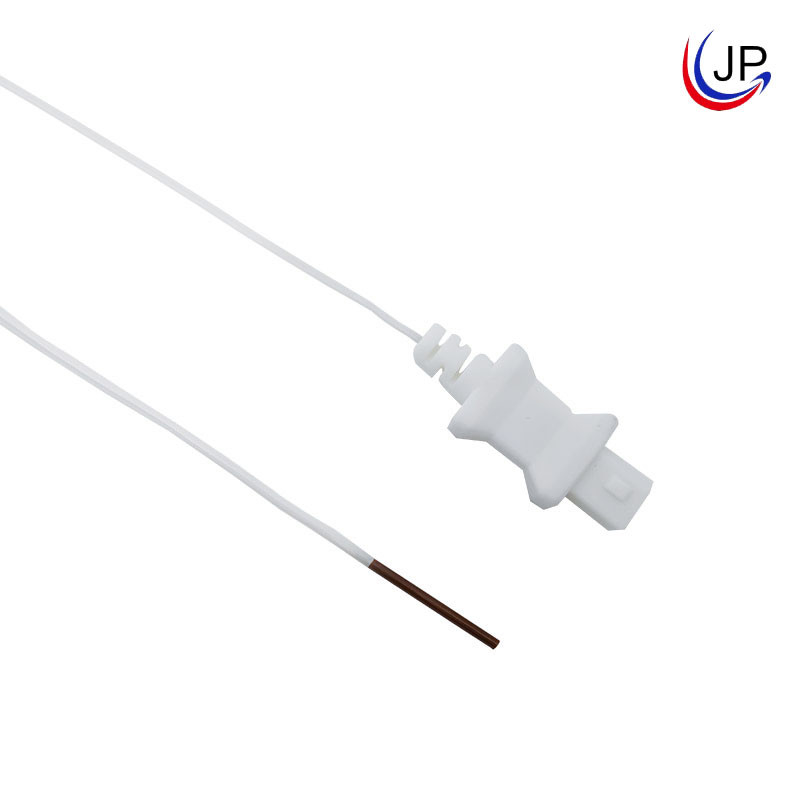

2.252k Medical NTC Thermistor Sensors For Human Body Surface Disposable
Product Description:
The JP407 disposable medical body surface temperature sensor is widely used in the measurement of human body surface temperature. The sensor probe is a polyimide tube, and the nominal resistance value of the product is 2.252KΩ. The total length of the product is generally 0.7 ~ 0.9 meters, and the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.
Features:
Disposable
Tolerance:(25~45)℃±0.1℃
Operation Temperature Range: 0℃~50℃
Can be equipped with an extension connector
R25℃=2.252KΩ
B25/50=3935
With foam sticker
Application:
Compatible with monitors, suitable for emergency clinic, ICU, operation room, etc.
Continuous monitoring of patient temperature.
Structure and Dimensions(mm):
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤60 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC750V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
