| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | USD 5-10 USD per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 2.252KΩ/10KΩ | Tolerance: | ±0.1ºC (25ºC To 45ºC) |
|---|---|---|---|
| Length: | 1500mm | Material Of Sleeve: | PVC |
| Application: | Infant Warmer Infant Incubator | Chip: | NTC Thermistor |
| Probe: | SUS Ф5.6mm | OEM/ODM: | Available |
| High Light: | ODM Medical Temperature Sensor,2.252K Medical Temperature Sensor,5.6mm Diameter Body Temperature Sensor |
||

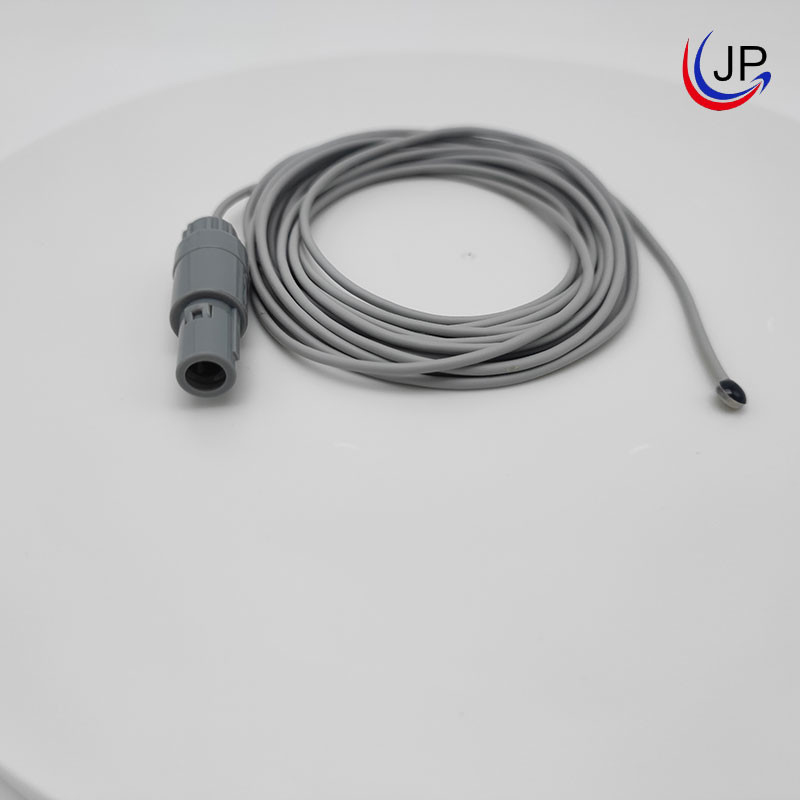

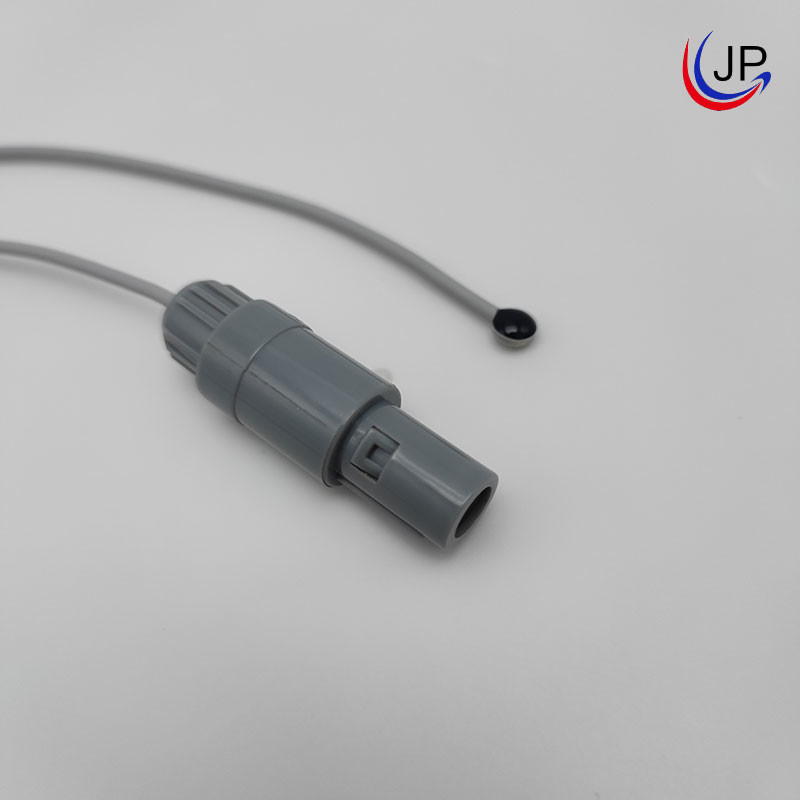

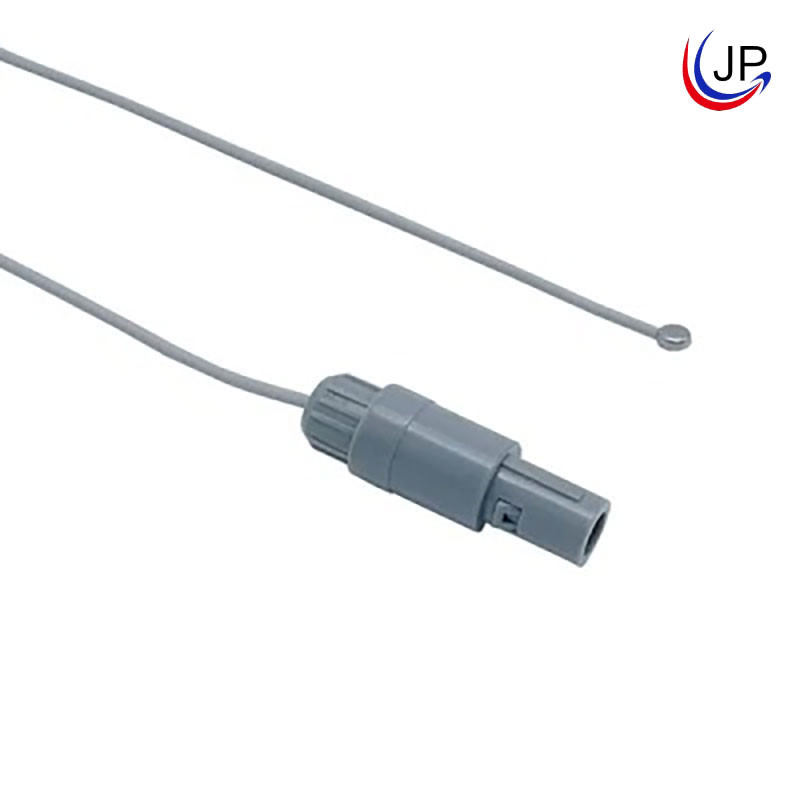

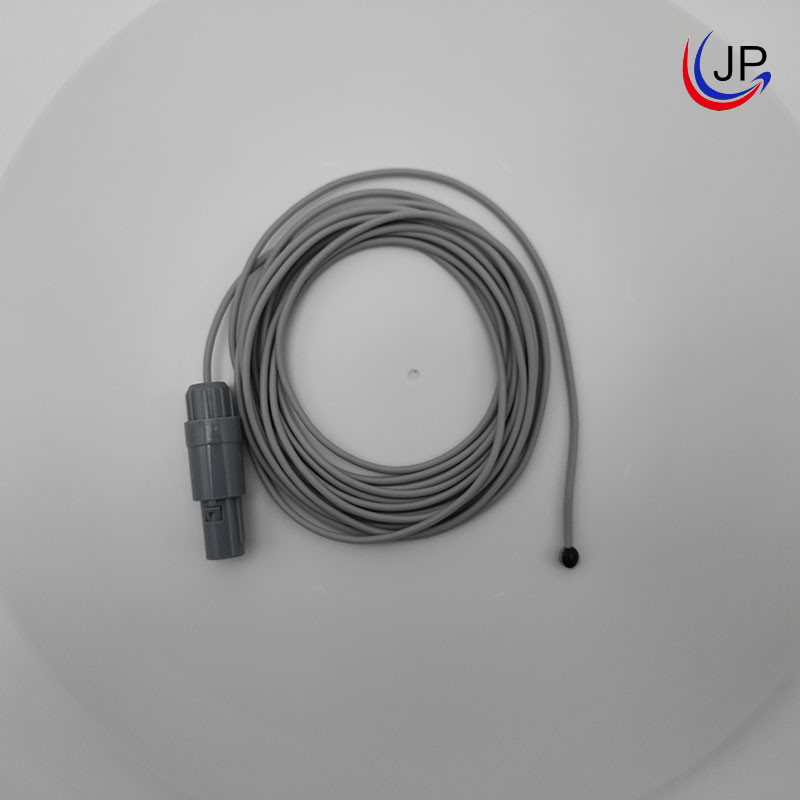

5.6mm Diameter 2.252K Medical Skin Temperature Probe Body Temperature Sensor
5.6mm Diameter 2.252K Skin Temperature Probe
Product Description:
This product is widely applied for the surface temperature measurement of the human body. The probe is epoxy and metal disk, 2 pins aviation plug or custom connector in accordance with customer's requirement. The rated resistance value is 2.252KΩ or 10KΩ. The total length is 1500mm, and the tolerance is within ±0.1ºC (range from 25ºC to 45ºC).
Features:
Used for single-patient temperature management
Compatible Monitor Model: YSI400 Series
Accuracy: ±0.1ºC within a range of 25ºC-45ºC
Electromagnetic compatibility (EMC) in accordance with industry-standard IEC60601-1-2:2007
Length:1500mm
Resistance Type: NTC/YSI400/2.252K@25ºC, NTC/Ohmeda/10K@25ºC
Material of Sleeve: Medical grade PVC.
Monitoring the surface temperature of skin during surgical operations or postoperative recovery
The reflective silver cover with soft foam can prevent the temperature effects from the outside environment
Application:
Clean the surface of the skin before sticking then place the disposable skin temperature probe on the center of the armpit
Human body temperature measurement
Applies for medical monitoring equipment
For Neonatal ICU babies
Structure and Dimensions(mm):
Specification:
| No. | Item name | Material specification | Qty. | Remarks |
| 1 | Chip | NTC thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUS Ф5.6mm | 1 | / |
| 3 | Encapsulation | Epoxy | / | Black |
| 4 | Cable | 28AWG OD2.0mm round sheathed wire | / | Gray |
| 5 | Plug | 2 pins aviation plug | 1 | Gray |
