| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 2.252kohm Or 10kohm | Accuracy: | ±0.02ºC |
|---|---|---|---|
| Application: | Skin Or Body Temperature Measurement | OEM/ODM: | Available |
| Shipping: | Air Freight, Sea Freight, Express | Warranty: | 2 Years |
| High Light: | 2.252kohm Medical Skin Temperature Sensor,2.252kohm Medical Skin Temperature Sensor,10kohm Medical Skin Temperature Sensor |
||

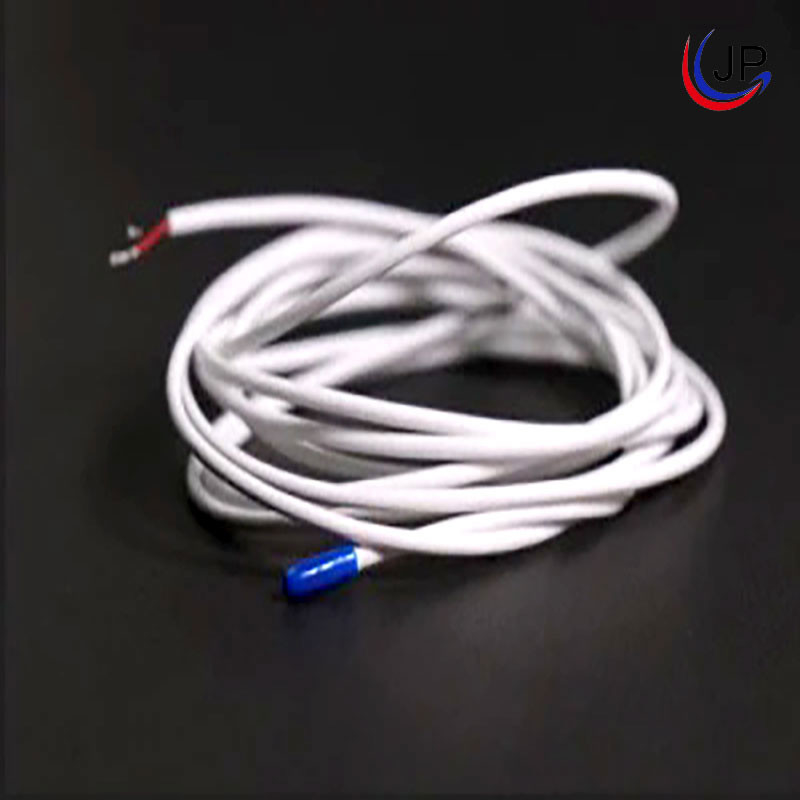

JP Sensor 10kohm 2.252kohm Medical Skin Temperature Sensor Medical Temperature Sensor
Product Description:
This product is Medical Skin Temperature Sensor for Human Body Temperature Measurement, which is used for the skin temperature sensor. The resistance value is 2.252kohm or 10kohm.
Features:
Fast thermal response time constant: 3.5sec max in still air
Stable stability and good bio-compatibility
High accurancy: tolerance up to ±0.02ºC
Excellent thermal cycle endurance
3m/10ft
12mm dish, 6.3mm mono plug
Application:
Skin / coelom / body temperature measurement
Adult / pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, healthy monitor
Technical Specification:
Tolerance of resistance value: ±2%, ±3%.
Tolerance of temperature: ±0.1ºC
| 2.252K NTC-Resistance Characteristic | |||||||
| Temp. (ºC) | Resistance (Ω) | Temp. (ºC) | Resistance (Ω) | Temp. (ºC) | Resistance (Ω) | ||
| 25 | 2252 | 30 | 1815 | 35 | 1471 | ||
| 26 | 2156 | 31 | 1739 | 36 | 1412 | ||
| 27 | 2064 | 32 | 1667 | 37 | 1355 | ||
| 28 | 1977 | 33 | 1599 | 38 | 1301 | ||
| 29 | 1894 | 34 | 1533 | 39 | 1249 | ||
