| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | USD 6-10 USD per piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 10KΩ | Accuracy: | ±0.1ºC (25ºC To 45ºC) |
|---|---|---|---|
| Length Of Product: | 1500mm | Material Of Sleeve: | TPU |
| Application: | Infant Incubator / Infant Warmer | Chip: | NTC Thermistor |
| OEM/ODM: | Available | Probe: | SUS Ф5.6mm |
| High Light: | 5.6mm Medical Temperature Probe,TPU Medical Temperature Sensor,10K Medical Temperature Probe |
||

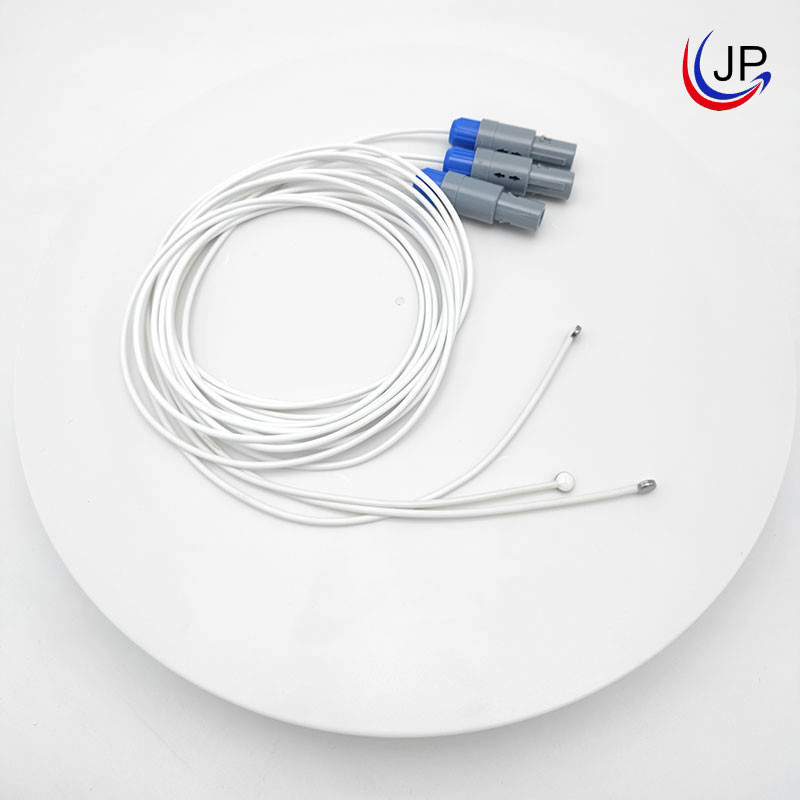

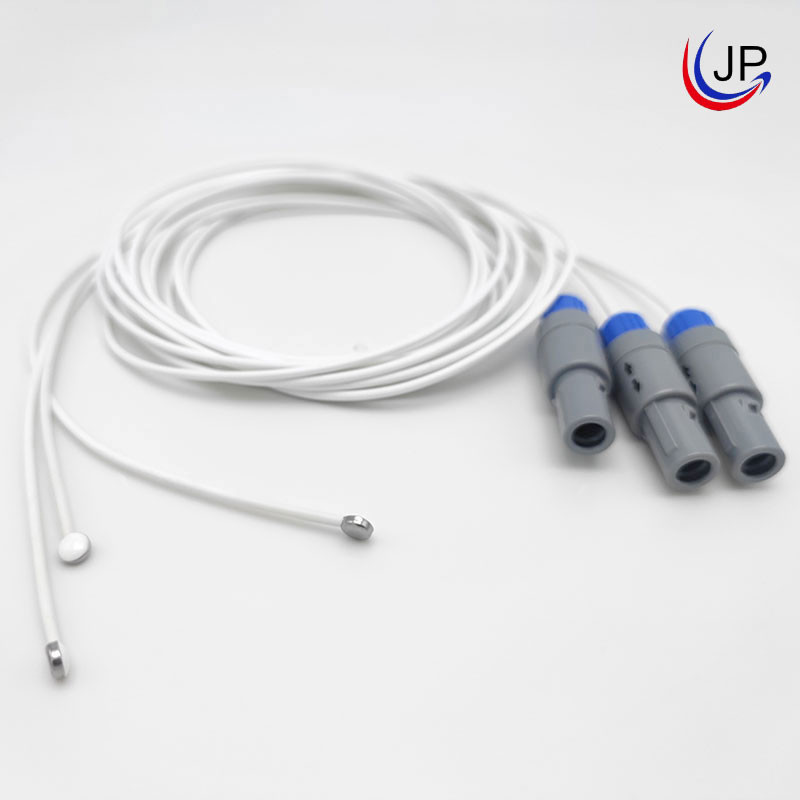

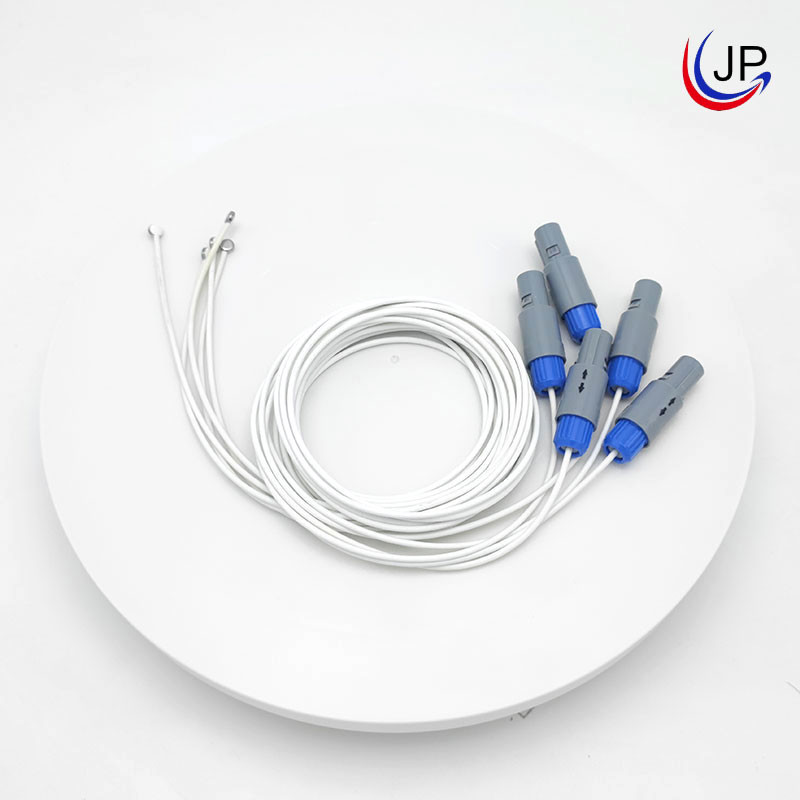

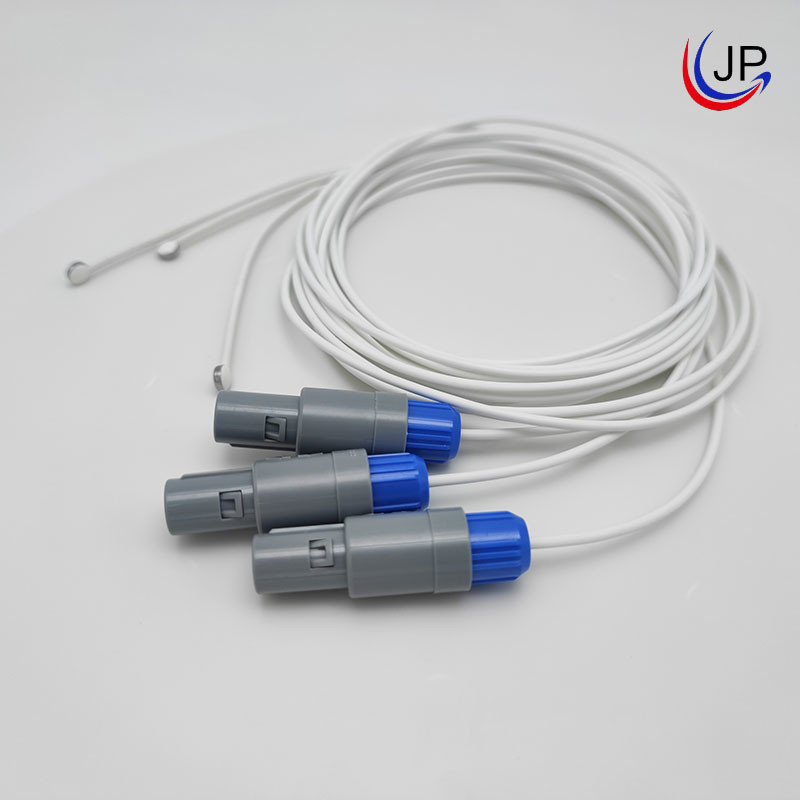

10K 5.6mm Medical Temperature Probe Temperature Sensor For Skin Temperature Monitoring
Product Description:
This product is widely used for human body surface temperature measurement, such as infant warmer infant incubators. The sensor is made of epoxy resin, metal disk, 2-pin aviation plug, or custom connector according to the customer’s requirement. The rated resistance value is 2.252KΩ or 10KΩ. The total length is 1.5Meters, and the tolerance is ±0.1℃(25℃~45℃). The beta value is B25/50=3950K±1%.
Features:
Human body surface temperature measurement
Reusable
Tolerance: (25~45) ℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
This is for neonatal ICU babies.
Structure and Dimensions(mm):
Specification:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=10KΩ |
| 2 | Probe | SUSφ5.6 | 1 | / |
| 3 | Encapsulation | Epoxy | / | White |
| 4 | Cable | TPU single Round sheathed wire | 1 | White |
| 5 | Plug | 2-pin aviation plug | 1 | Gray+Blue |
