| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | 10KΩ | Beta Value: | 25/50=3470K |
|---|---|---|---|
| Tolerance: | 1% | Operating Temperature Range: | -30~105ºC/-50~110ºC |
| Length: | 300mm Or Custom | Custom: | Available |
| Shipping: | Sea Freight, Express, Air Freight | Lead Wire: | PVC, PTFE, Silicon Latex Fiberglass, Rubber |
| High Light: | 10K NTC Thermistor Temperature Sensor,1% Ntc 10k Temperature Sensor,NTC Thermistor Temperature Sensor ISO9001 |
||

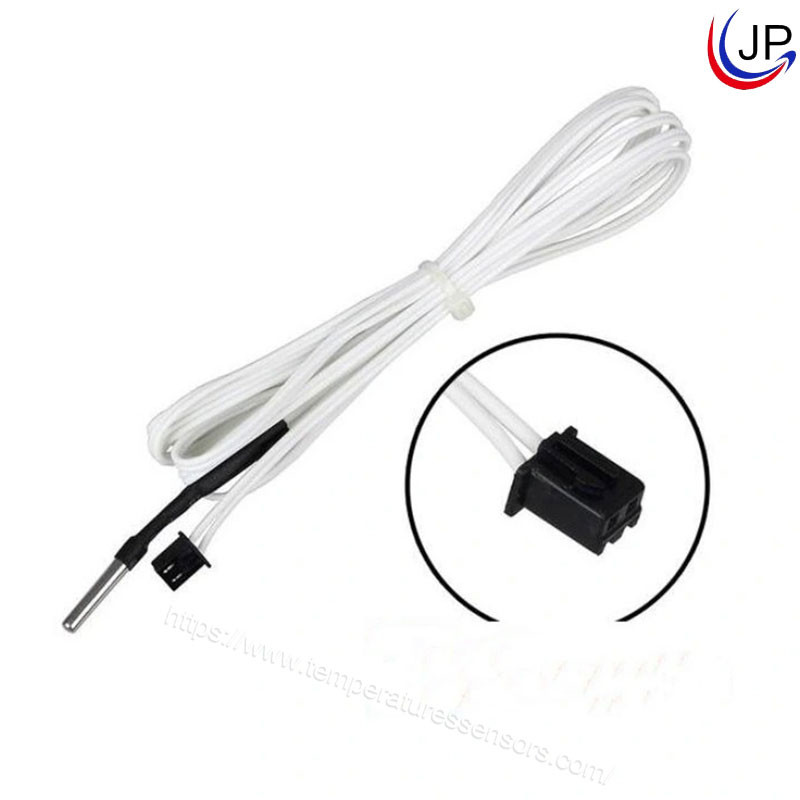

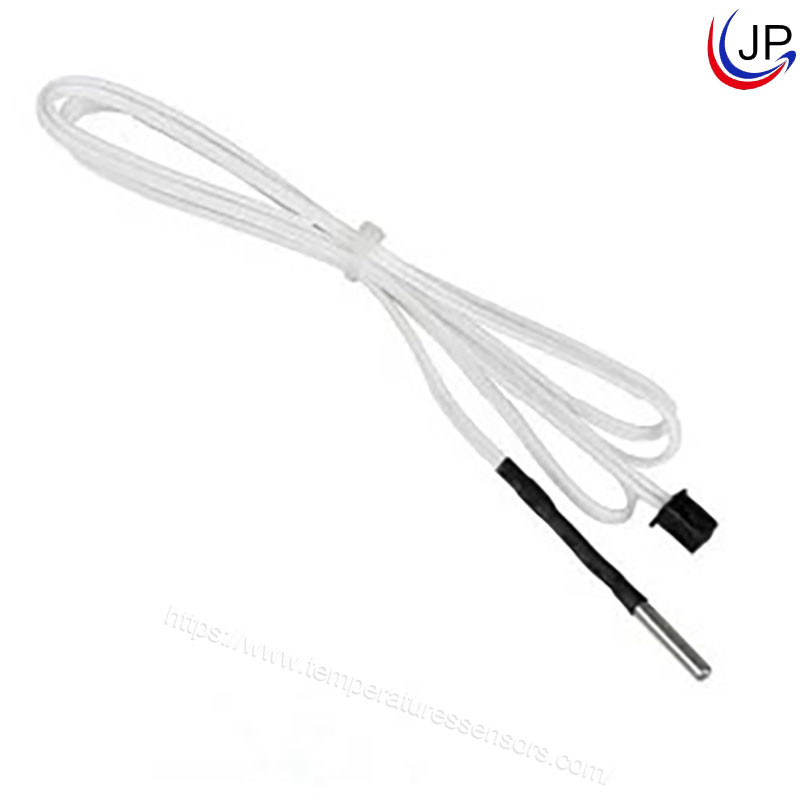

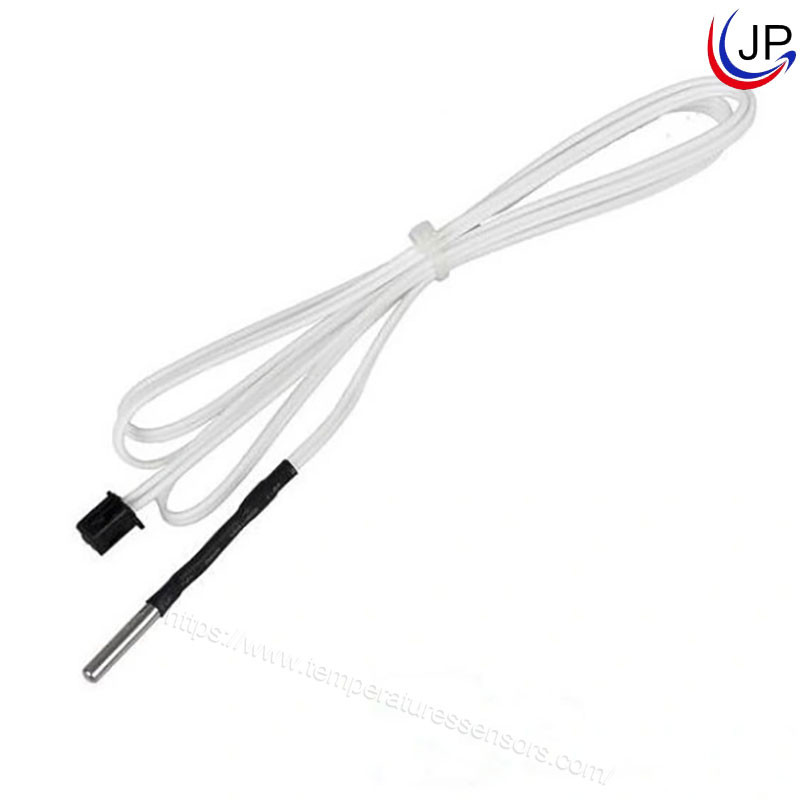

10K 1% NTC Thermistor Temperature Sensor with Two Tinned Copper Wire Cables
Product Description:
This product is NTC temperature sensor 10K 1% with Two tinned copper wire cables, which consist of an NTC element, SUS housing, two tinned wire cable, a terminal, and a temperature probe. Its Sensor is protected by a rubber or a stainless steel encapsulation. It is a proper solution for either heating or cooling applications.
Features:
Operating Temperature Range: -30~105ºC/-50~110ºC/
Waterproof
RoHS compliant
Resistance Value: 10 KΩ
Lead wire insulation: PVC, PTFE, Silicon latex Fiberglass, rubber
Beta value: 25/50=3470K
Parameter:
Total length: 300mm or customized lead wire length
Protection tube (probe part) length: 30mm
Probe part diameter: 5mm

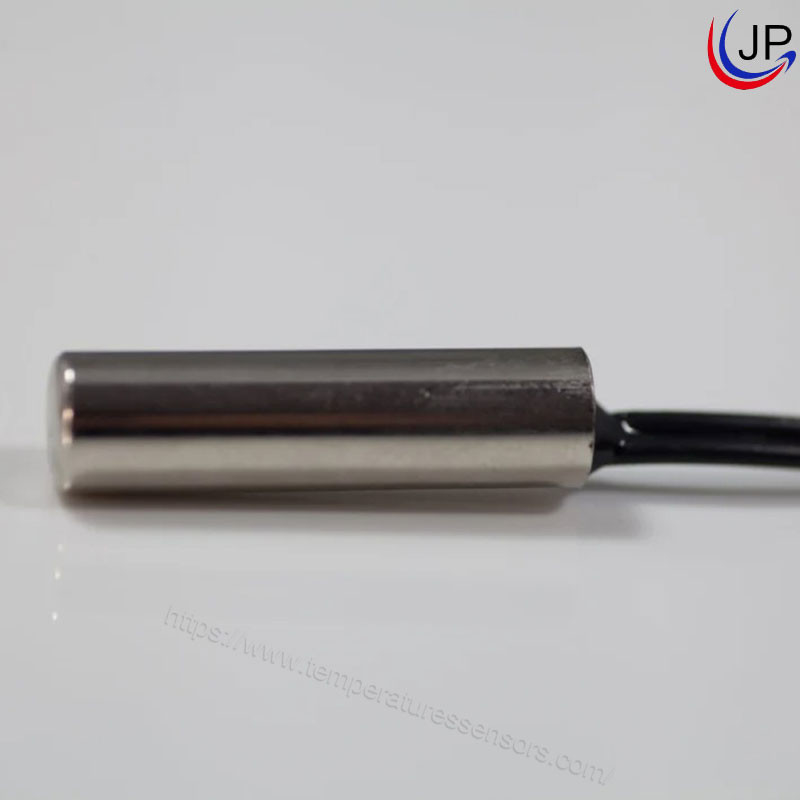

304 stainless steel capsule; dimensions φ 5x 30 mm; waterproof
Response time: 8 seconds (rubber capsule) and 9 seconds (stainless steel capsule) to reach 63% of the applied temperature step.
Protection degree: IP68
Electrical insulation:> 20 MΩ @ 500Vdc
Application:
ROHS-certified solar water heater temperature sensor is mainly used in household air conditioners, solar water heaters, auto air conditioners, refrigerators, stoves, deep fryers, induction cookers, soybean milk machines, electric ovens, and home appliances. floor heating, 3D printers. Temperature measurement and control.
