| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | 0℃~50℃ | Resistence Value: | Custom |
Medical Temperature Sensor for Body Temperature Measurement
Brief Instruction:
This medical temperature sensor is used to measure human body temperature. Compatibility with all OEM monitoring equipment. There’re two types of temperature probe for medical temperature sensors, one is resusable temperature probe, and the other one is disposable temperature probe. The temperature probe is also be customized, for example epoxy encapsulation, metal disk, PVC sleeve etc. Generally speaking, the regular resistance value 2.252kΩ, 10kΩ, 20kΩ and 50kΩ. In special requirement, we also can customized your temperature probe specification. For different measuring applications, there are options in skin/surface and esophageal/rectal probe types for adult pediatric, neonatal. The medical temperature sensor is accurate to 0.1℃ over the measurement range of 25℃ to 45℃. They’re interchangeable to YSI400 series medical temperature sensor.
Features:
Accurate temperature measurement
Temperature tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Skin / coelom / body temperature measurement
Adult / pediatric esophageal / rectal / air / skin temperature monitoring
Part Number Code:
Product Model/Specification
Ordering Information (Product Model No.)
The following item is medical temperature sensor. Its overall dimensions and temperature probe are customized according to the measured body part and customer’s requirements. Regarding its model No, please kindly check below table
Table 1. ordering information
| Item No. | Product Model No. | Shell specification | Wire spec. | Marks |
| 1 | JP401 | Epoxy bead |
Sheathed wire/parallel wire/stranded wire |
/ |
| 2 | JP402 | Metal shell | Sheathed wire/parallel wire/stranded wire | Φ2-Φ15 metal disk(e.g.Φ5.33,Φ9.5,Φ10,Φ12etc) |
| 3 | JP403 | Plastic shell | Sheathed wire/parallel wire/stranded wire | Optional accessories: thermal protection patch, PVC sleeve |
| 4 | JP404 | Epoxy bead | Sheathed wire/parallel wire/stranded wire | Optional accessories: thermal protection patch, PVC sleeve |
| 5 | JP405 | PVC sleeve |
Sheathed wire/parallel wire/stranded wire |
The inside: epoxy coating or small plastic shell and connecting wire |
| 6 | JP406 | SS304/SS316 shell | Enamelled wire | Small ear cap, small silver cap |
| 7 | JP407 | Polyimide tube | Enamelled wire | / |
| 8 | JP410 |
Eardrum probe
|
Sheathed wire/parallel wire/stranded wire | / |
| 9 | JP411 | Catheter | Sheathed wire/parallel wire/stranded wire | / |
| 10 | JP412 | tempilstick | Sheathed wire/parallel wire/stranded wire | / |
| 11 | JP701 | epoxy bead | 3-conductor wire/CP wire/sheathed wire | / |
| 12 | JP702 | Metal disk | 3-conductor wire/sheathed wire | / |
| 13 | JP703 | Plastic | 3-conductor wire/sheathed wire | / |
Remarks: the end or connector contains the audio plug, aviation plug, USB plug and Molex plug etc.

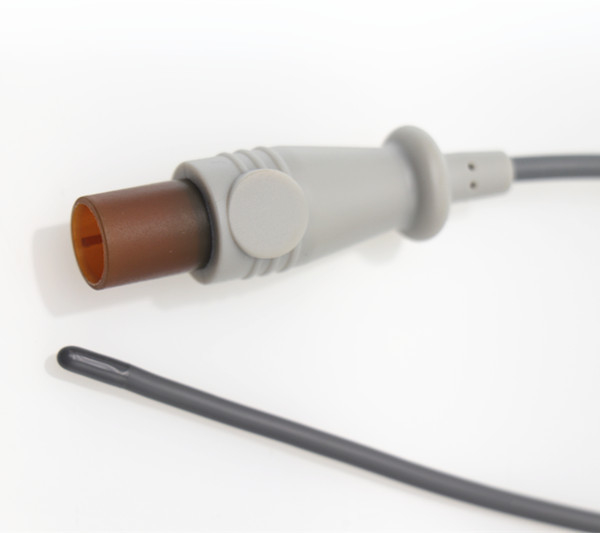

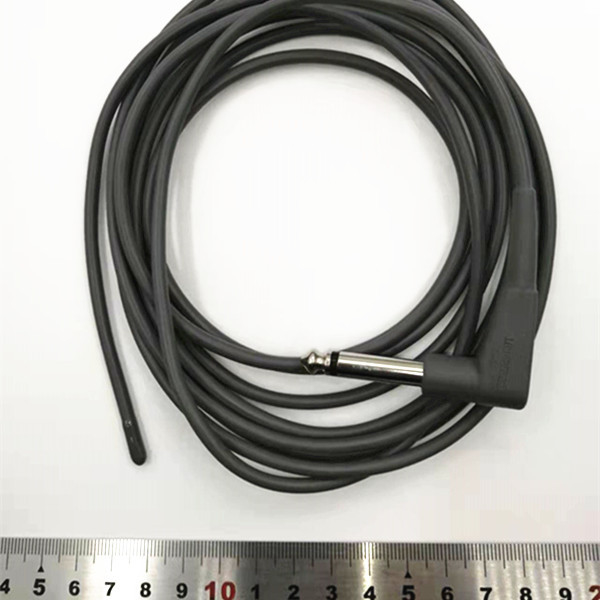

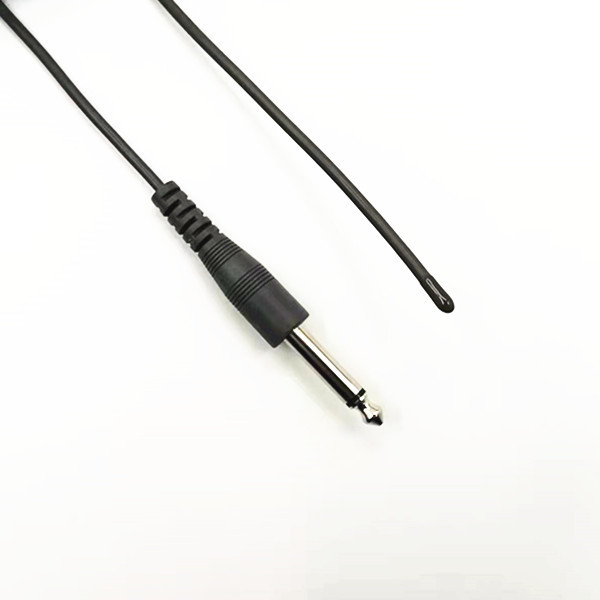

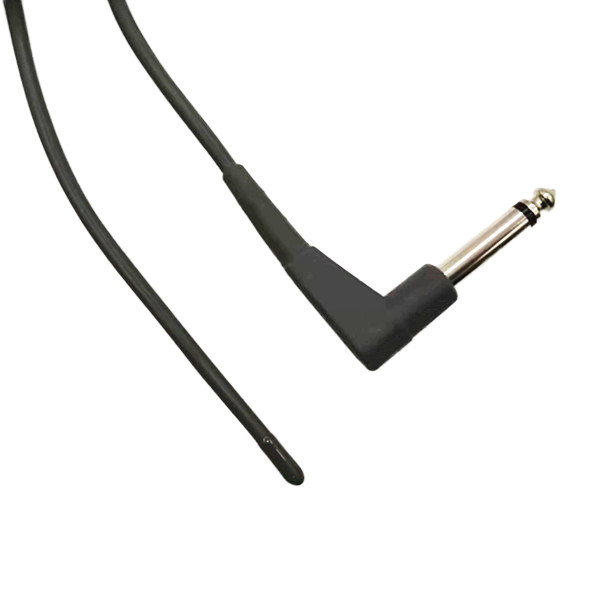

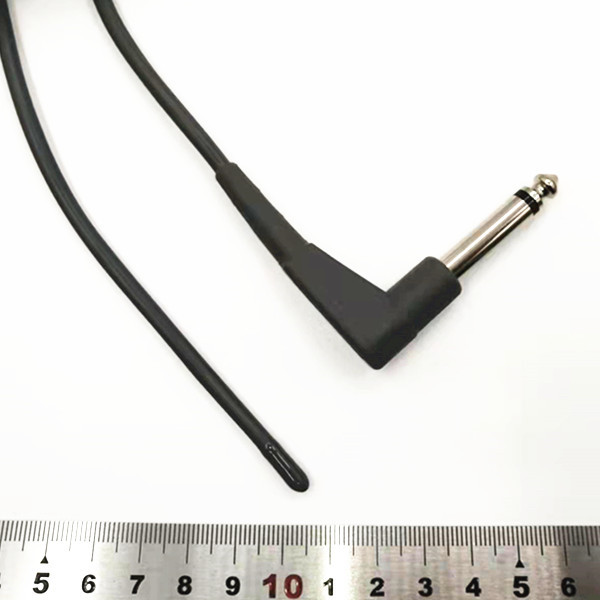

product picture/images:
