| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | 0℃~50℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | IP64 Human Body Temperature Sensor,Reusable Human Body Temperature Sensor |
||
Reusable Human Body Cavity Temperature Sensor for Medical Monitoring Equipment
Brief Instruction:
Medical human body cavity temperature sensor ( esophgeal/ rectal temperature probe) be used for human body cavity temperature measurement, Used for the patient monitors. The sensor be composed of epoxy bead and Mono audio plug 6.3mm. Meanwhile, we also accept the customized plug or connector. The rated resistance value 2.252kΩ or 10kΩ. The measured temperature tolerance within ±0.1℃, compatible for replacement YSI400 series sensor.
Features:
Epoxy encapsulation
Reusability
Temperature tolerance
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC | 1 | / |
| 2 | Probe | Epoxy Resin | 1 | gray |
| 3 | Wire | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |
| 4 | Plug | 6.3MP-φ6.3*31-50 | 1 | gray |

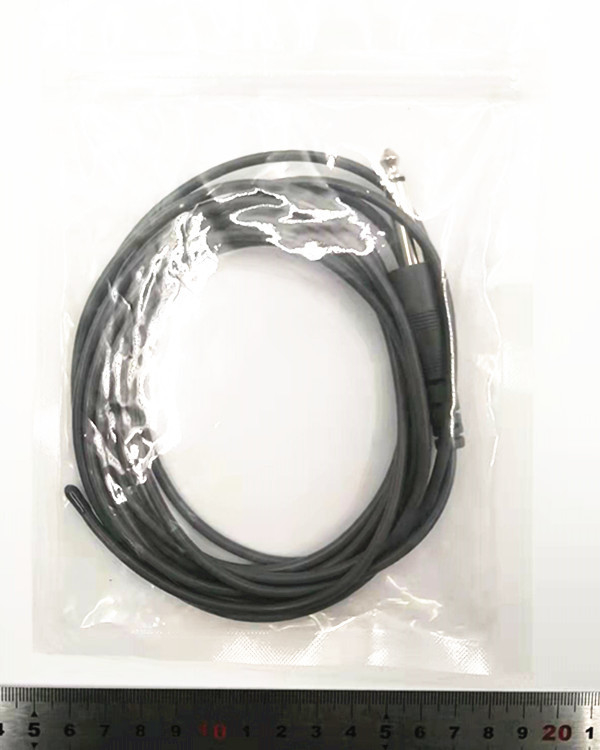

Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1.Application:Temperature measure ；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
4.Storage Temperature 0℃～50℃,30%~80%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
5.According to the structure of Glass coating NTC thermistor, when end user install, to avoid the epoxy head subjected too much tensile force and bending force from the lead wire,The lead wire shall be controlled at a bending point or a force point on a lead wire 6mm or less below the sealing head.So as not to hurt the chip, resulting in resistance drifting and even open circuit, especially when the component is heated.

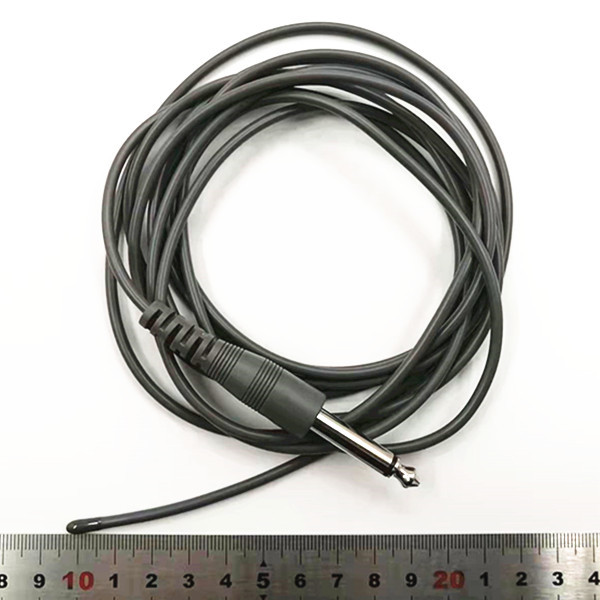

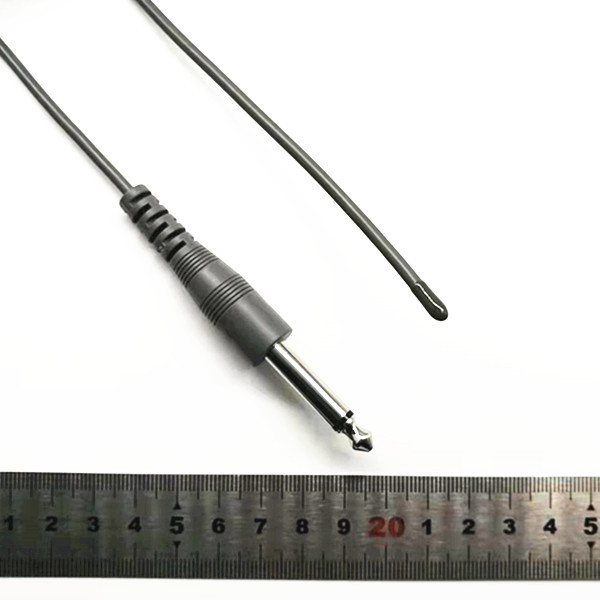

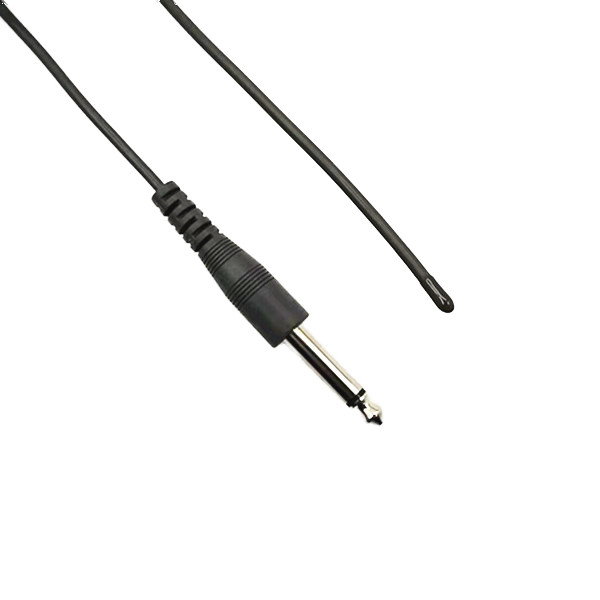

Product Picture:
