| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | 0℃~50℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Human Body Temperature Probe IP64,Disposable Human Body Temperature Probe |
||
Disposable Human Body Temperature Probe for Medical Monitors
Brief Instruction:
The item is one disposable medical temperature sensors, it’s divided into adult human body cavity temperature probe and child human body cavity temperature probe. Resistance value 2.252KΩ and 10KΩ. Measured temperature tolerance within ±0.1℃. Compatible for YSI400 series product instead. The following item is human body cavity medical temperature probe.
Features:
PVC sleeve
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Applicable to Medical monitors
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ2.3 φ3.0 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |

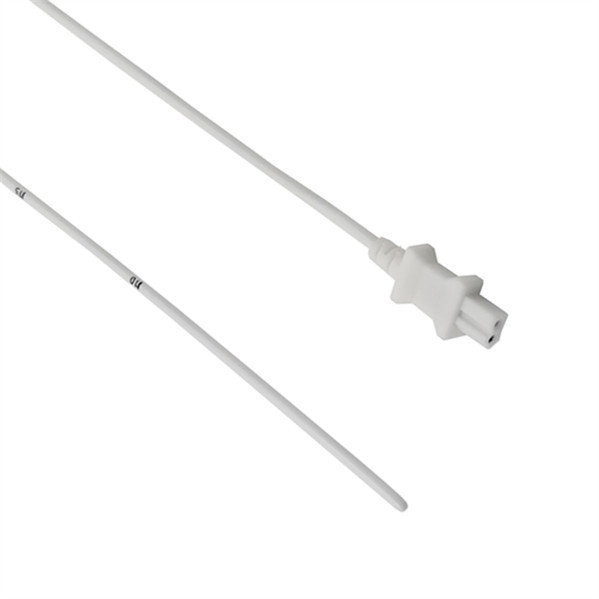

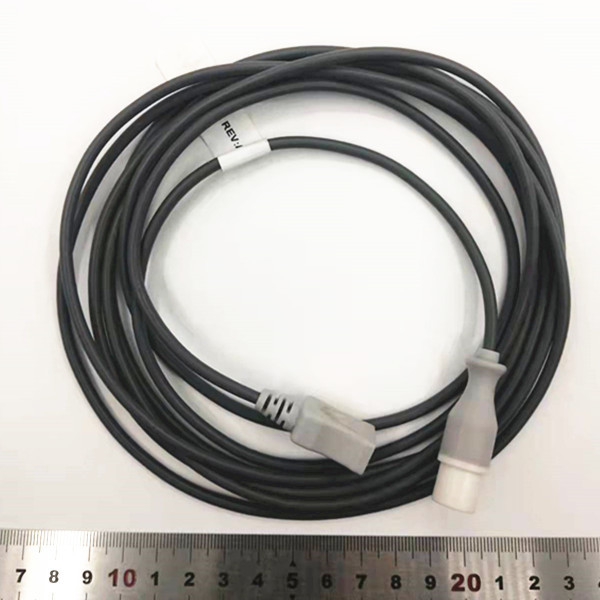

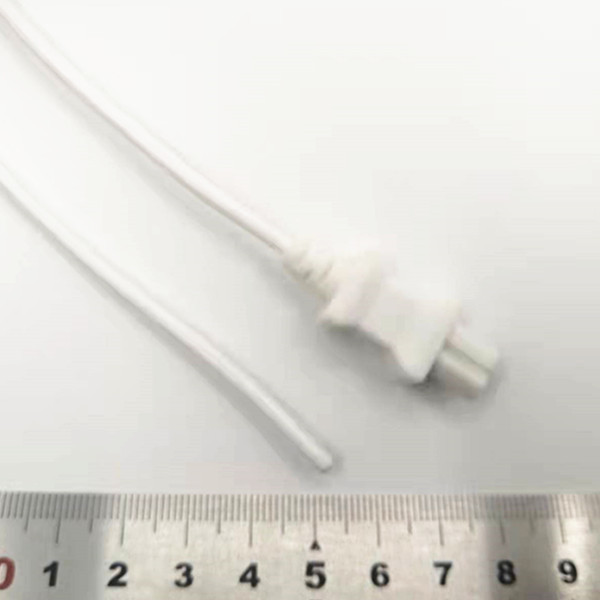

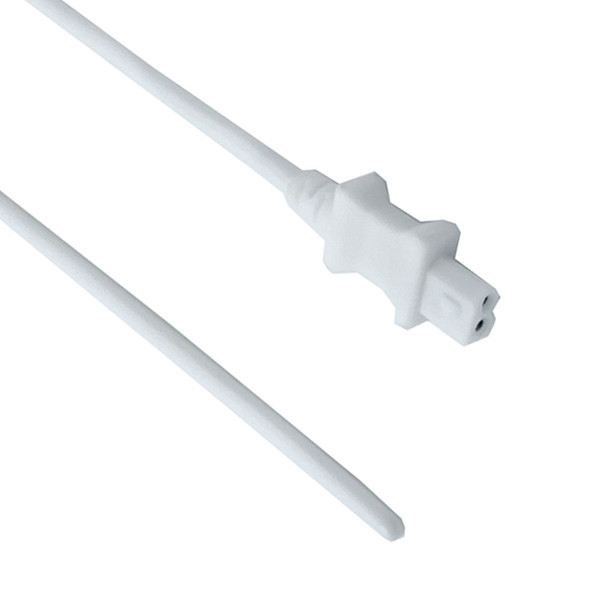

Product picture/images:
Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1.Application:Temperature measure ；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
