| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | 0℃~100℃ |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC, , Enamel Insulation |
| High Light: | Miniature Medical Temperature Sensor,Miniature Human Body Temperature Probe |
||
Miniature Medical Temperature Sensor for Incubators and Body Temperature
Brief Instruction:
The item is one miniature medical temperature sensor NTC thermistor. The miniature medical temperature sensors are encapsulated with epoxy in polyimide tubes OD 0.3mm. It takes the enamelled wire OD 0.05mm as the lead wire. The miniature thermistor sensor resistance value be calibrated one by one.
Features:
Miniature designed
Typical diameter: PIφ0.30mm,
Typical wire size OD0.05mm
Fast thermal response time, for example several seconds
Operating temperature range: 0℃~100℃
Application:
Ablation temperature monitoring
Blood temperature monitoring
Incubators, patient warming and endovascular cooling sensors
Structure and Dimensions:(Unit:mm)

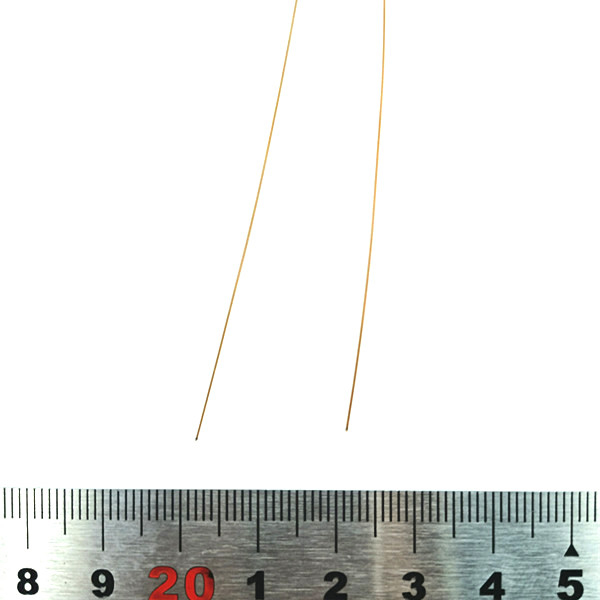

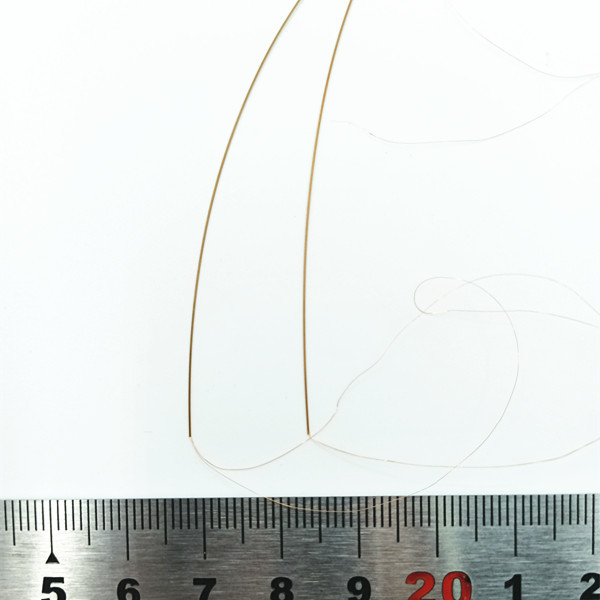

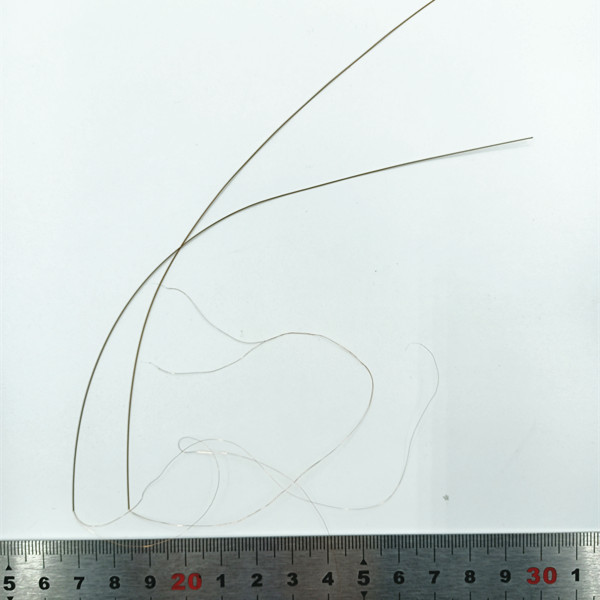

product picture/images:

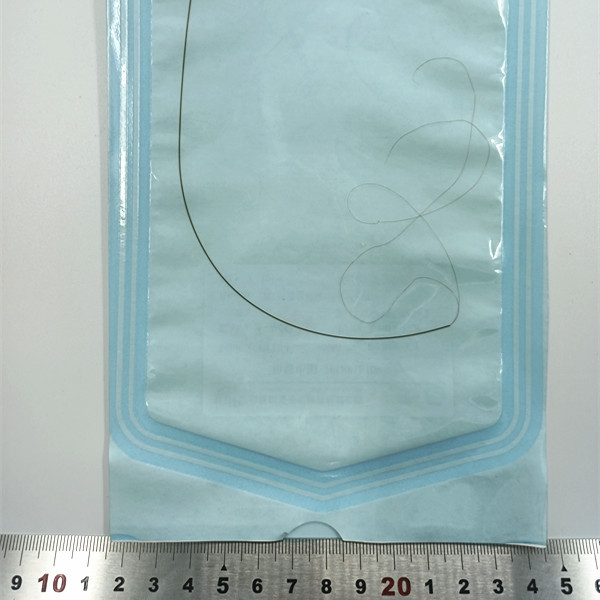

Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1. Application:Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
4. Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
