| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Dark Brown |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | 24AWG/1C OD3.1 Shielded Round Sheath Wire |
| High Light: | IP64 Skin Temp Probe,IP64 Temperature Skin Sensor,Epoxy Skin Temp Probe |
||

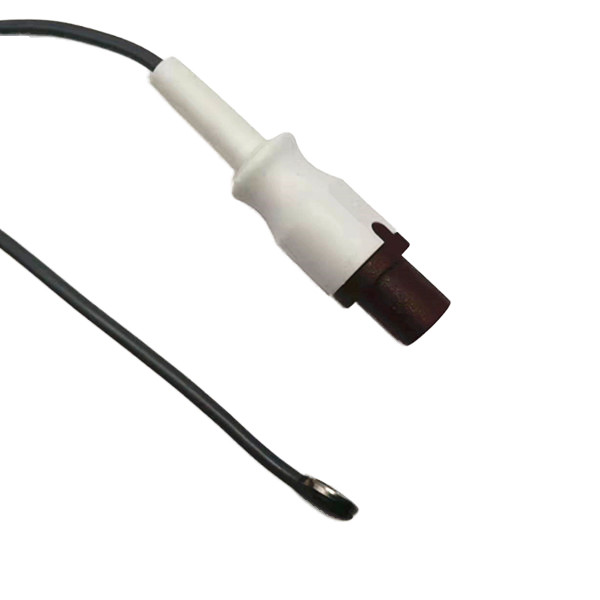

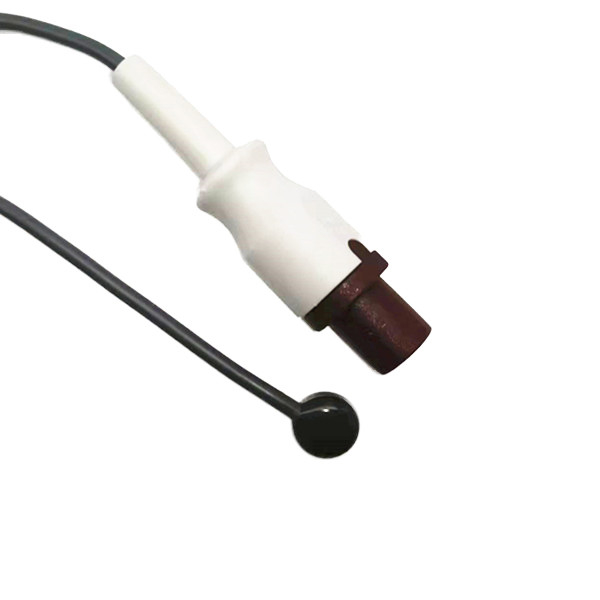

Skin Temperature Probe Temperature Sensor For Medical Monitoring Equipment
Brief Instruction:
Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, 2 pin aviation plug or custom connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ. Total length is 3Meters, and the sensor measuring tolerance within ±0.1℃. Used for monitors, suitable for Philip series products replacement. CE certification.
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment

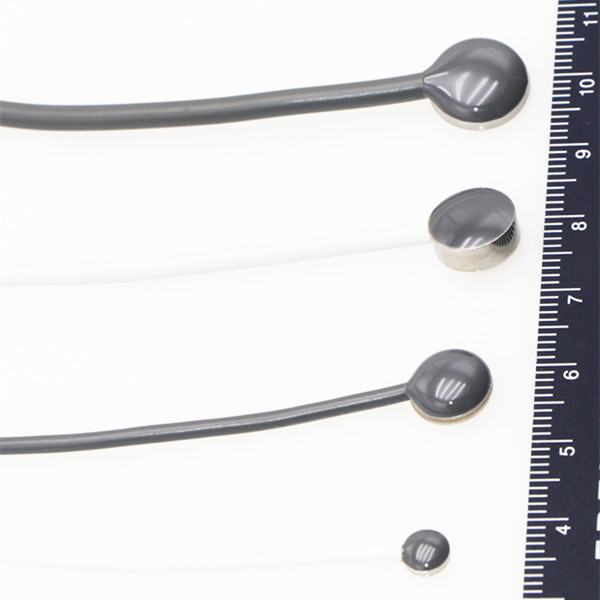

Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUSφ12*2 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | 24AWG/1C OD3.1 Shielded round sheath wire | 1 | gray |

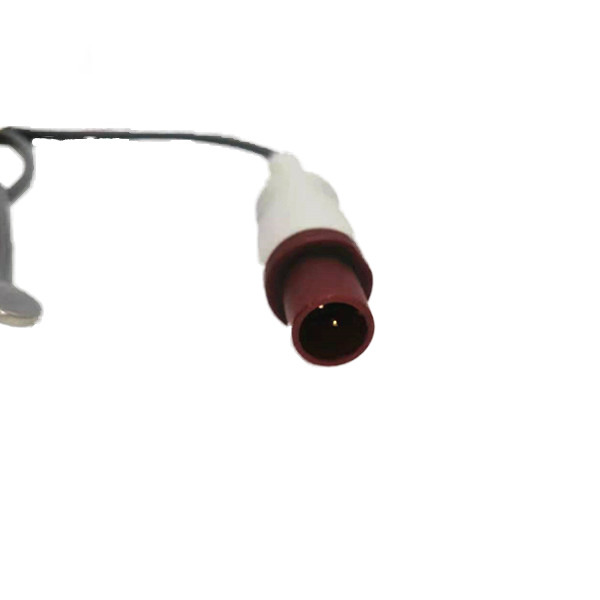

| 5 | Plug | 2 pin aviation plug | 1 | Gray+brown |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1.Application:Temperature measure ；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
Tips:
Please do not directly bid and pay, the reason is: because the electronic components are professional products, high technical content, their electrical characteristics/resistance tolerance, wire specifications/length, head or tail structure and so on, the price will be different, so the actual price shall be subject to the shopkeeper's quotation. Before you buy components from our company, please contact the seller with the specific specification description of the product model, electrical tolerance, head package structure, tail end processing and so on before you carry out the transaction!
