| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Gray |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | 2.252k Skin Temperature Probe,Medical Monitoring Skin Temp Probe,5.6mm Diameter Skin Temperature Probe |
||

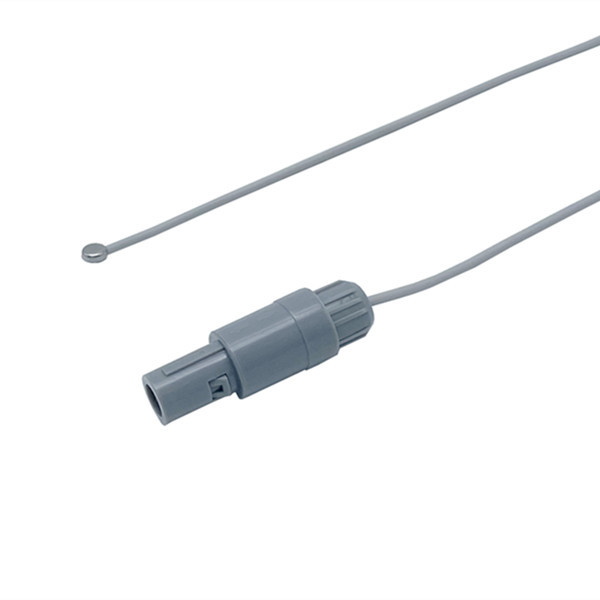

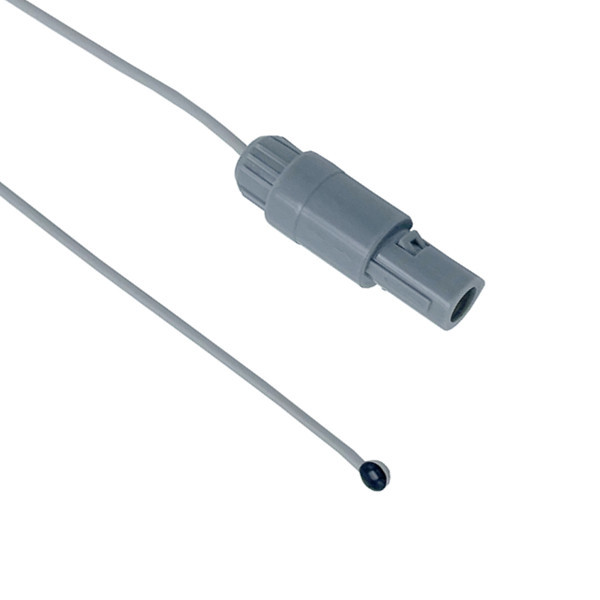

2.252k Skin Temperature Probe For Medical Monitoring Equipment 5.6mm Diameter
Brief Instruction:

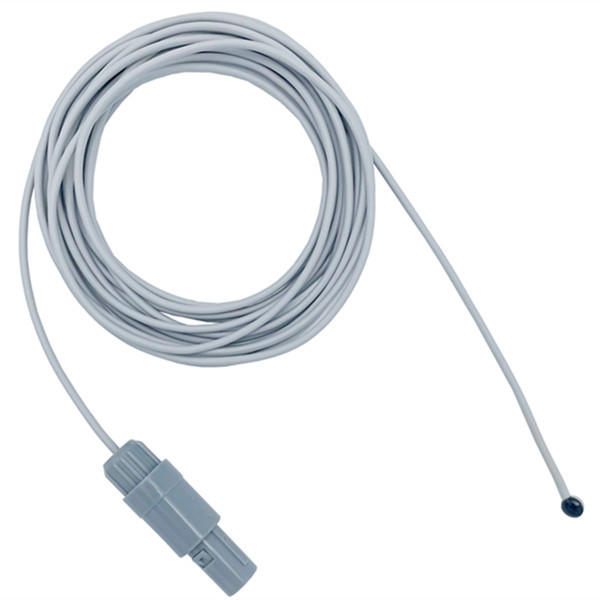

Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, 2 pin aviation plug or custom connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ. Total length is 1.5Meters, and the sensor measuring tolerance within ±0.1℃(25℃~45℃).
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
This is for neonatal ICU babies.
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | R25=2.252KΩ |
| 2 | Probe | SUSφ5.6 | 1 | / |
| 3 | Encapsulation | Epoxy | / | Black |
| 4 | Cable | 28AWG OD2.0 Round sheathed wire | 1 | Gray |
| 5 | Plug | 2 pin aviation plug | 1 | Gray |
Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1. Application:Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Storage Temperature 0℃～50℃,30%~80%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
