| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP402 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Blue |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| Highlight: | Disposable Body Temperature Sensor,IP64 Body Temperature Sensor,Disposable Human Temperature Sensor |
||

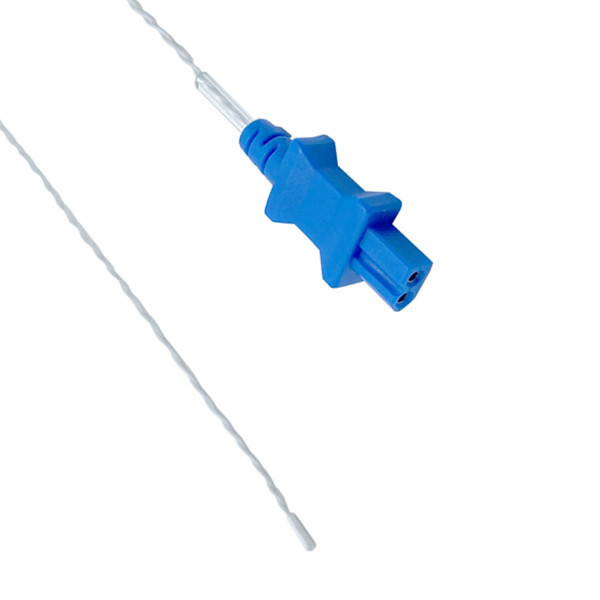

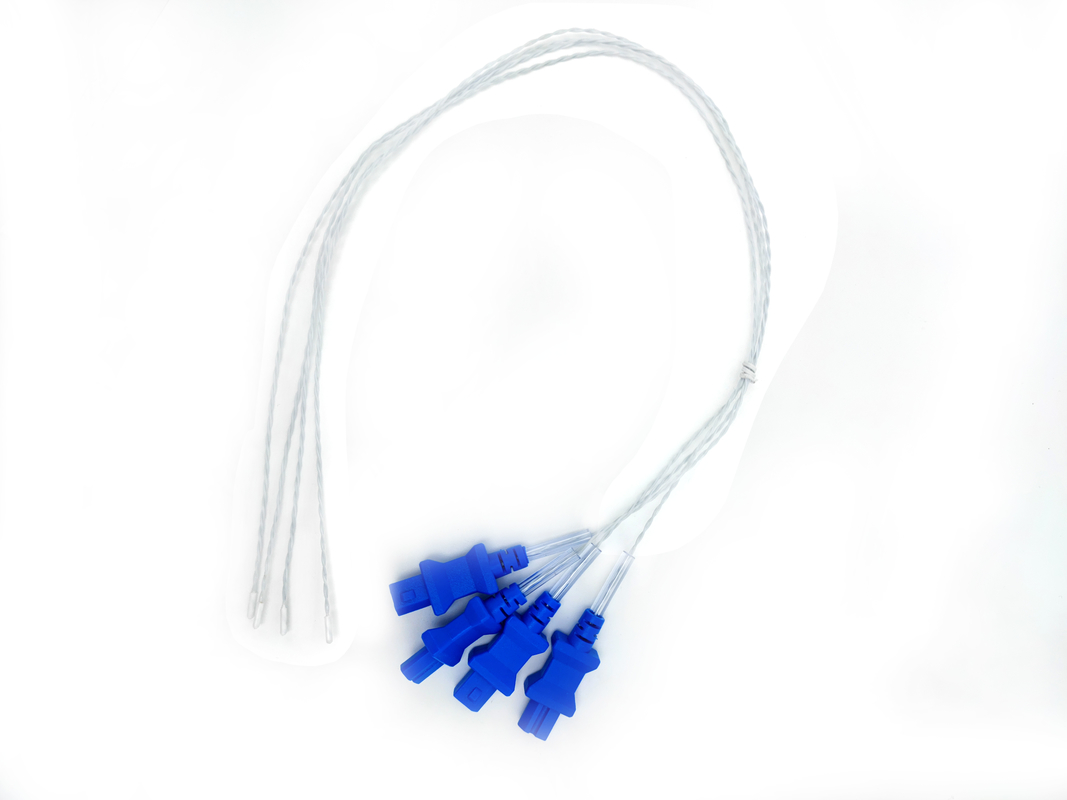

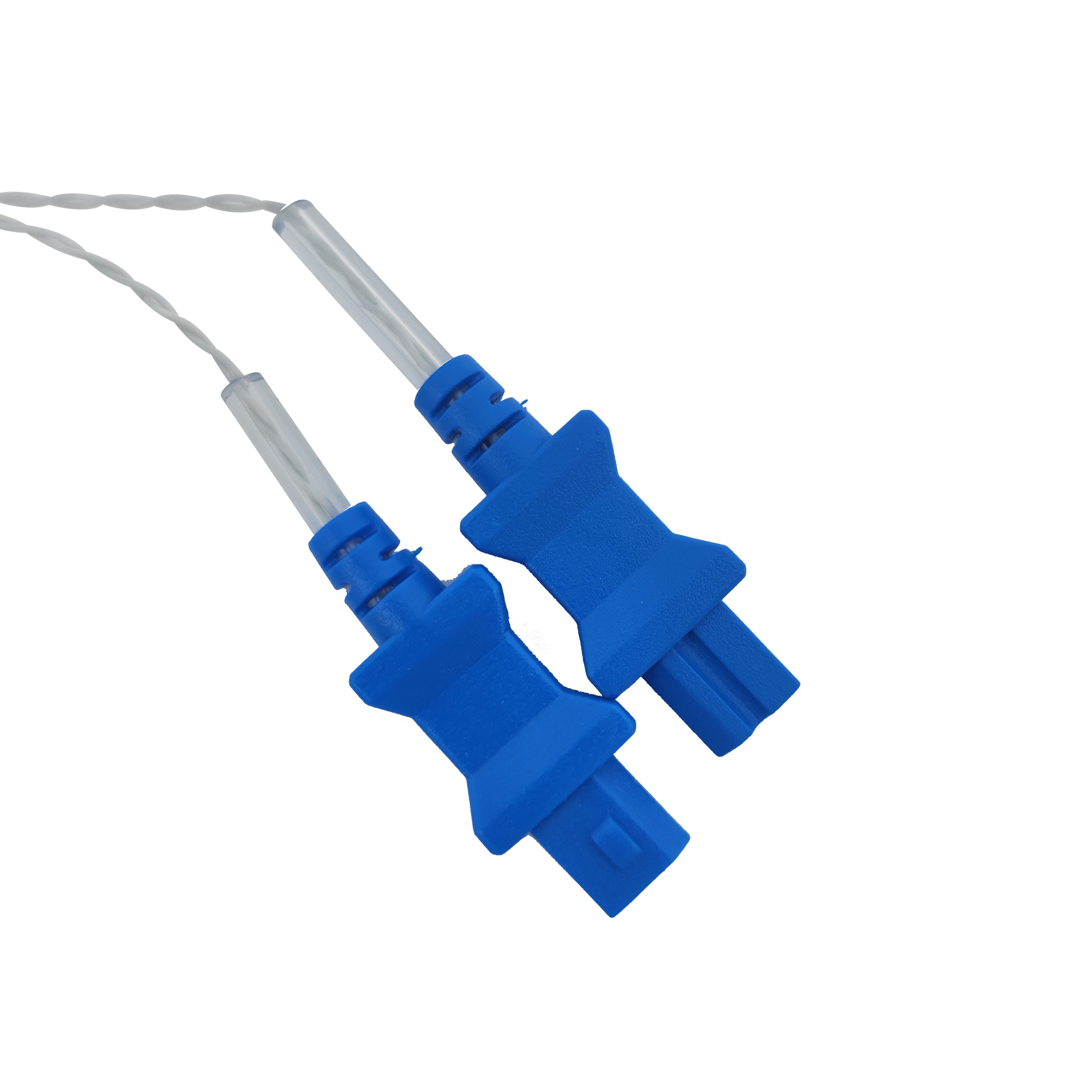

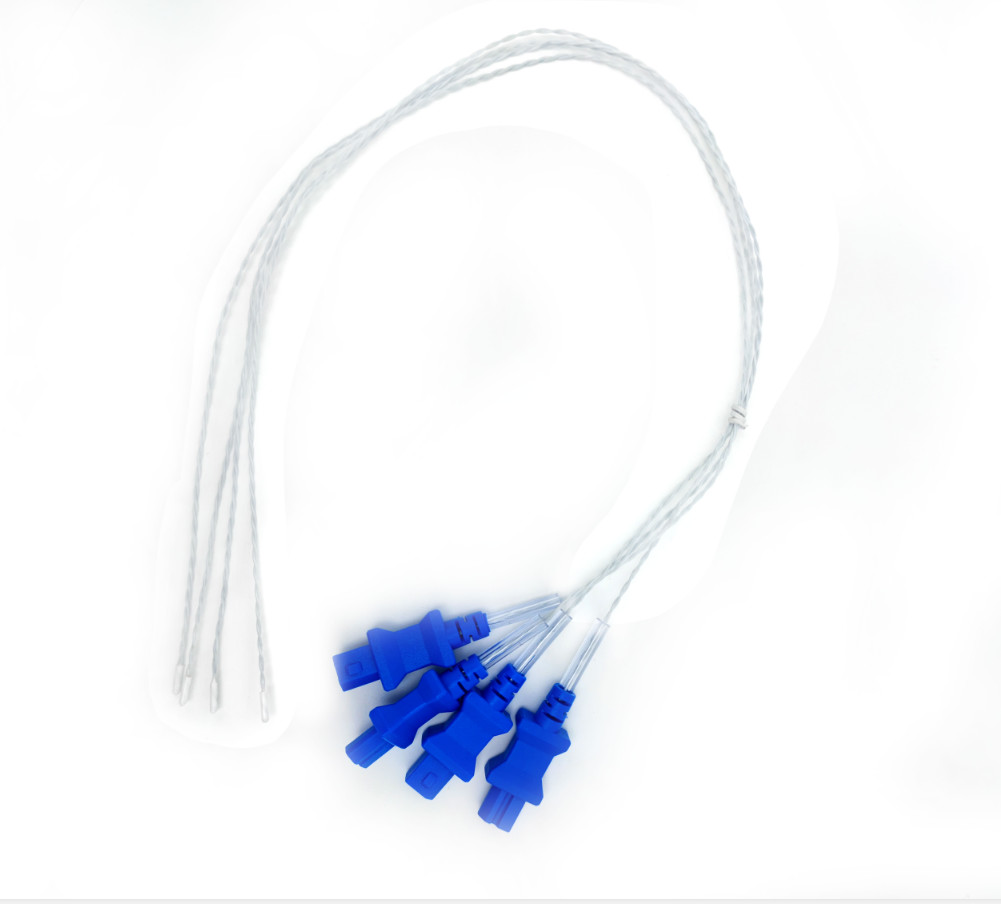

Disposable Body Cavity Temperature Sensor for Medical Equipment
Product introduction
This product is widely used for body cavity temperature measurement after installing the catheter. The sensor probe is packaged with plastic case. The nominal resistance value of the product is 2.252K ω or 10K ω. The total length of the product is generally 0.3 ~ 0.65 meters, and the measurement error is (25~45) ℃±0.1℃.
Product features
Single use
High measurement accuracy (25~45) ℃±0.1℃
The operating temperature ranges from 0℃ to 50℃
Supporting for monitoring instrument, suitable for emergency, intensive care unit, operating room, etc
The patient's body temperature was continuously monitored.
Product structure and size(Unit:mm)
Packing Quantity: 1 PCS/package
Matters needing attention
- The use of this product: temperature measurement and control;
-- Control the energy dissipation generated by the current flowing through the chip within the required range, to avoid the measurement error caused by self-heating components;
-- If the shrinkage sleeve is heated at the temperature sensing head, the outlet of the welding gun should be more than 30mm away from the temperature sensing head to avoid resistance drift caused by excessive thermal impact on the resistance body.
-- Storage temperature 0℃ ~ 50℃, humidity 30%~80%RH; Do not store in corrosive gas or direct sunlight. After opening the package, it needs to be re-sealed for storage.
- according to the characteristics of the structure of epoxy element users when using, should avoid kit by head of lead is too large for bending tensile, bending forces lead bending point or action point should be controlled in the package head below 6 mm on the outside of the lead, in order to avoid strain chips, lead to resistance drift even open, especially under the condition of the components is heated.
