| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Disposable Adult Body Temperature Probe,IP64 Adult Body Temperature Probe,Analog Type Body Temperature Probe |
||

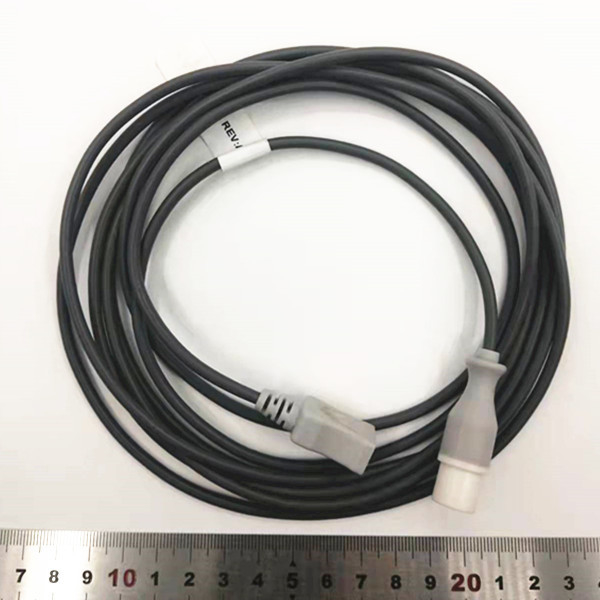

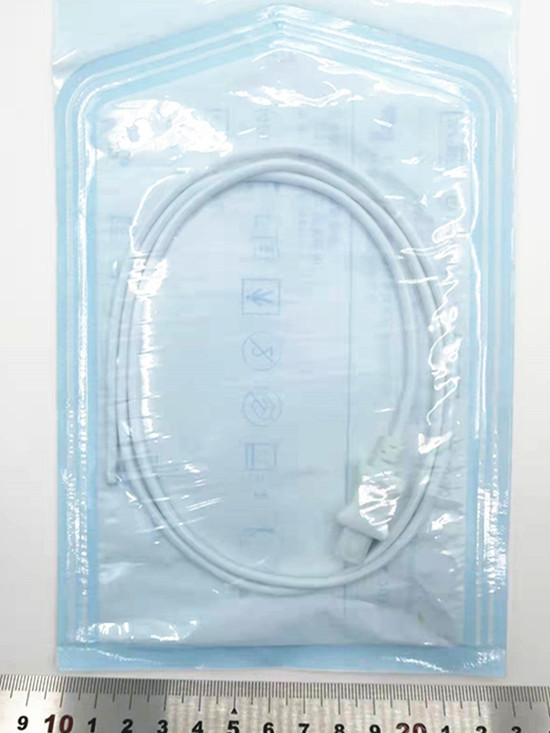

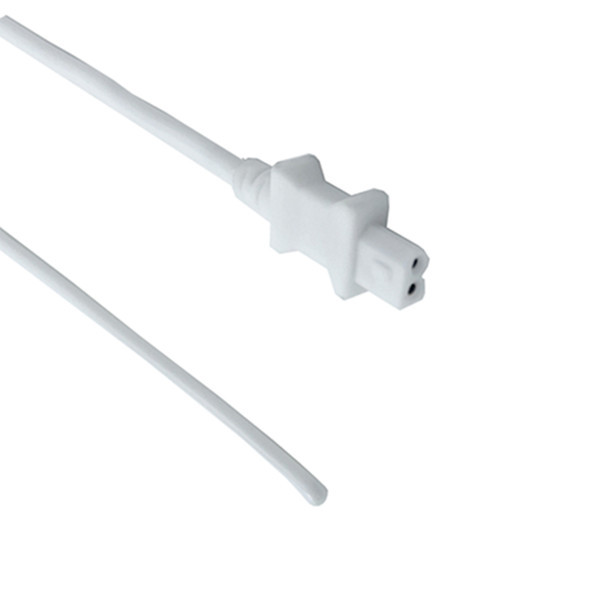

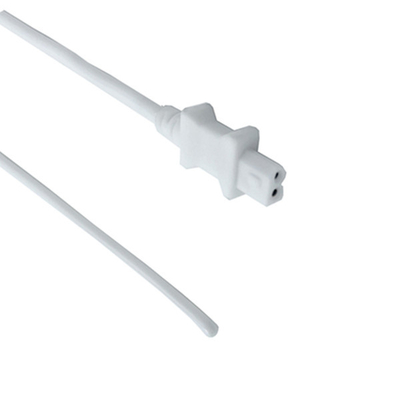

Brief Instruction:
The item is one disposable medical temperature sensors, it’s divided into child human body cavity temperature probe. Resistance value 2.252KΩ. Measured temperature tolerance within(25℃~45℃) ±0.1℃. Compatible for YSI400 series product instead.
Features:
Disposable
PVC sleeve
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
9Fr(OD3.0)

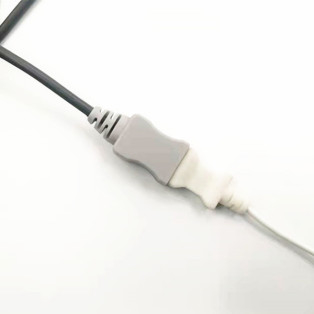

Adapter cable is available
Application:
It can be used in ICU, emergency room and operating room together with the body monitor to continuously monitor the temperature of the patient's body. For the measurement of body cavity temperature in adults.
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ3.0 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
Procurement process:
Product requirements and the use of environmental requirements - to give you a quote to confirm - order and delivery time confirmation - express logistics delivery - delivery confirmation - order completion confirmation - use of the return visit
At the same time, we also hope that you can tell us the requirements of your products, so that we can give you suggestions to customize the production of products that meet your required installation and use functions.
