| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | IP64 Body Cavity Temperature Sensor,Icu Ward Body Temperature Probe,Disposable Body Cavity Temperature Sensor |
||
Brief Instruction:
The project is a disposable medical temperature sensor, which is a body cavity temperature probe for children. Resistance value 2.252 kΩ. The temperature tolerance is (25℃~45℃)±0.1℃. It can be replaced by YSI400 series products.
Features:

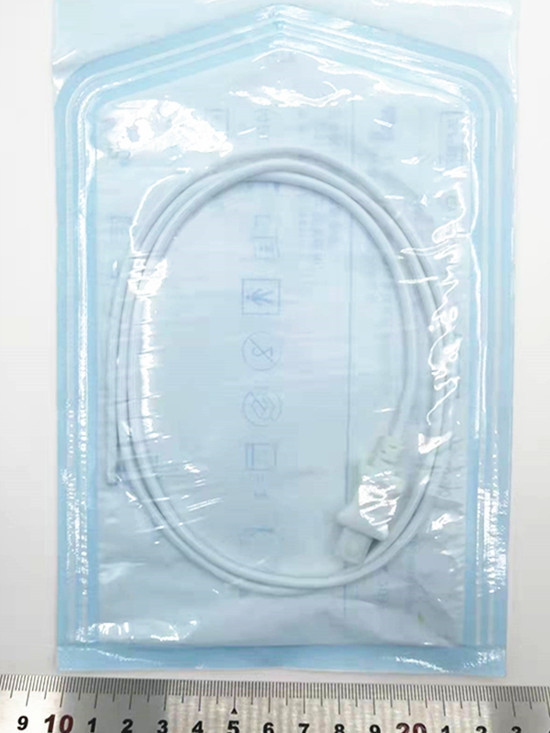

Disposable
PVC sleeve
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
12Fr(OD4.0)

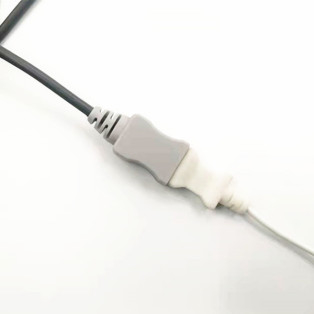

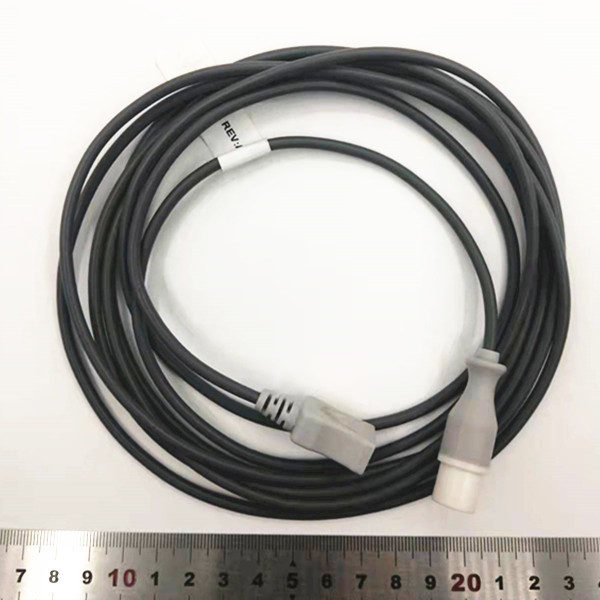

Transfer wiring is available
Application:
Suitable for medical monitor, body monitor used in ICU ward, emergency room, operating room, continuous monitoring of the patient's body temperature
For the measurement of body cavity temperature in adults
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ4.0 | 1 | white |

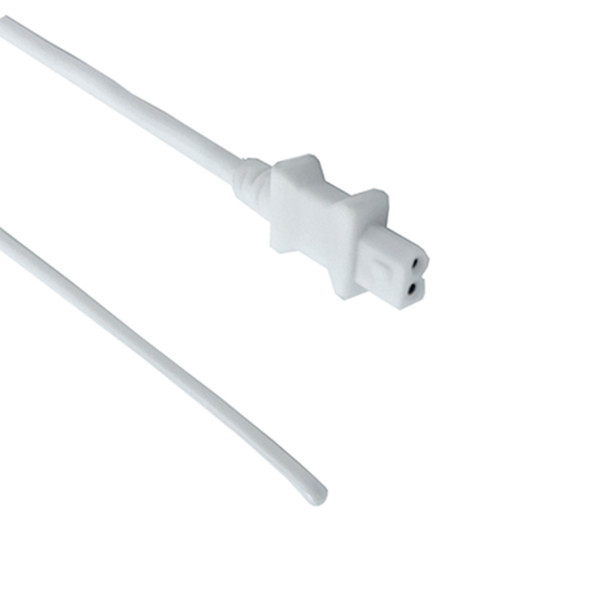

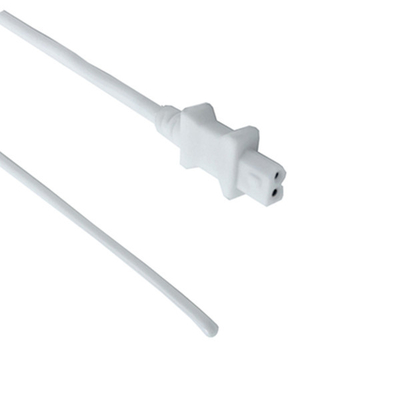

| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
Ordering instructions
When ordering NTC temperature sensor, please inform us of the following parameters:
1. Usage and working environment (whether it needs to be waterproof, acid or alkali resistant or other)?
2. What is the specific value of R, K?
3. How much K is the value of B?
4, accuracy requirements (1% or 2%), etc.?
5. Operating temperature range?
6, the shell material (stainless steel, copper, copper nickel plating, aluminum, ABS, PVC, epoxy resin, etc.)?
7. The specific size of the shell?
8, wire material and length (common wire PVC, silica gel, line),
9. How to deal with the end of the wire (hanging tin or connector)?
