| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP404 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Brassy |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Micro Medical Temperature Sensor,Pi Max 0.5mm Medical Temperature Sensor,Pi Max 0.5mm Ntc Thermistor |
||
Brief Instruction:

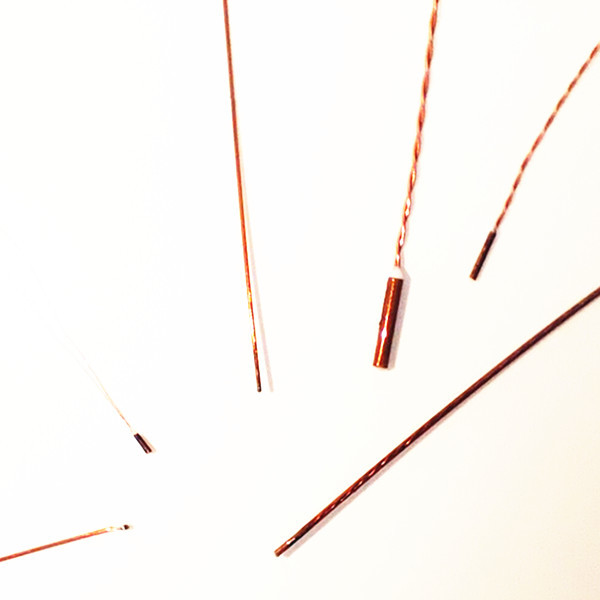

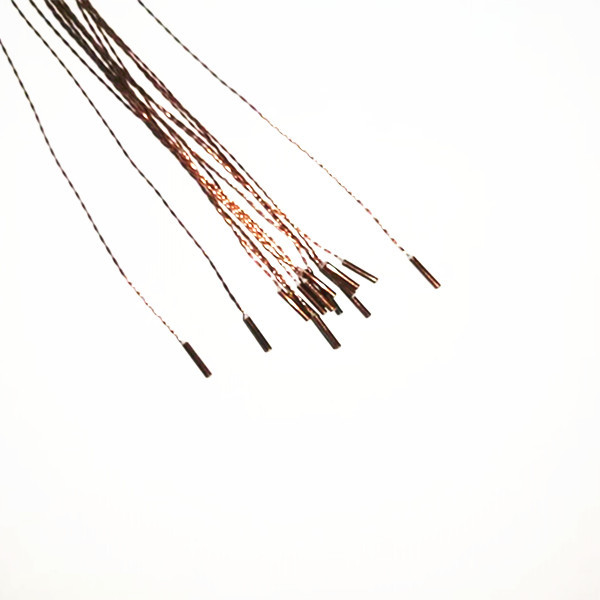

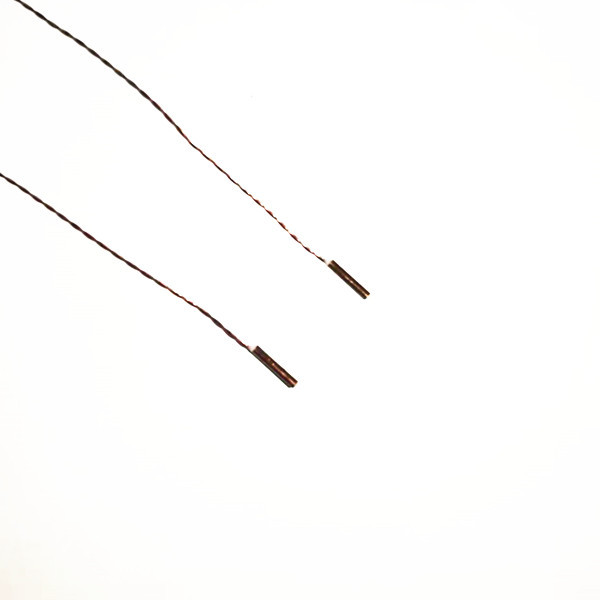

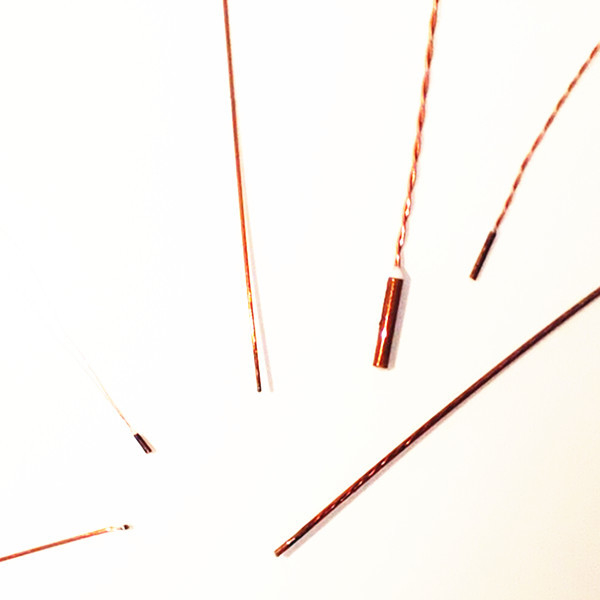

The product is a micro medical temperature sensor NTC thermistor. After welding the micro chip, the outer diameter of the polyimide tube Maxφ0.5 package, the inner casing is filled with epoxy and the outer diameter of the lead is OD0.12*2 enamoured wire.
Features:
ROHS environmental protection
Miniaturization
Quick response
Using temperature range 0℃~60℃
Measurement accuracy 25℃~45℃ ±0.1℃
R37=14.054KΩ±0.5%
B25/85=3435±1%
Application:
It can be used for catheterization, cardiothoracic surgery, laboratory animal research, etc
Structure and Dimensions:(Unit:mm)
Due to the large fluctuation of raw materials, the price of each of our products cannot be accurately displayed in front of customers, so we only mark a symbolic price. If you are very interested in our products, please leave a message or call us, we will give you a quotation in the first time.
