| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP404 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Brassy |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Pi Max 1.0mm Medical Temperature Sensor,Medical Micro Temperature Sensor,IP64 Micro Temperature Sensor |
||
Brief Instruction:

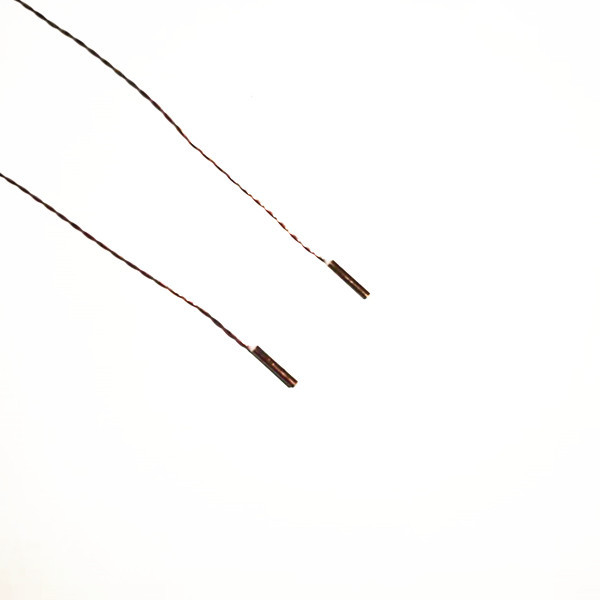

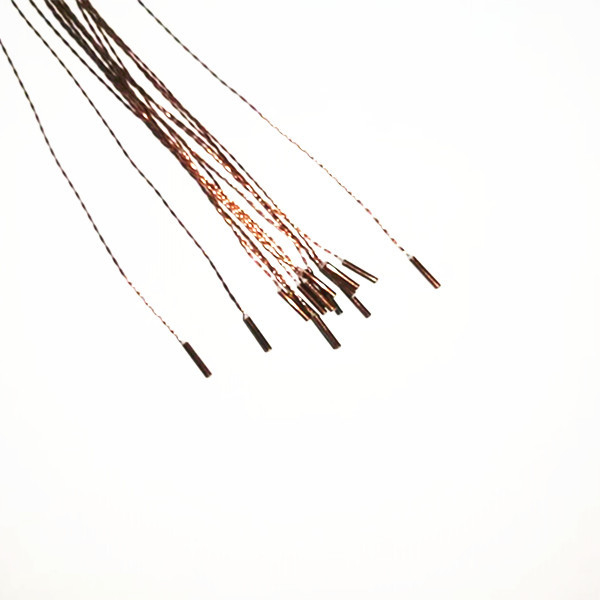

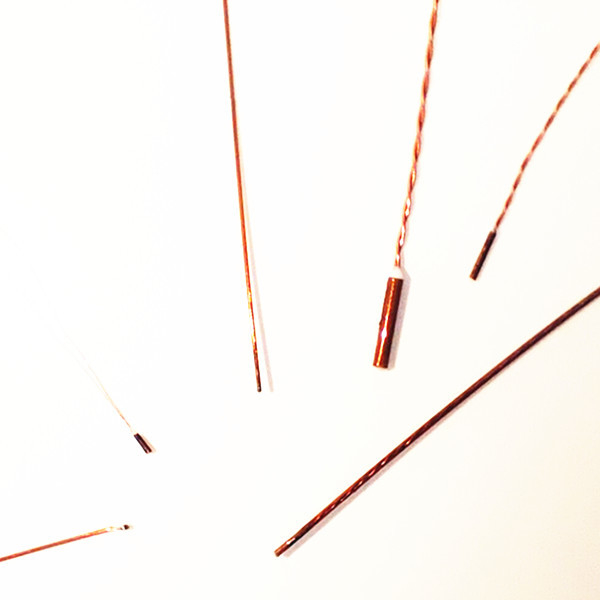

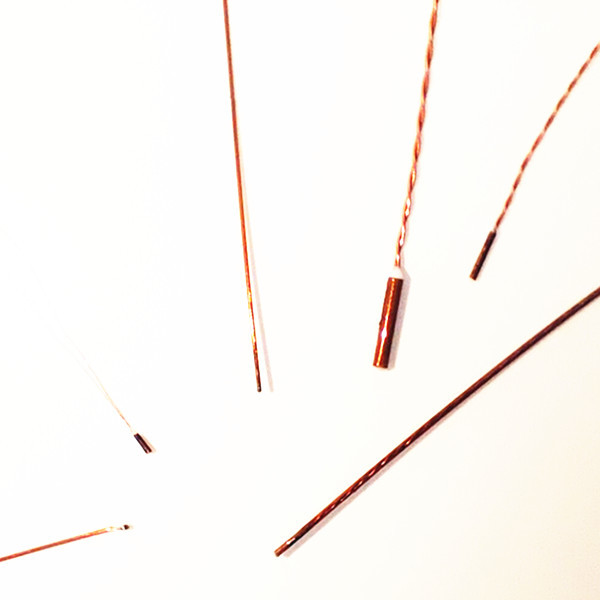

The product is a micro medical temperature sensor NTC thermistor. After welding the micro chip, the outer diameter of polyimide tube Maxφ1.0 package, the inner casing is filled with epoxy, and the lead wire is enamels with outer diameter OD0.12*2.axφ1.0
Features:
ROHS environmental protection
Miniaturization
Quick response using
Temperature range 0℃~60℃
Measurement accuracy 25℃~45℃ ±0.1℃
R25=2.252kΩ(±0.1℃)
B25/85=3976±0.5%
Application:
It can be used for catheterization, cardiothoracic surgery, laboratory animal research, etc
Structure and Dimensions:(Unit:mm)
