| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Color Can Be Customized |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Medical Monitoring NTC Temperature Sensor,IP64 NTC Temperature Sensor,Micro Plug Medical Temperature Sensor |
||
Micro Plug Body Surface NTC Temperature Sensor For Medical Monitoring Equipment
Brief Instruction:
Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, micro plug or custom connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ.
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
It has certain waterproof and dustproof ability
Resistance value is different, the corresponding temperature is different, the display temperature can be adjusted
Measuring the air temperature of the normal environment, sensitive response, waterproof, widely used in medical equipment, medical monitor
Can measure the body surface temperature
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | |
| 2 | Probe | SUSφ2*9.5 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | PVC 28AWG OD2.0 Shielded round sheath wire | 1 | gray |
| 5 | Plug | MICRO | 1 | gray |

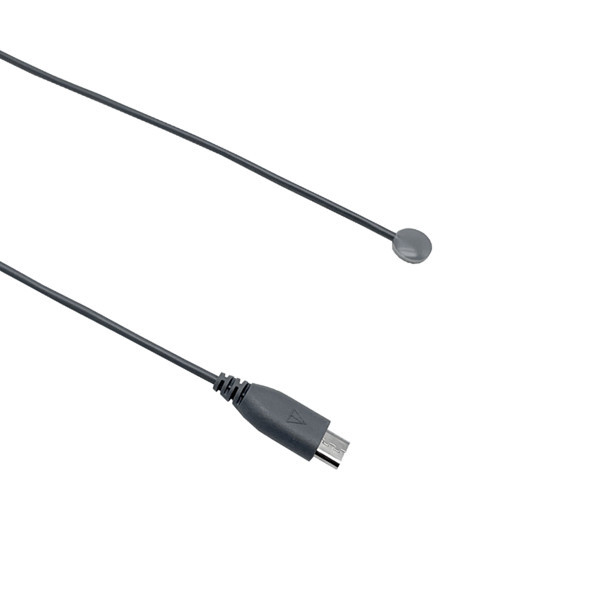

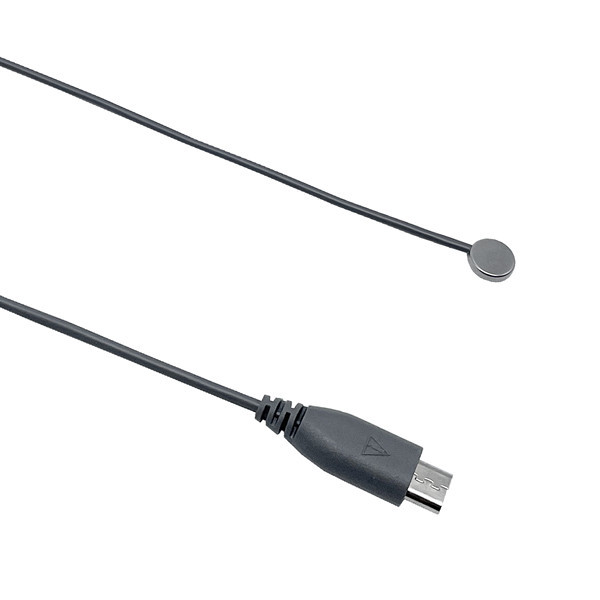

product picture/images:
Standard packing (inner packing): 1 pcs/polybag
