| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Black |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Skin Surface Disposable Temperature Probe,Skin Surface Disposable Temperature Sensor,Disposable Temperature Probe IP64 |
||

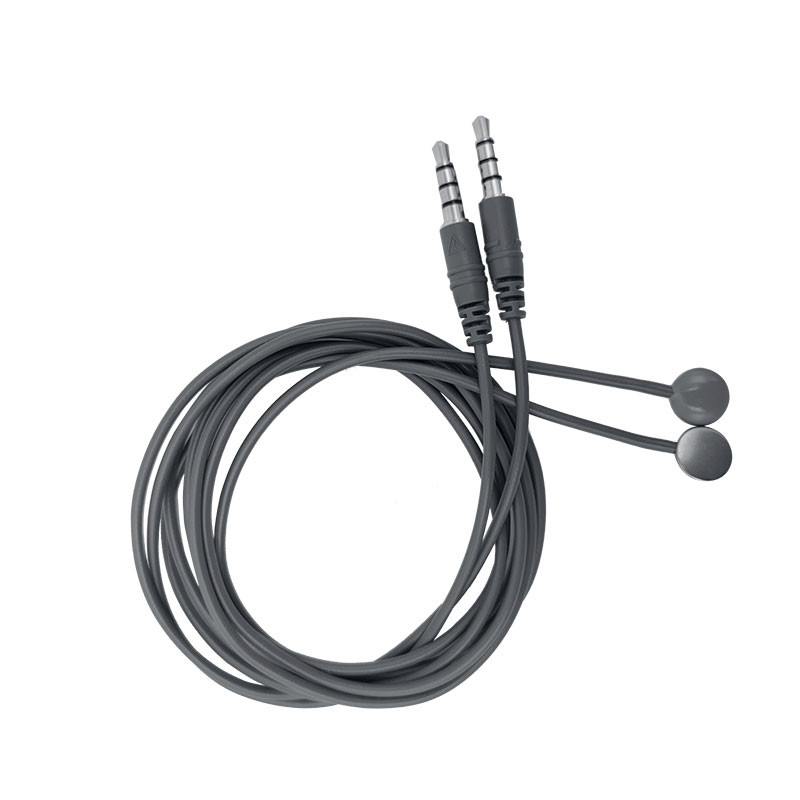

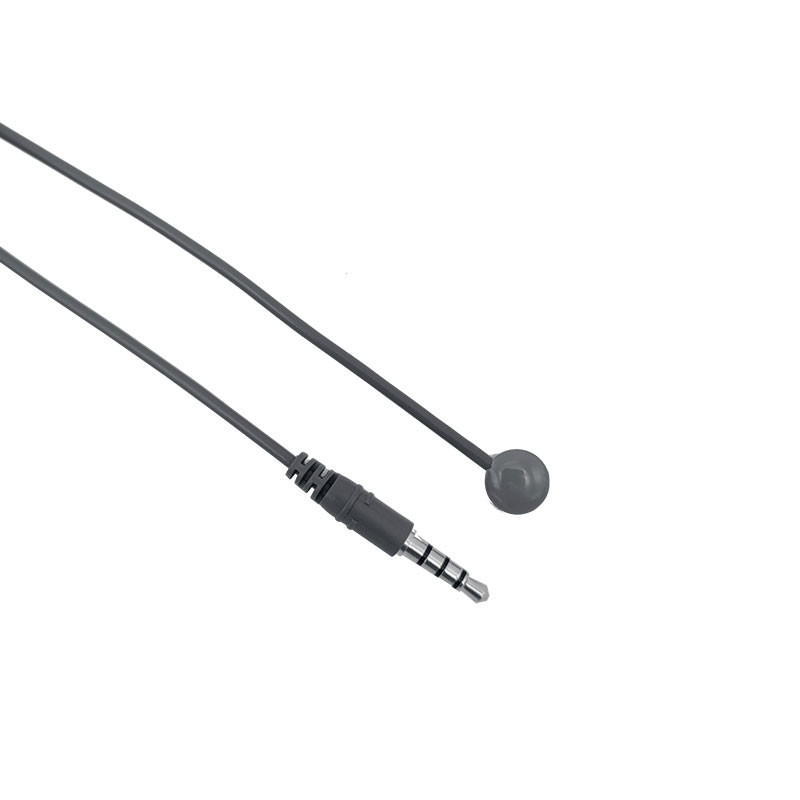

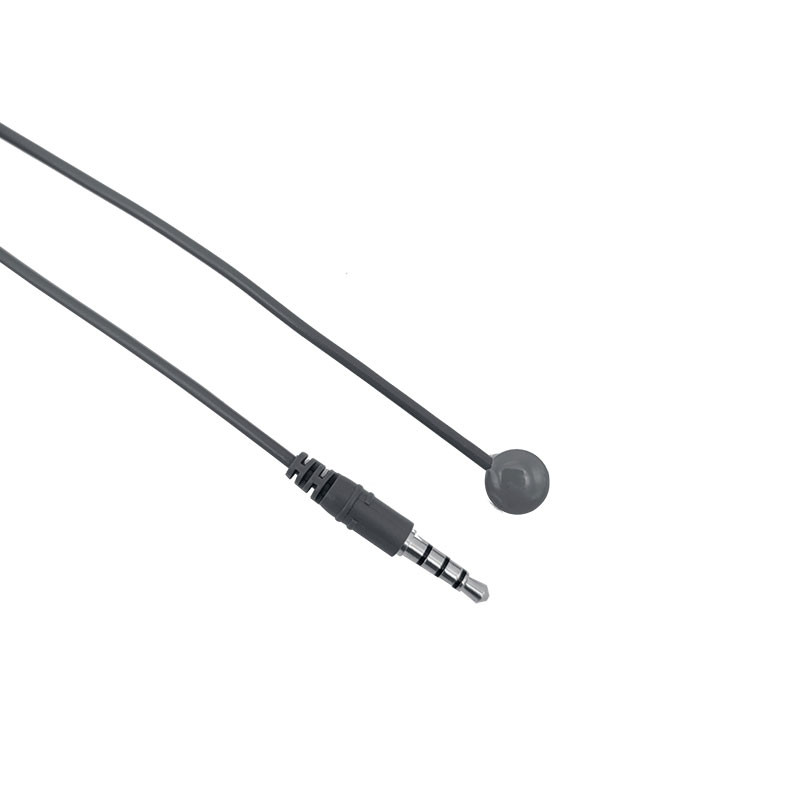

Skin Surface Disposable Temperature Probe Sensor Mono 9.5mm Jack Connector Audio Cables
Brief Instruction:
The audio plug skin disposable temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk.The rated resistance value 2.252KΩ. Total length is 0.8Meters, and the sensor measuring tolerance within ±0.1℃.
Features:
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
R25℃=2.252kΩ
B25/50=3935k
3.5The audio plug
Application:
Applicable to medical monitors
Structure and Dimensions:(Unit:mm)
Product features
1: The use of new technology, stable product performance, long-term work. (Annual resistance drift rate ≤1%)
2: Resistance value and B value of high precision, good consistency, interchangeable. (The accuracy of resistance value and B value can reach ±0.5% respectively)
3: High sensitivity and reaction. (Temperature coefficient of resistance up to - (2~5) %/℃)
4: Double sealing process, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability.
5: Can be packaged according to the installation conditions used, easy for users to install.
6: can be made into high dissipation products, test current can be much higher than the traditional structure of the sensor, simplify the test circuit.
