| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | JP403 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | Room Temperature Or Air Conditioning Temperature |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Medical Rectal Temperature Probe,Medical Temperature Sensor 2.252k,Disposable Rectal Temperature Probe |
||

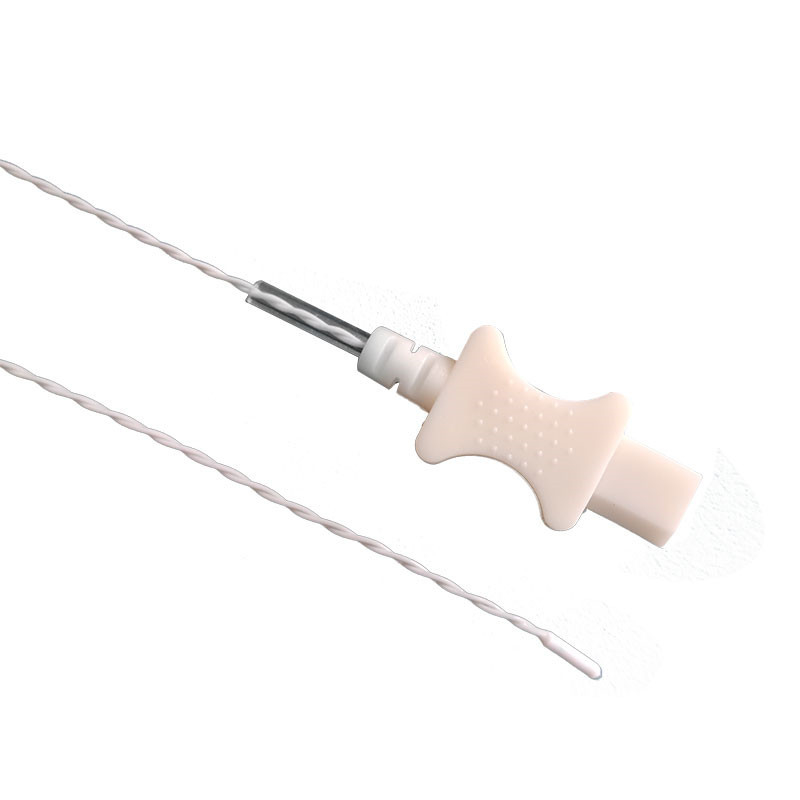

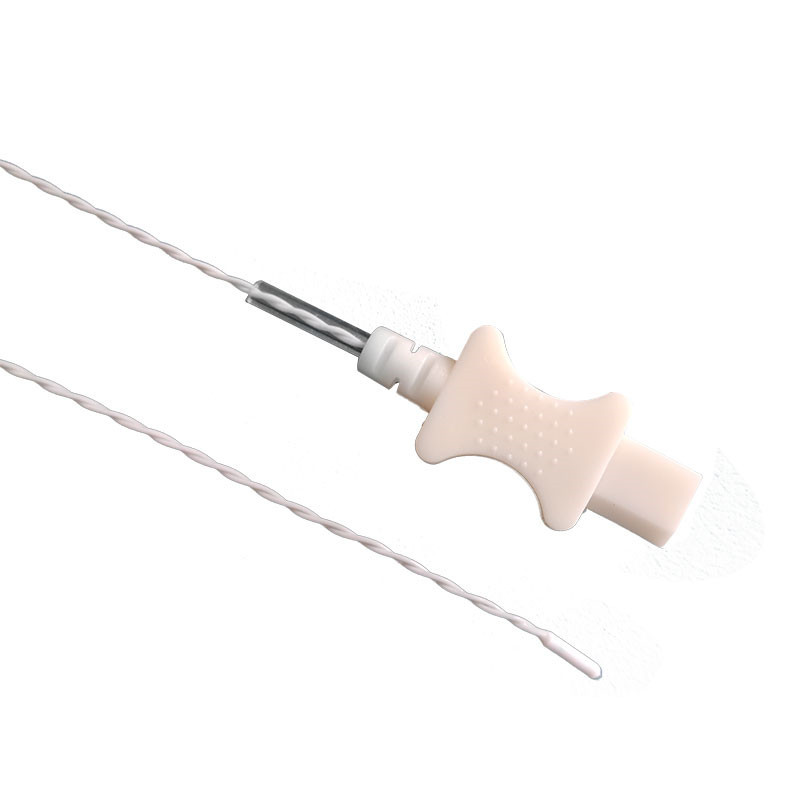

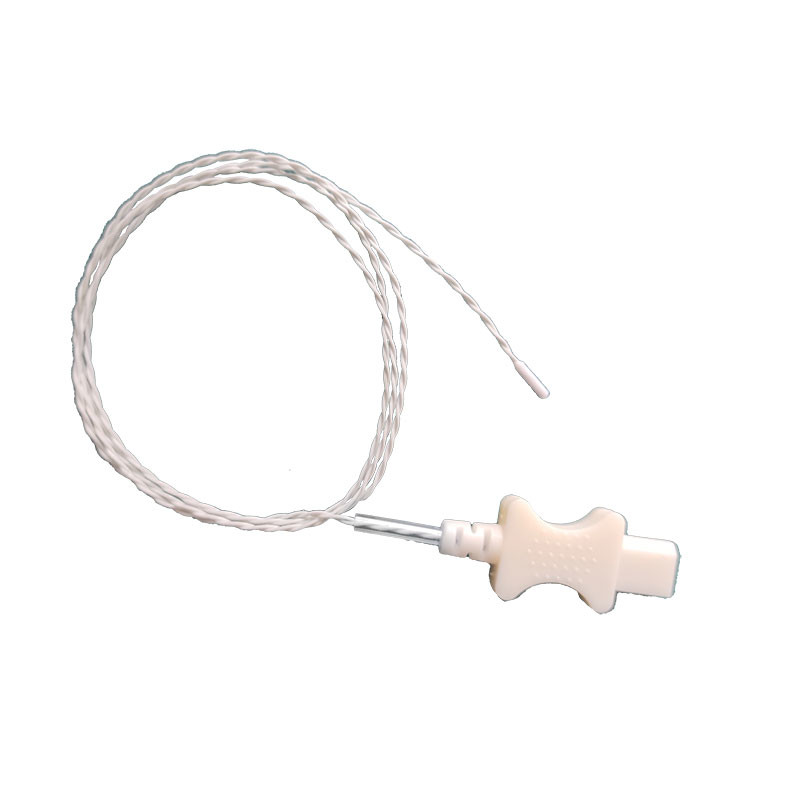

2.252k Disposable Medical Rectal Temperature Probe Esophageal Temperature Sensor
Product Introduction
This product is widely used for body cavity temperature measurement after adding medical catheter, and can also be used for body surface temperature measurement with medical foam paste. The sensor probe is plastic case package, and the nominal resistance value of the product is 2.252 kω. The total length of the product is generally 0.3 ~ 0.9 meters, and the measurement error is (25~45) ℃±0.1℃.
Product Features
One time use
The measurement accuracy is high (25~45) ℃±0.1℃
Operating temperature range 0℃~50℃
R25℃=2.252kΩ
B25/50=3935k
The Product Application
It is suitable for emergency, intensive care unit, operating room and so on
The patient's temperature was monitored continuously.
Product Structure and Dimmension(Unit:mm)
Product features
1: The use of new technology, stable product performance, long-term work. (Annual resistance drift rate ≤1%)
2: Resistance value and B value of high precision, good consistency, interchangeable. (The accuracy of resistance value and B value can reach ±0.5% respectively)
3: High sensitivity and reaction. (Temperature coefficient of resistance up to - (2~5) %/℃)
4: Double sealing process, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability.
5: Can be packaged according to the installation conditions used, easy for users to install.
6: can be made into high dissipation products, test current can be much higher than the traditional structure of the sensor, simplify the test circuit.
