| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP400 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-6Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Shipping: | Shipping, Air, Or Express | Model: | MF5A-7 |
|---|---|---|---|
| Resistance: | R25℃=2.252kΩ | Beta Value: | B25/50=3935K |
| Accuracy: | ±0.1℃ | Tube: | PVC OD(2.85-0.1) * (15±3） |
| Wire: | Stranded Wire 28AWG 1/0.3TS OD0.58 | Size: | 13Fr |
13Fr R25℃ 2.252KΩ Medical Temperature Probe
Product Description:
The 13Fr R25℃=2.252KΩ Medical Temperature Probe is a specialized medical device used to measure temperature in a clinical setting. Let's break down the specifications:
13Fr: This refers to the size of the catheter, specifically its diameter. The "Fr" unit is commonly used in medicine to measure the outer diameter of catheters and other medical instruments. The exact numerical value of the diameter may vary depending on the specific manufacturer or model.
R25℃: This term indicates the reference resistance of the temperature probe at 25 degrees Celsius (°C). In this case, the reference resistance is 2.252 kilohms (KΩ). The reference resistance is the resistance value of the probe at a standardized temperature, which is often used as a baseline for calibration and measurement.
So, the temperature probe has a reference resistance of 2.252KΩ at 25°C, which provides a baseline for temperature measurement. By measuring the actual resistance of the probe, the temperature can be inferred using appropriate calibration curves or algorithms specific to the device.
Overall, the 13Fr R25℃=2.252KΩ Medical Temperature Probe is designed for accurate temperature monitoring in medical procedures, providing resistance-based temperature measurements calibrated to the reference resistance at 25°C.
Features:
R25℃=2.252
B25/50=3935K
Length: 400±15mm
Tube: PVC OD(2.85-0.1)*(15±3)
28AWG 1/0.3TS OD0.58 stranded wire 200℃
Application:
10Fr 2.252K Medical Temperature Probe is widely used to measure the cavity temperature of human body.
Structure and Dimensions:(Unit:mm)
Parameter Sheet:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

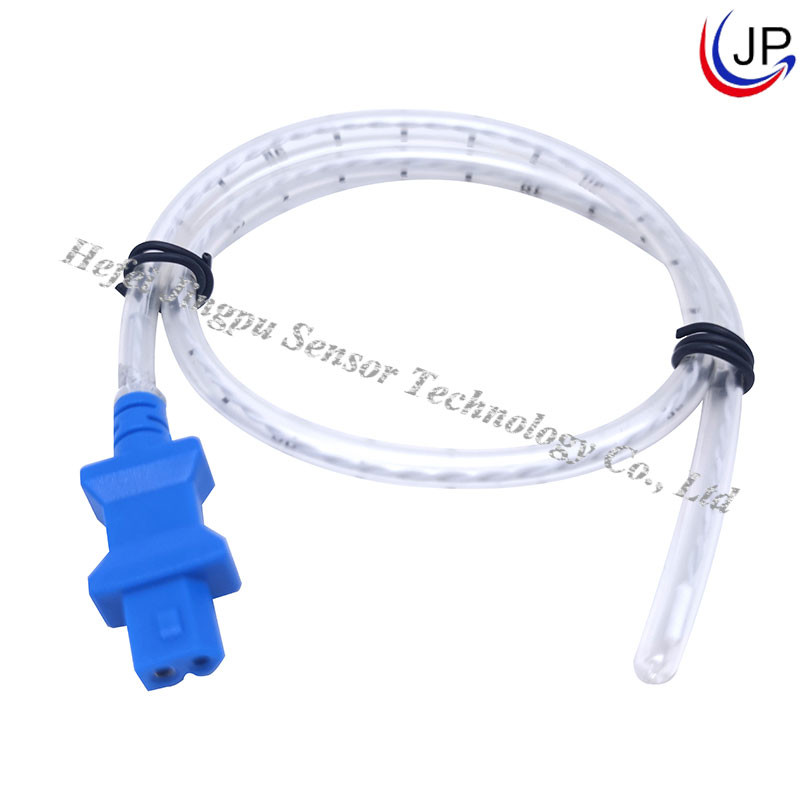

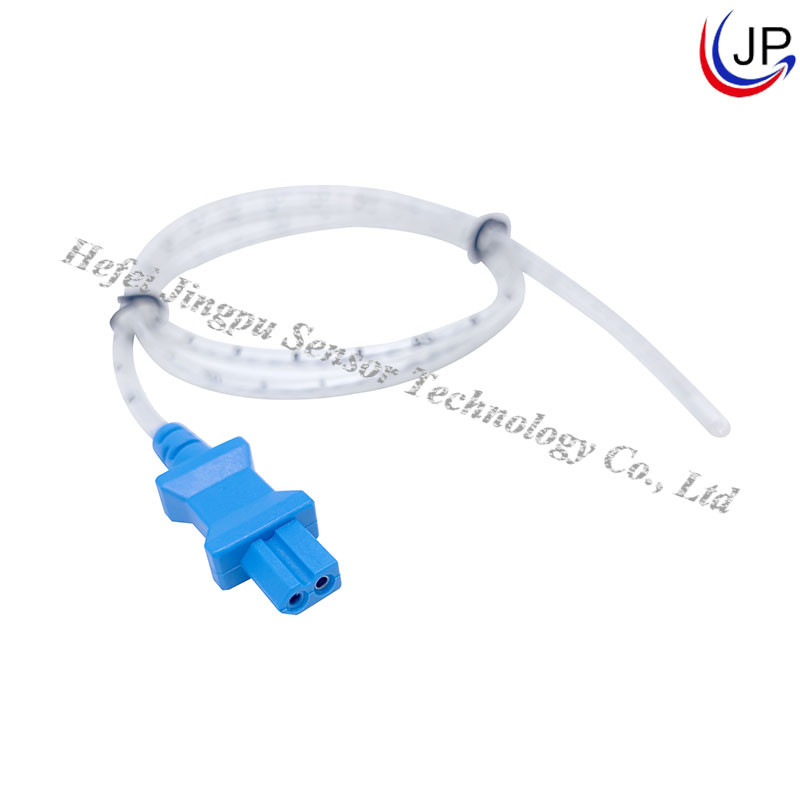

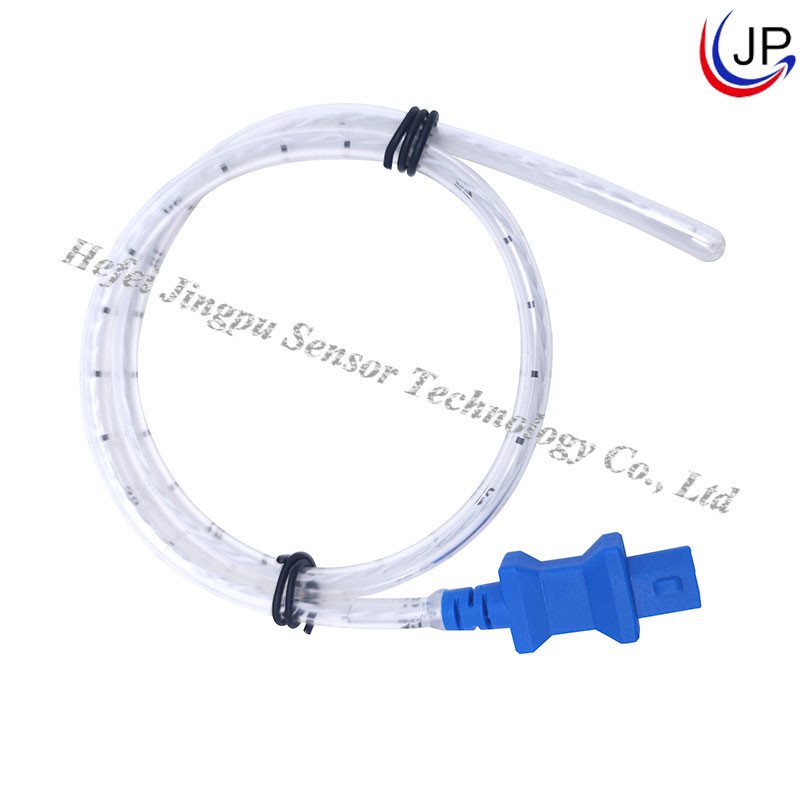

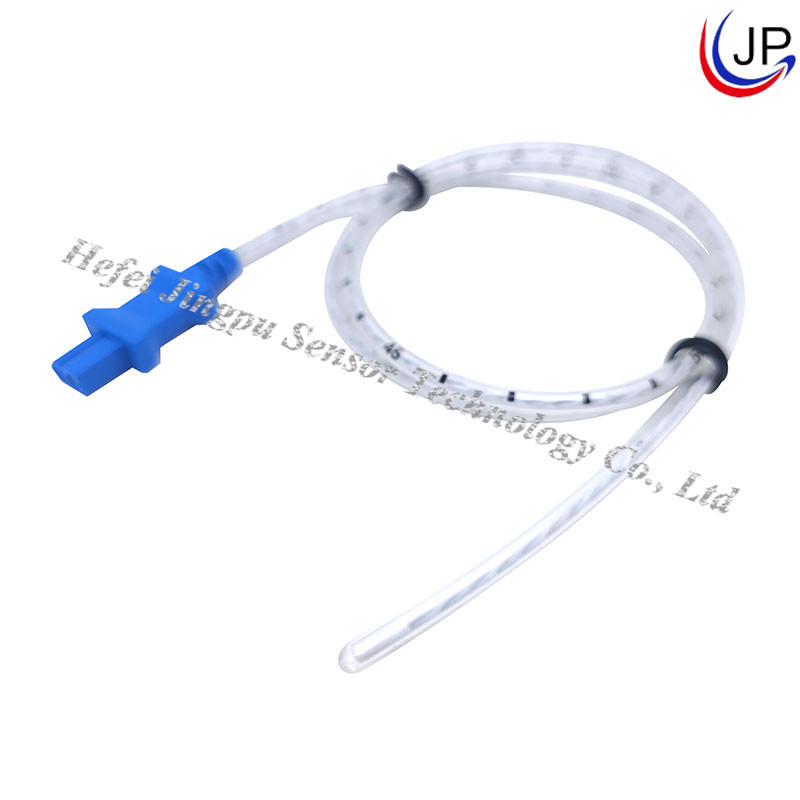

Product Images:
